Note:
Only operate the GG 12 with the voltage supply unit
provided or other PROXXON voltage supply units
(NG 2/E or NG 5/E).
Technical data:
Permanently excited DC motor for 12 - 18 volt
Power rating: max. 25 watt
Nominal current consumption: 0.5 A
Ball bearings
Radial fan for forced cooling
Idle speed: 20,000 rpm
Micro-switch (button) in handle
Housing made of glass-fibre-reinforced polyamide
Power lead (helix cable) with non-interchangeable plug,
approx. 100 cm long
Isolating transformer
Only for indoor use
Fuse
Double insulation
Important: Only for bits with 2.35 mm (3/32’’)-shaft!
Clamp shaft with pliers and insert into the mount to the
stop (see Fig. 1).
Never overload the tool by pressing too hard. Always
remember that power is provided by the rotational
speed and not the contact pressure.
Working with the tool:
Switch on the tool and hold like a pen with a gentle
grip. Rest the lower half of your arm on the table or
against your body. After some practice, we recommend
that you work with templates (available in shops).
Simply adhere these to the rear of the glass with
adhesive tape. Always make the outline first. Use the
diamond abrasive pencils to do this. Then create matt
surfaces with the silicon-carbide pencils.
W ar ning:
While working dangerous dust can be emitted!
Never work without wearing googles and dust mask.
Always remember:
Practice makes perfect. At the beginning, use simple
types of glass (panes or cylindrical glass). Use dark
materials underneath to give a better contrast.
Operating speed for the supplied assessories:
The following table shows you the recommended
speed for different accessories, supplied from
PROXXON.
Only use accessories and spare parts recommended
by PROXXON (Observe the max. permitted rotational
speed).
recommended maximum
speed speed
Carborundum grinding bits 20.000rpm 100.000rpm
Diamond grinding bits 20.000rpm 300.000rpm
W ar ning!
Never use brass brushes !
Maintenance
W ar ning!
Disconnect the plug from the mains before performing
any maintenance or cleaning work.
After use
Clean the unit thoroughly, removing all grinding dust
with a brush or a soft cloth. Ensure all ventilation slots
are free from obstruction. Do not allow brake fluids,
gasoline,or penetrating oils to come in contact with the
plastic parts.They contain chemicals that can damage
or destroy plastics!
Always follow the instructions of the manual!
Any attempt to repair or replace electrical parts on this
tool may create a hazard unless repair is done by a
qualified service technician.
Repair serviceis available at your PROXXON service
center (You find the address at the back of this
manual).

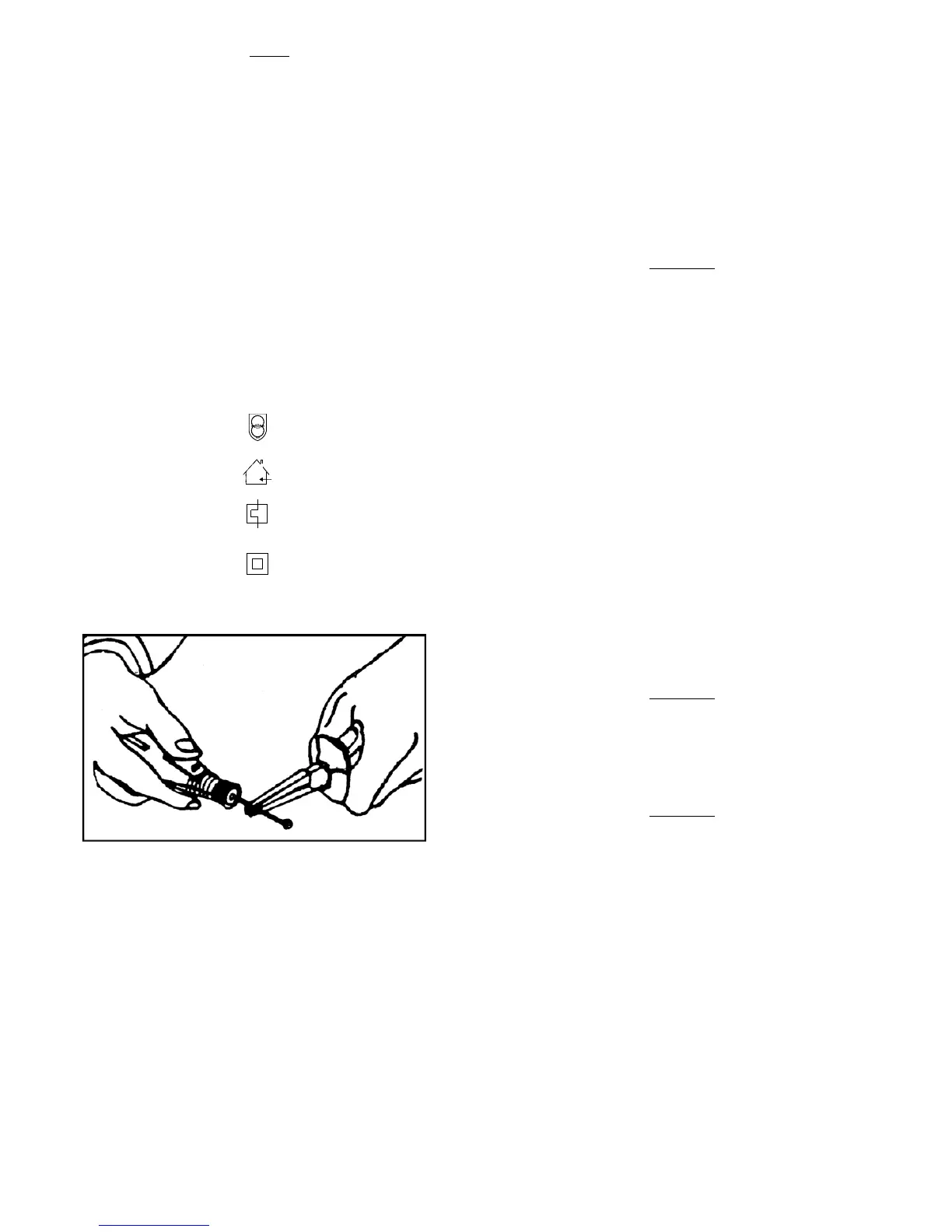

Fig. 1
