INSTALLATION AND OPERATION MANUAL
ADVANCED OXIDATION PURIFICATION
ECO MASTER
Preparing For Installation
1. For best results, drain the spa and ll with fresh water.
If not, refer to chart for recommended levels.
2. Check for and correct all leaks in the plumbing.
3. Check electrical system. Verify voltage is the same as
prescribed on the side of the Eco Master.
4. Check lters. Clean or replace as necessary.
5. Balance the pH.
6. Shock the spa. The use of Calcium Hypochlorite is
recommended.
7. Eco Master contains an ozonator, injector, and check
valve. Remove any vacuum source (such as an
injector) already installed on the spa.
pH 7.2 - 7.6
Alkalinity 80 - 120 ppm
TDS < 1,000
Cyanuric Acid 30 - 70 ppm
Free Chlorine 0.5 - 1.5 ppm
Calcium Hardness 60 - 400 ppm
Metals 0 ppm
Nitrates/Phosphates < 30 ppm

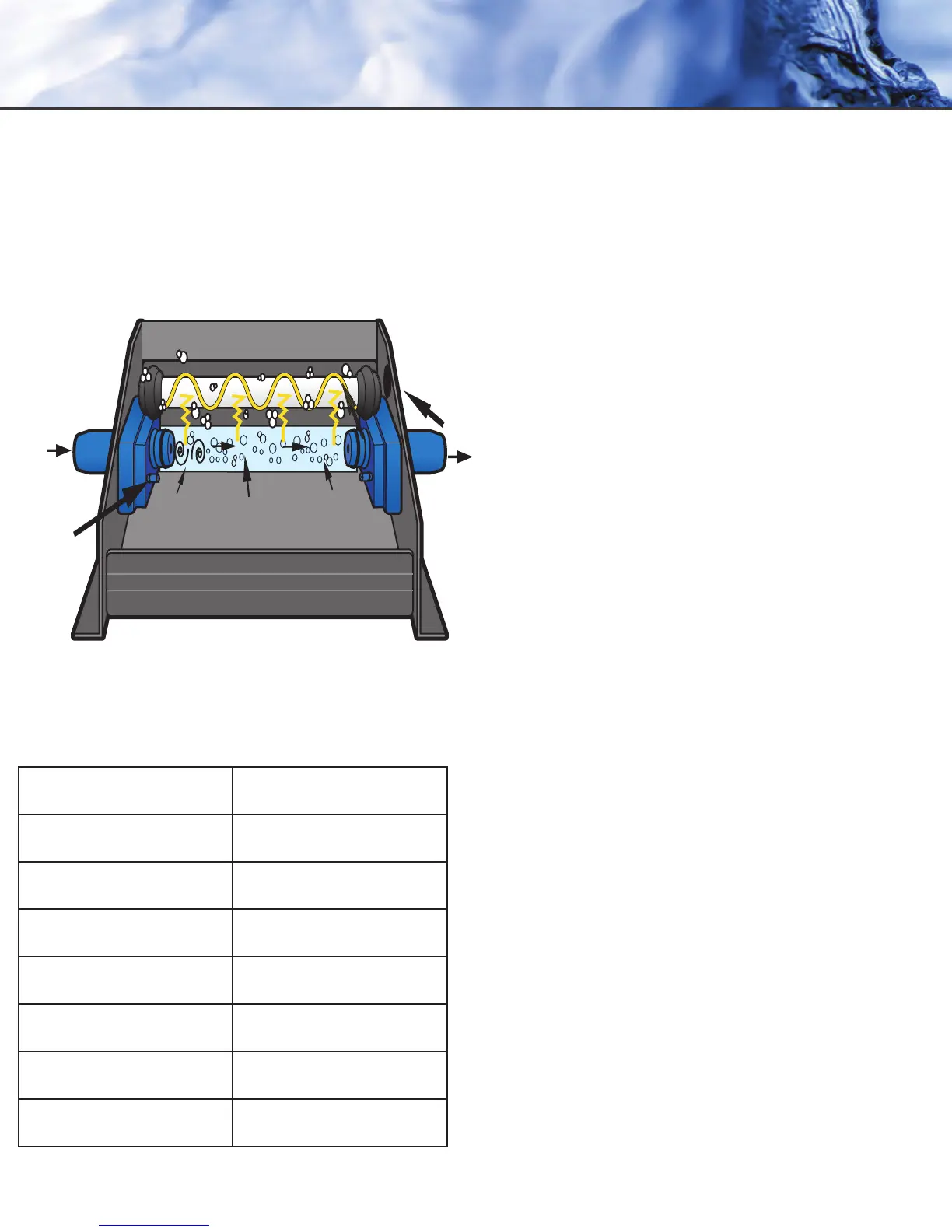

Contaminated
Water Enters
Quartz Mixing Chamber
(3)
Ozone and Hydroxyls
Enter Venturi Injector
(2)
Air Enters Chamber
converting O
2
to O
3
and Hydroxyl Radicals
(1)
Ozone Mixes
With Water
(Oxidation)
(3)
Water is Irradiated By
UV-C (UV Sanitation)
(4)
Ozone is Irradiated in
Water by UV
(Advanced Oxidation)
(5)
Air Is Blasted With Hybrid UV-C and VUV
Sanitized Water
Exits the Unit
cutting edge Germicidal UV sterilization in one
compact system, to generate Ozone and Advanced Oxidation Processing (AOP).
Hybrid lamp with Prozone’s Eco Master combines its patented
How the Eco Master Generator Works
2
(1) Air enters unit where the Hybrid lamp converts it to
Ozone (O
3
) and Hydroxyl Radicals (OH-)
(2) Water enters unit through the Dynamic Venturi Injector
drawing Ozone and Hydroxyl Radicals from the Hybrid
lamp chamber
(3) Static mixer combines water, ozone, and hydroxyls
in a scrambled ow
(4) Water is irradiated by Germicidal UV which converts
Ozone to Hydroxyl Radicals through Advanced
Oxidation Processing (AOP)
(5) Contaminants are destroyed by intense Germicidal UV,
Ozone, and Hydroxyl Radicals, using up all the Ozone
and adding ORP to the Water
To Next Page
