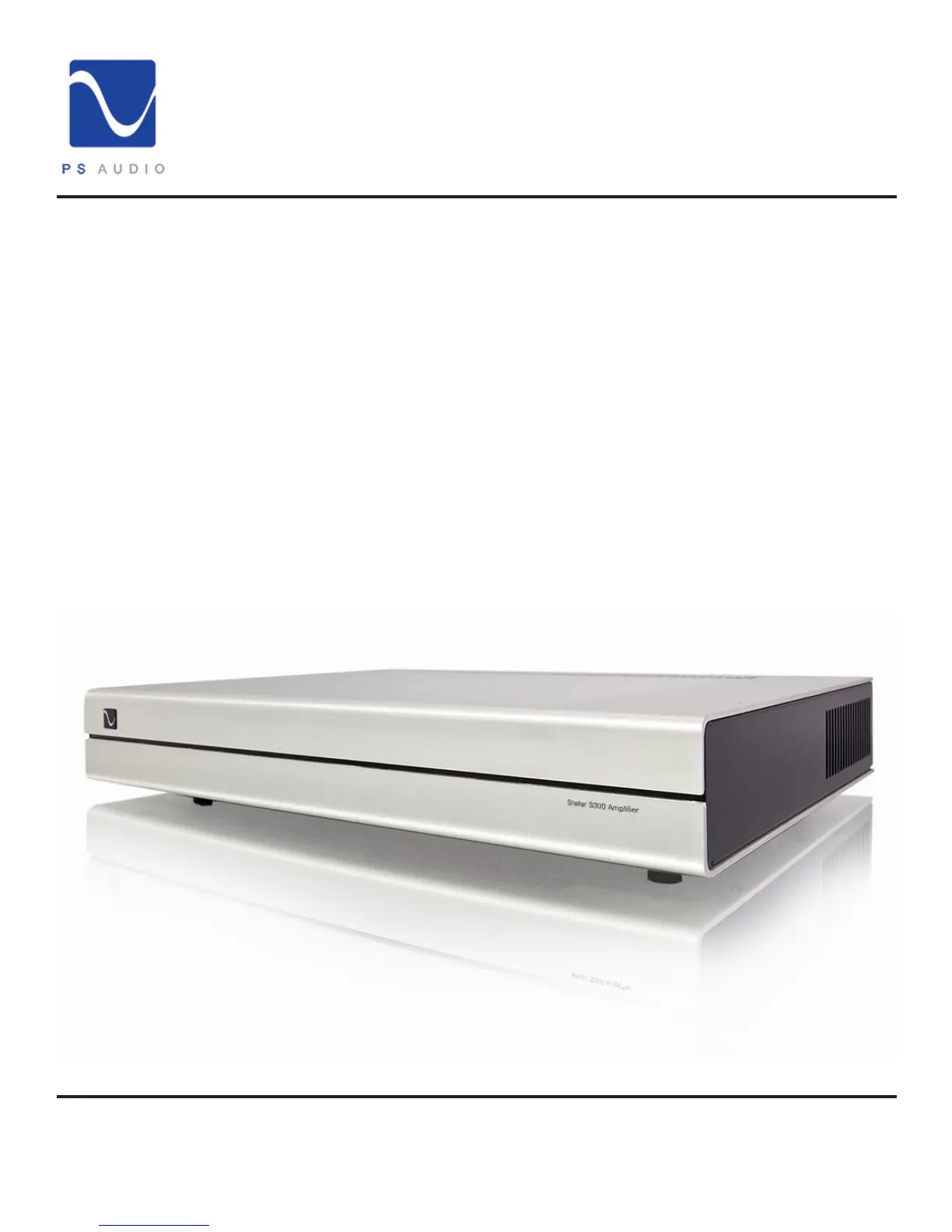

4826 Sterling Drive, Boulder, CO 80301 Owner’s Reference
PH: 720.406.8946 support@psaudio.com www.psaudio.com 15-076-01-1
Rev A
Owner’s Reference
©2017 PS Audio Inc. All rights reserved.
®
Owner’s Reference Stellar S300 and M700 Amplifiers
5
Logo Button
Indicators
There are four conditions for the Stellar Amplifier:
The Logo Button is not illuminated. The unit in Output Disable Mode.
The Logo Button is fully illuminated. The Stellar is powered on and ready.
The Logo Button is flashing slowly. This is the boot sequence. The Logo Button will flash slowly for
10 seconds during power up. Then the Logo Button will become steady.
The Logo Button is flashing quickly. Then the unit powers off. This is the fault mode. The Logo
Button will flash quickly for 5 seconds and the unit will power down. Read more about Fault Protect
Mode in the troubleshooting section.
3. Flashing Slow
- Booting
1. Off
2. On - Ready
4. Flashing Fast
- Fault Protect
Mode
