Owner’s Reference Stellar S300 and M700 Amplifiers
1
Stellar S300 Stereo Amplifier

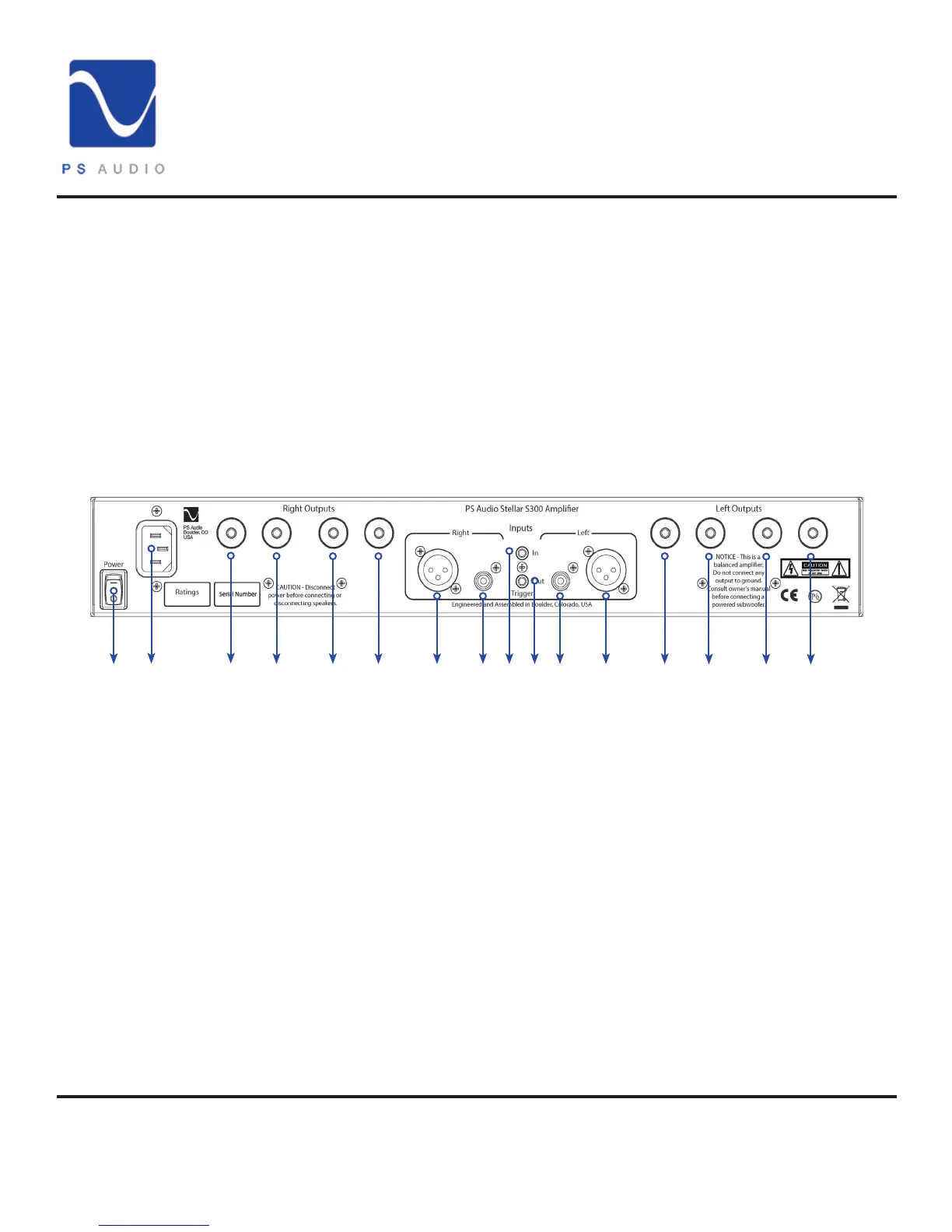

Rear Panel View
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Main Power Switch
AC Power Input
Negative Right Speaker Output
Positive Right Speaker Output
Negative Right Speaker Output
Positive Right Speaker Output
Balanced Right Input
Single Ended Right Input
Balanced Left Input
Single Ended Left Input
5 Volt - 12 Volt Trigger Input
5 Volt - 12 Volt Trigger Output
Negative Left Speaker Output
Positive Left Speaker Output
Negative Left Speaker Output
Positive Left Speaker Output
