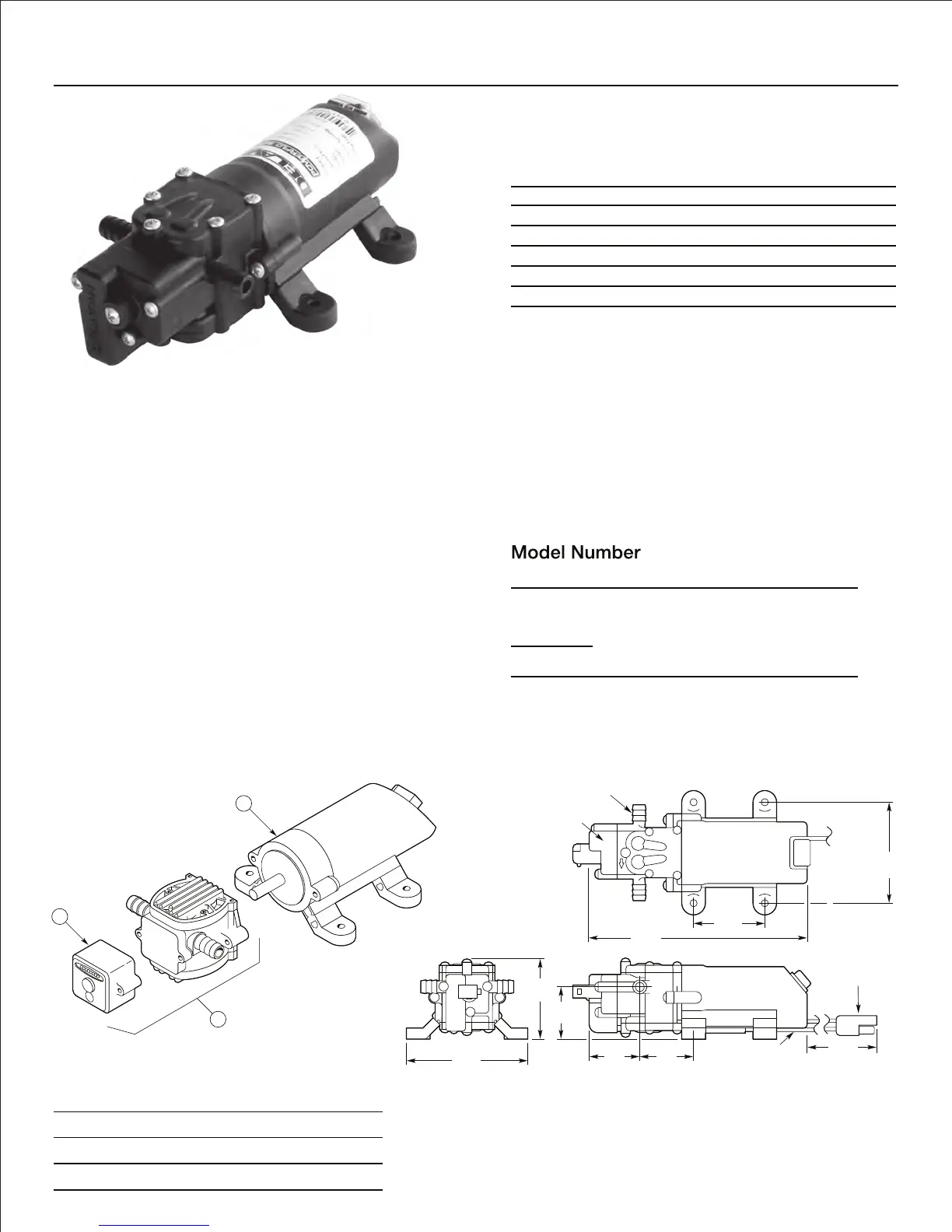

PSE LG 05 SS - Pump Specifications and Operation; Pump Performance; Pump Specifications; Pump Ordering Information

PowerFLO
™
2200 Series
3
1
2
Dimensions
Inches (mm)
Specifications
Motor
Type: 12 VDC, permanent magnet, thermally protected,
splashproof
Leads:
2200-2 Model: 18 AWG, 4.5” long w 2-pin connector
Duty Cycle: Intermittent
Pump
Type: 2-chamber positive displacement, self priming,
capable of being run dry
Liquid Temperature: 110°F (43°C) Max.
Priming Capabilities: 4 feet (1.2 m) suction lift
Max Pressure: 40 PSI (2.8 bar)
Pressure Demand Switch:
Shut-Off: 40 ±5 PSI (2.8 ±0.3 bar) factory setting
Turn-On: 25 ±5 PSI (1.7 ±0.3 bar) factory setting
Inlet/Outlet Ports: Quick Disconnect
Weight
1.25 lbs (0.57 kg)
Performance
Materials of Construction
Motor Housing: Nylon 6/6
Pump Housing: Polypropylene
Valves: Viton
Diaphragm: Santoprene
Fasteners: Stainless steel and zinc plated
Pressure/Flow/Amp Draw
PSI Bar GPM LPM Amps
0-3 0.2 1.00 3.7 1.5
10 0.7 0.85 3.1 1.9
20 1.4 0.71 2.6 2.1
30 2.1 0.61 2.3 2.4
40 2.8 0.42 1.6 2.6
Parts List
Ref
Part
# Description
Number
1 Switch Asssembly
5157201
2
Pump Head w Switch Asssembly
5275064
3
Motor with connector, no switch
P39-045B
2.25
(57)
6.89
(175)
1.66
(42)
2.55
(65)
3.94
(100)
1.58
(40)
1.73
(44)
4.5
(114)
Pressure
Demand Switch
3.19
(81)
Quick Disconnect Ports
2-Pin Connector
18 AWG Leadwires:
Blk – Negative
Red – Positive
Ordering
Item # Description
2200-201
1 GPM Demand Pump, Viton Valves,
Santoprene Diaphragm, 40
PSI, Quick Disconect Ports
2-pin molded connector
