www.PyleUSA.com
4
Insert your receiver/amplier's positive (+) wires into the positive terminals, and
negative (-) wires in the negative terminals.
Notes:
lf your receiver/amplier has more than one set of speaker terminal (A and B),
connect only one or the other to the control center.
• For the best results, we recommend 14-gauge, two conductor speaker wire
(not supplied) for most connections. If you plan to locate the speakers further than
80 feet from the control center, use a heavier gauge of wire.

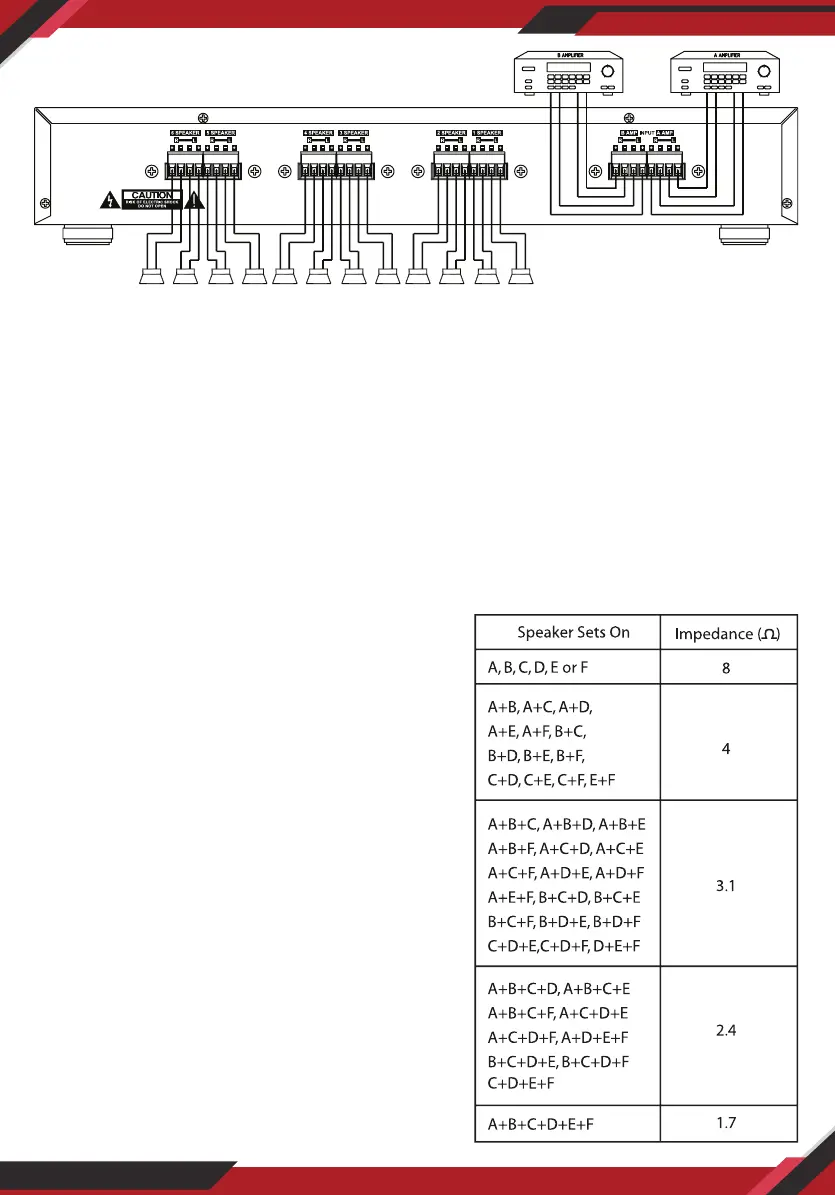

IMPEDANCE CHART
Impedance is a measurement of the load
placed on your receiver/amplier by the
speakers. The load placed on your receiver/
amplier from the control center will vary
depending on how many pairs of speakers
you turn ON at one time, and on which
speakers you turn ON.
The chart below shows the impedance for
all possible combinations of 8-ohm speakers.
