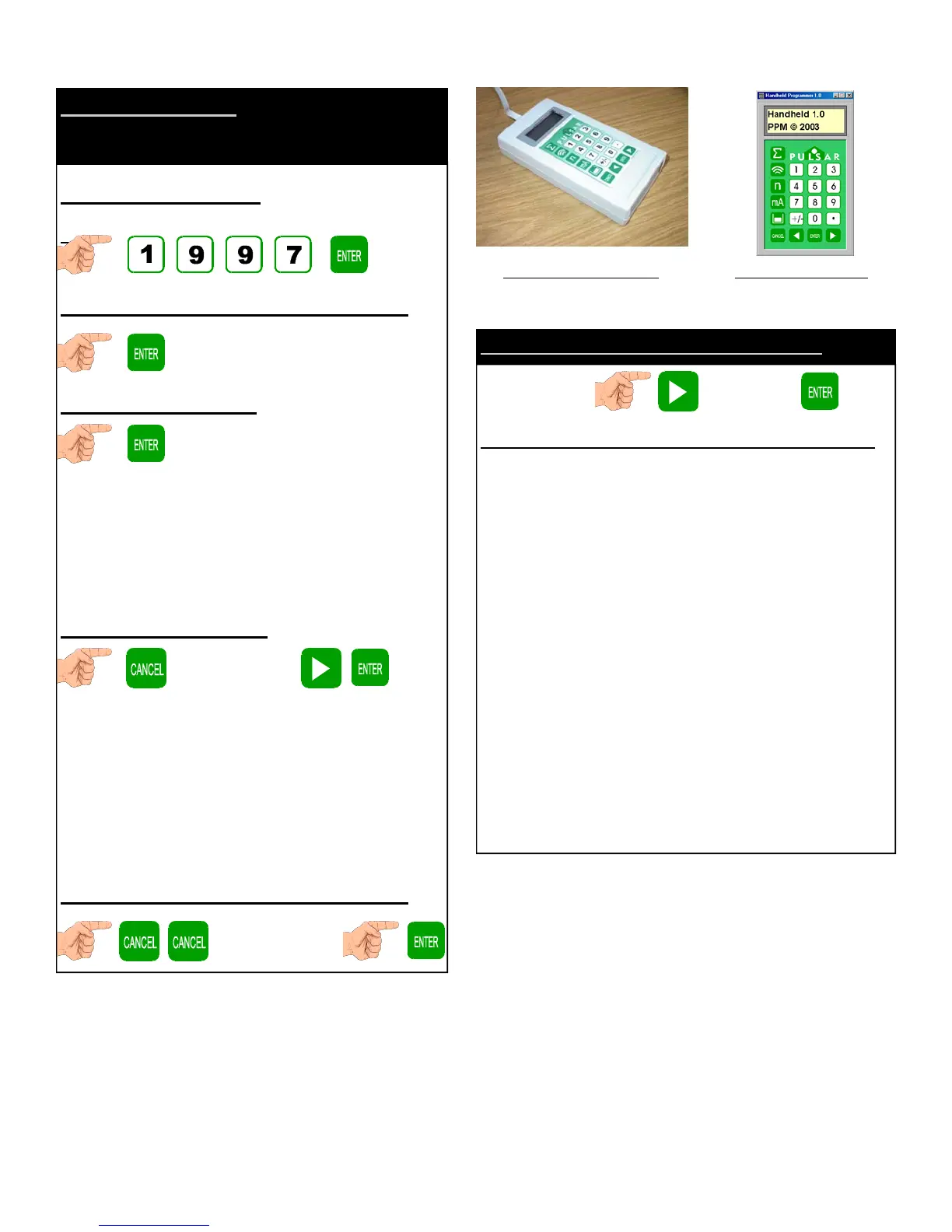

PROGRAMMING
(using either Keypad, Handheld Programmer, Handheld
Software, or Blackbox PC Software)
1. Enter Program Mode
( press and hold each button until the dash appears)
1.
2. Choose “Application” (pg. 41 in manual)
“Run Mode?”
To Program a Relay (pg. 44 of the manual)
Choose to program Relay 1 or scroll right to Relay 2 and Enter
Choose “Relay Type” (P210, 220)
0=Not in Use 1=Alarm (will de-energize ON, de-energize OFF)
Choose “Relay Function” (P211, 221)
0=Off 1=Level 2=Temp. 3=Loss of Echo 4=Loss of Clock
Choose “Relay Alarm ID” (P212, 222)
1=General 2=High 3=HiHi 4=Low 5=LoLo 6=In Bounds
7=Out of Bounds
Choose “Relay Setpoint 1” (P213, 223)
This is the ON setpoint.
Choose “Relay Setpoint 2” (P214, 224)
This is the OFF setpoint.
Read Only “Relay Closures” (P217, 227)
This tells you how many times the relay has activated.
Choose “Relay Fail Safe” (P218, 228)
0=Default 1=Hold 2=De-Energize 3=Energize
To program Relay 2, hit “Cancel” until you see “Relay 1”. Now
scroll to the right until you see “Relay 2”. Hit Enter and start
again from the top.
To go to Run Mode, follow Step 4.
4. Calibration is done, go into Run Mode!!!
Handheld Programmer Handheld Software
3a. Choose “Operation”
3b. Choose “Dimensions”
“Press “ENTER” after choosing each value and confirm by
seeing “SAVED”)
Choose “Mode of Operation (P100)”
1=Distance 2=Level 3=Space
Choose “Transducer (P101)”
1=dB3 2=dB6 3=dB10 4=dB15 5=dB25 6=dB40
(go up a level)
Choose “Measurement Units (P104)”
1=meters 2=cm 3=mm 4=feet 5=inches
Choose “Empty Level (P105)”
(distance from face of transducer to empty level (bottom of
vessel/pump station) - automatically sets 4mA)
Choose “Span (P106)”
(distance from empty level (bottom of vessel) to 100% level
- automatically sets 20mA)
“Application” “Relays”
