Pulsar DTS-i 180 UG III - Page 18

Dealer Development Center
36
Dealer Development Center
35

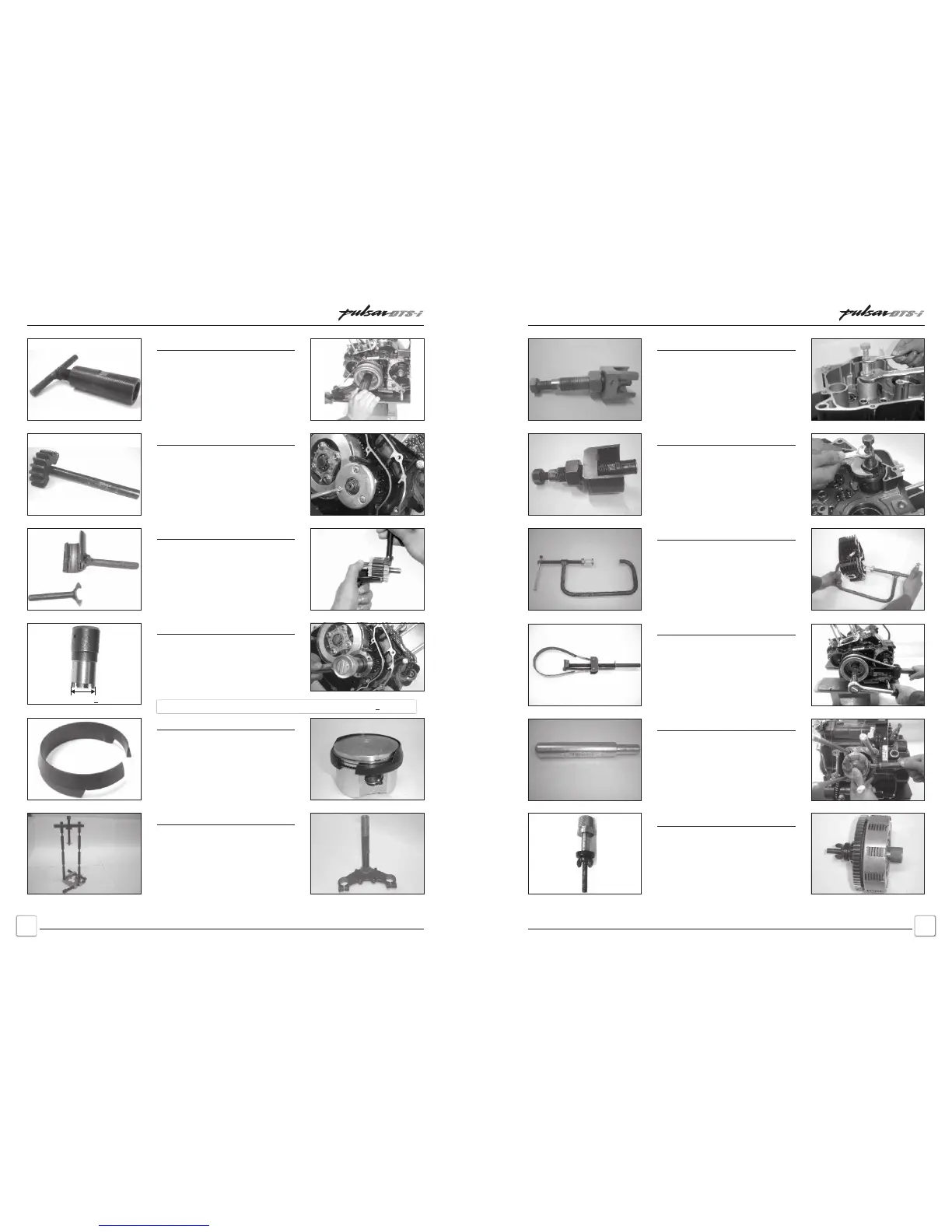

Rotor Puller with Butt Pin
Drawing No.:
37 10DJ 32
Application :
Used to pull out the rotor from
crankshaft assembly.
Primary Gear Holder
Drawing No.:
37 10DJ 28
Application :
Use to hold primary gear while
loosening / tightening the clutch nut.
Balancer Gear Holder
Drawing No.:
37 10DJ 63
Application :
Used to load the pre-tensioned
scissor gears of Assly balancer Idler
gear.
Special Nut
Drawing No.:
37 10DJ 43
Application :
Used to remove / fit of centrifugal
oil filter nut.
Piston Ring Holder
Drawing No.:
37 10DJ 30
Application :
Used for compressing the piston
rings when assembly piston in the
cylinder block.
Bearing Race Extractor
Drawing No.:
37 00DJ 01
Application :
Used for removing the lower bearing
race from ‘T’
Note : Existing tool can be used by reducing diameter to 25.9 + 0.1 mm
Dia. = 25.9+0.1
Pulsar DTS-i UG-III-180cc Training NotesPulsar DTS-i UG-III-180cc Training Notes
Bearing Extractor
Drawing No.:
37 10DJ 76
Application :
Used to extract the input shaft
bearing from crankcase LH.
Bearing Puller
Drawing No.:
37 10DJ 77
Application :
Used to pull out the bearing for
body balancer from crankcase LH.
Adaptor & Valve Spring compressor
Adaptor - Drawing No.: 37 10DJ 78
Valve Spring Compressor - Drawing
No.: 37 1031 07
Application :
Used for assembling / dismantling
inlet, exhaust valves by compressing
spring in cylinder head.
Rotor Holder
Drawing No.:
H6 0721 00
Application :
To hold rotor while loosening bolt.
Drift
Drawing No.:
74 9309 89
Application :
To remove piston pin.
Thrust plate aligner/holder
Drawing No.:
T-1011168
Application :
To align the clutch hub concentricity
w.r.to clutch wheel, clutch housing
and thrust plate
Special ToolsSpecial Tools
