17
Compressor (cont’d)
Assembling the Air Compressor
Unpack the air compressor. Inspect the unit for damage. If the unit has been damaged
in transit, contact the carrier and complete a damage claim. Do this immediatly
because there are time limitations to damage claims. The carton should contain.
$LU&RPSUHVVRU
0DQXDO
+DQGOH
$FFHVVRULHV
1) Attach handle and srew in properly.
Air Compressor
18
Owner’s Manual
Compressor (cont’d)

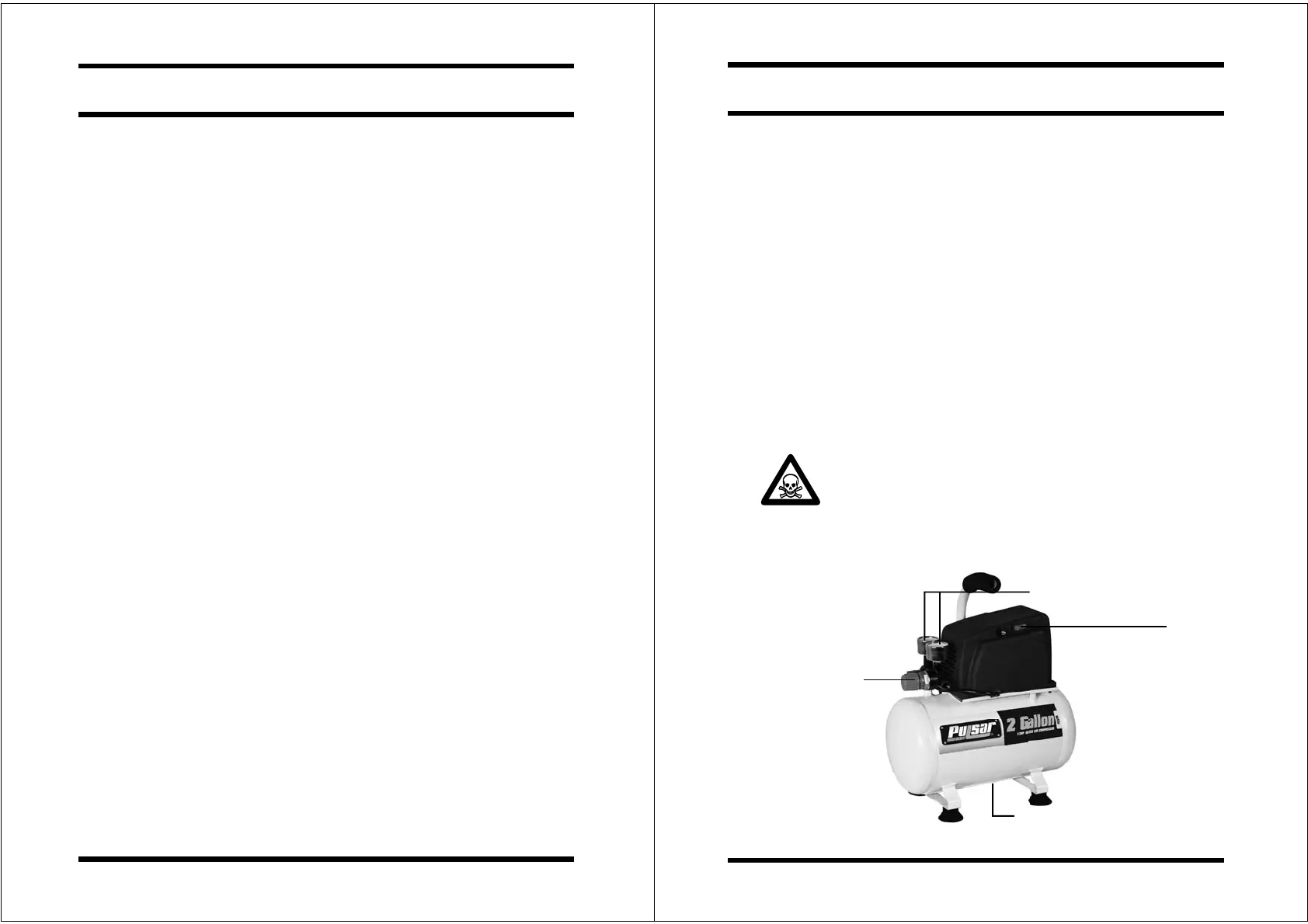

COMPRESSOR CONTROLS
Power switch: This switch turns the compressor power ON and OFF.
Pressure Relieve Valve: If the pressure switch does not shut down the motor when
pressure reaches the preset level, this valve will pop open automatically to prevent
over pressurization. To operate manually, pull the ring on the valve to relieve air
pressure in the tank.
Tank Pressure Gauge: This gauge measures the pressure level of the air stored in
the tank. It is not adjustable by the operator and does not indicate line pressure.
Air Pressure Regulator: This air pressure regulator enables you to adjust line
pressure to the tool you are using.
WARNING! NEVER EXCEED THE MAXIMUM WORKING
PRESSURE OF THE TOOL. TURN THE KNOB CLOCKWISE TO INCREASE
PRESSURE, AND COUNTERCLOCKWISE TO DECREASE PRESSURE.
Power Switch
Tank Pressure Gauges
Air Pressure Regulator
Pressure Relieve Valve
