Pulse Performance Products SAFE START - Scooter Components; Parts Identification

11Questions or concerns? Visit our website at www.pulsescooters.com for replacement parts and technical support, or call (866) 434-6067.
2
4
6
5
3
7
8
9
10
11
12
13
14
15
16
17
1
19
20
21
22
23
18
MATERIAL.
TITLE.
DWG NO.
REV.
SHEET 1 OF 1
SCALE: 1:20
DO NOT SCALE DRAWING
1. DIMENSIONS APPLY BEFORE PLATING OR COATING.
2. REMOVE ALL BURRS, BREAK SHARP EDGES .
3. ALL APPLICABLE BRAVO STANDARDS AND
SPECIFICATIONS APPLY.
UNLESS OTHERWISE SPECIFIED:
METRIC
THIRD ANGLE PROJECTION
1
0.5
0.25
0.1
1°
X.
X.X
X.XX
X.XXX
ANGULAR
C
SIZE
FINISH.
This document is the property of Bravo. All rights are reserved, including copyrights.
TOLERANCES.
DATE
2010-9-1
DRAWN
Sky Shi
APPR
METRIC_C
COLOR.
BRAVO SPORTS
12801 CARMENITA ROAD
SANTA FE SPRINGS, CA, 90670
USA
SHANGHAI OFFICE:
RM 1501/1508, ORIENT CENTER
699 NANJING ROAD WEST
SHANGHAI, CHINA, 200041

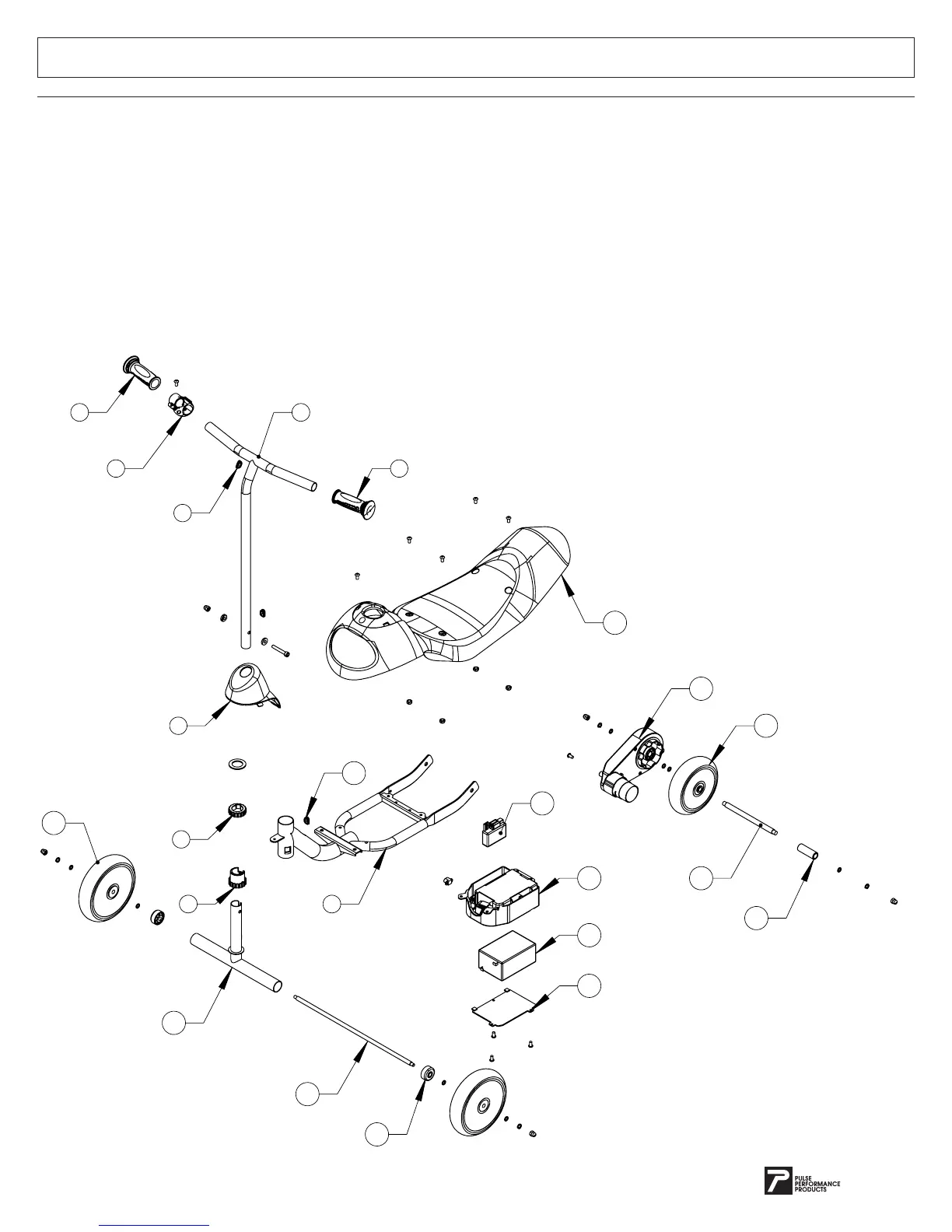

Scooter Components
part
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
description
Frame
Right Grip
Left Grip
Go Button
Stem Tube Grommet
Handlebar Stem Tube
Deck Cap
Frame Upper Cap
Frame Lower Cap
Front Wheel
Steer Tube
Front Axle
Axle Cap
Battery Box Door
Battery
Battery Box
Controller
Frame Grommet
Deck
Gear Box
Rear Wheel
Rear Axle
Rear Axle Spacer
