Pipeline Outdoor Shower
Please Read The Following Instructions
COMPLETELY Before Beginning!
Our goal is to ensure your installation goes smoothly and safely. Please read these
instructions carefully and follow recommendations for plumbing and mounting. After
reading instructions, if you determine you do not have the necessary skills and/or tools,
we recommend that a licensed plumbing contractor complete the installation.
If you encounter any problems during installation
PLEASE VISIT CUSTOMER SUPPORT AT
WWW.PULSESHOWERSPAS.COM
Before returning your Outdoor Shower to the store
2

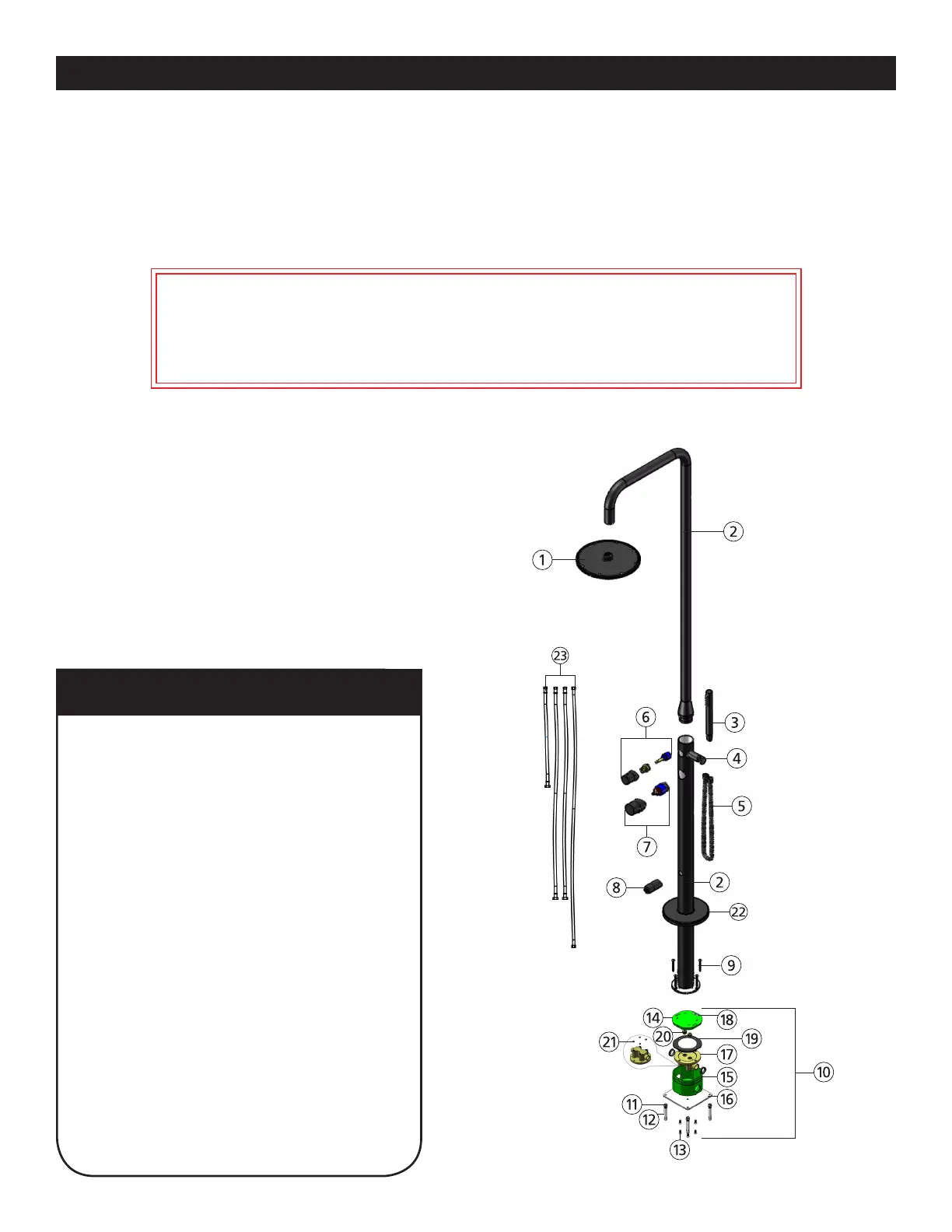

Parts Legend
1. Showerhead..................................1
2. Shower Pipe..................................1
3. Handshower..................................1
4. Handshower Holder.....................1
5. Hose................................................1
6. Diverter/Diverter Handle............1
7. Valve/Valve Handle.....................1
8. Foot Rinse.....................................1
9. 5mm Screws..................................4
10. Mounting Base..............................1
11. Metal Screws.................................4
12. Metal Anchors...............................4
13. Mounting Base Screws................4
14. Top Cover.......................................1
15. Mounting Base Box......................1
16. Metal Base.....................................1
17. External Hot&Cold Connector...1
18. Level................................................1
19. Gasket.............................................1
20. Unit Hot&Cold Connectors.........1
21. Metal Washers..............................4
22. Escutcheon...................................1
23. Flex Hoses.....................................4
Reversed view
You Will Need The Following tools
Soft pencil or felt pen to mark tile
5mm allen wrench
Safety glasses, Tape measure
Level
Channel locks or adjustable wrench
Drill (preferably cordless)
Masonry drill bit
To Next Page
