Pulse Shower Spas 1065-MB User Manual

3

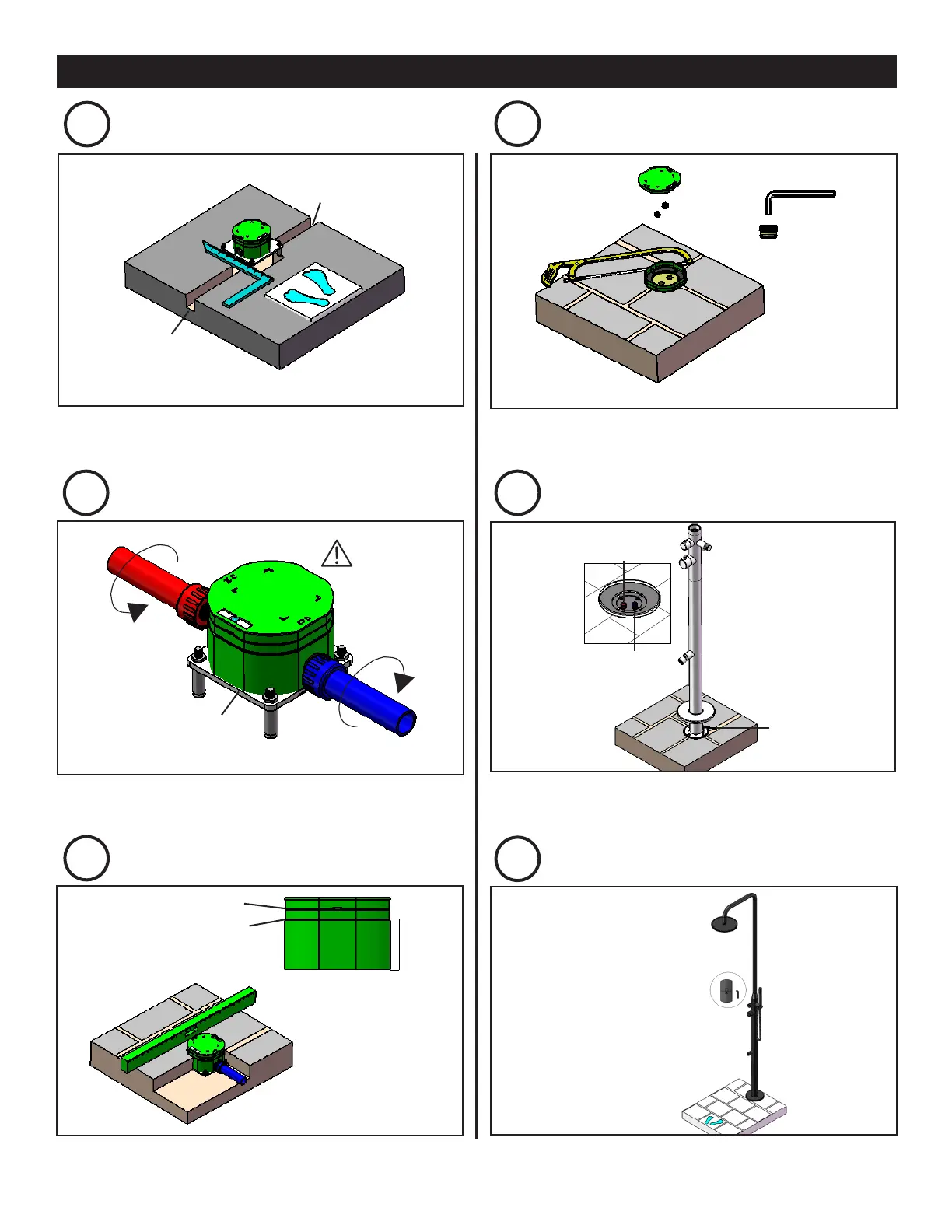

Installation Instructions
2.36”
2.36”
1
2
Conrm position for the mounting base (10) and standing place.
Suggested distance between them is 30". Dig hole based on the
mounting base (10) size.
Connect hot and cold water pipes to mouting base (10).
Make sure the mounting base (10) is vertical and centered to you.
Tighten mounting base (10) with metal screws (11), make sure oor
tile must be higher than bottom line and lower than middle line of
mounting base (10).
3
2.36”
2.36”
2.36”
6
5
Insert bottom shower pipe (2) to the mounting base (10). Connect
bottom ange to mounting base (10) with the four 5mm screws (6),
then push down the bottom escutcheon.
Insert top shower pipe (1) into bottom shower pipe (2). Connect hex head
end of hose to swivel joint and tapered end to handshower (4). Place the
tapered end of the hose into the handshower holder (9).
TIP:
Make Sure marks align
when securing set screws
Hot water
5.7" x 5.7"
Bottom line
Middle line
Hot water
Cold water
5mm Allen Wrench
Make sure there
are no leaks
Cold water
Discard mounting base cover and plugs for hot and cold water outlets.
Cut the extra top part of the mounting base (10).
4

Pulse Shower Spas 1065-MB Specifications

General

Brand	Pulse Shower Spas
Model	1065-MB
Category	Bathroom Fixtures
Language	English
