Pulse LEDBAR 24.1 – Colour LED Wash Bar
The Pulse LEDBAR 24.1 features 24 super bright, 1W LED’s offering greater output than the standard 252
LED products. Ideal for use indoors adding effects to stages, washing walls in colour or general up lighting.
The LED’s are split along the length of the bar in diagonal stripes to ensure a smooth wash across the wall
without any hotspots from any of the colours.
Features
• 24x 1W super bright LED’s (8 red, 8 green, 8 blue)
• 7 selectable DMX modes: 2, 3, 4, 6, 7, 14 and 26 channels
• Selectable operating modes including Auto, DMX, Master/Slave, Sound Active and Static Colour
• Black aluminium housing supplied complete with feet/hanging brackets
• 40 degree beam angle
• LED display with four button menu system for ease of setup
• IEC power in/out
• 3-pin XLR DMX connections
• Integral microphone for Sound Active mode
• Low power consumption: 36W
• Dimensions (WxHxD): 1025x65x65mm (not including brackets)
• Universal input voltage: AC120-240V/50-60Hz

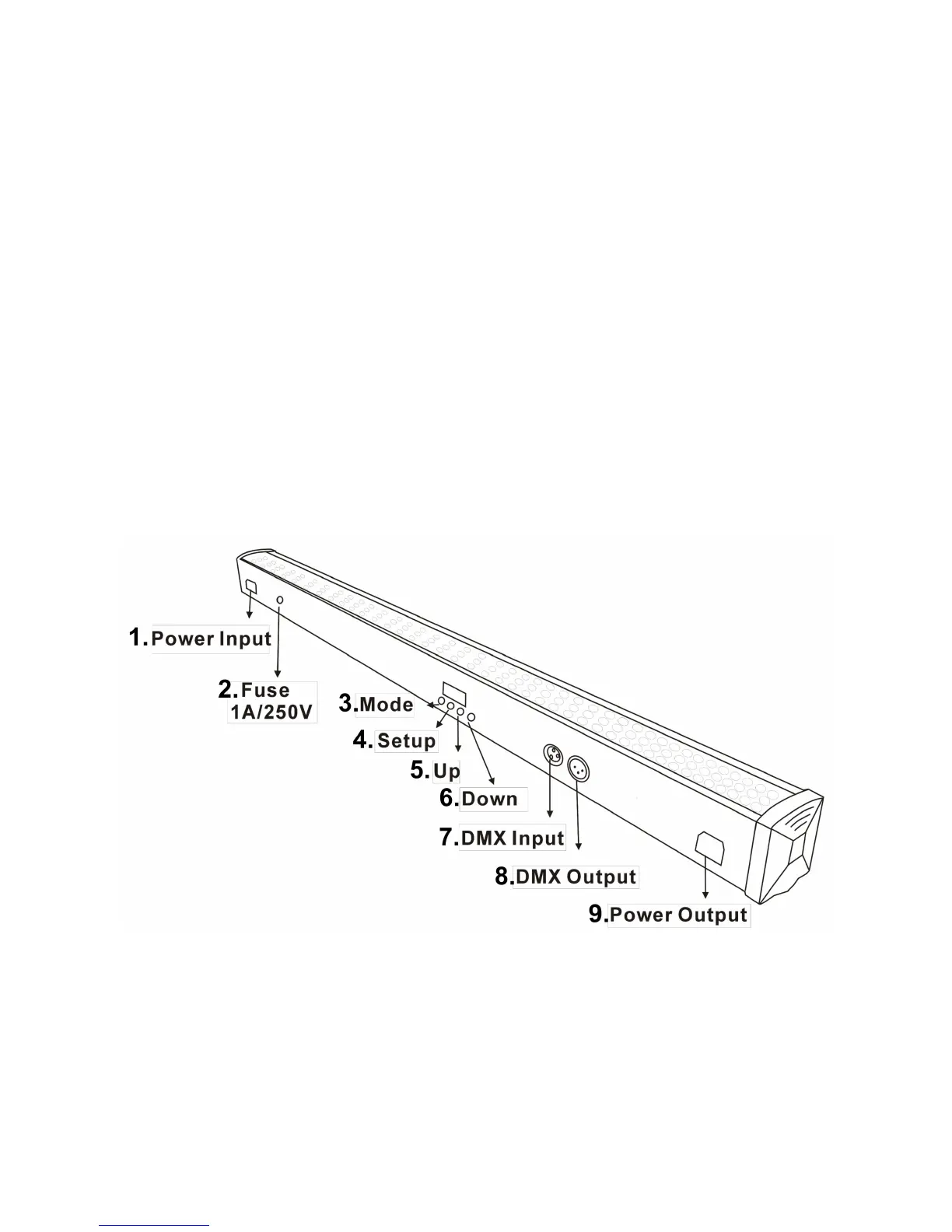

Operation:
