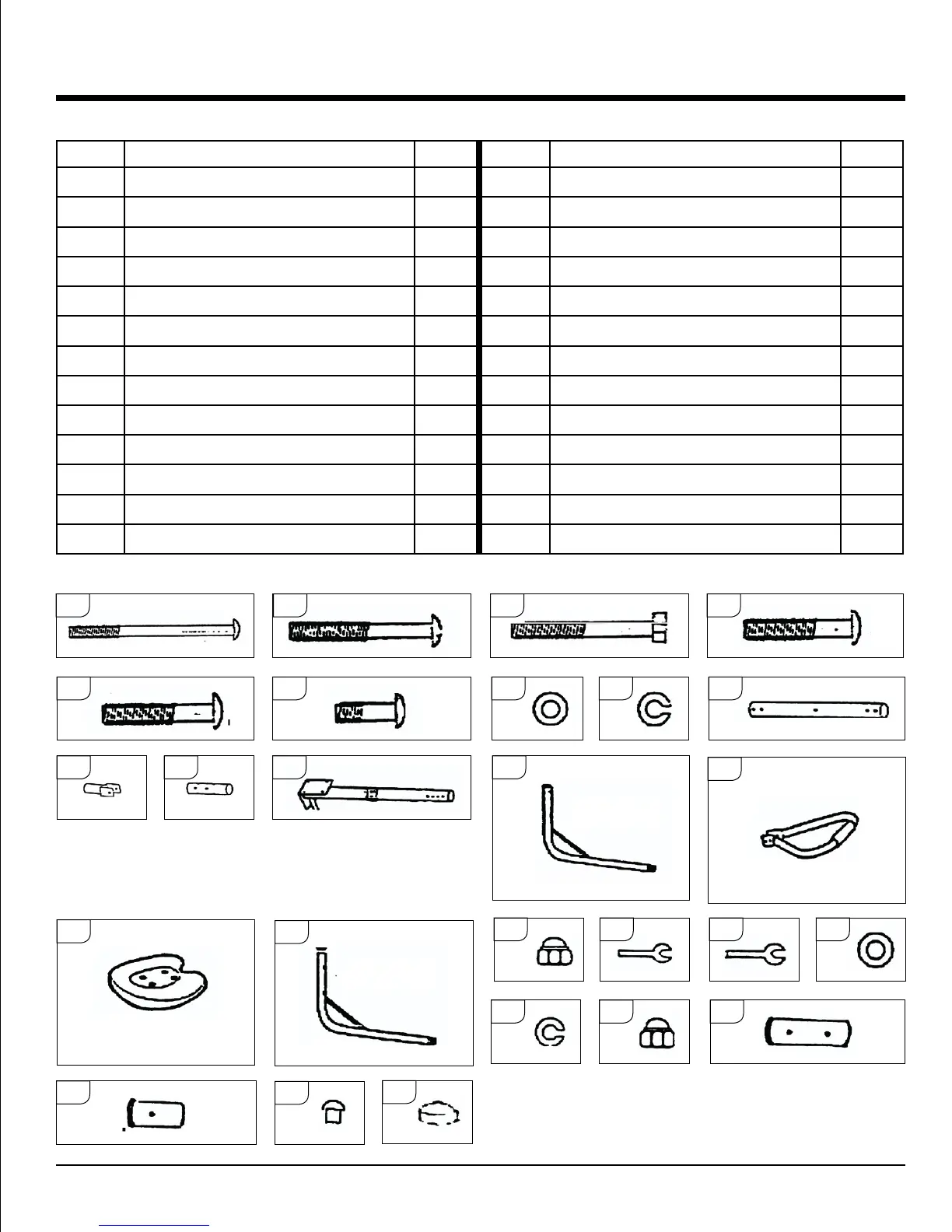

Pure Fun 9307SS - Exploded View and Parts List; Detailed Parts Identification

7
MODEL# 9307SS
PARTS LIST
Part # Description QTY Part# Description QTY
A M6 110mm Bolt x4 M Handle Bars with Foam x2
B M6 60mm Bolt x4 N Seat x2
C M8 70mm bolt x1 O Leg x2
D M6 45mm Bolt x4 P M6 Nut x22
D1 M6 50mm Bolt x2 Q Spanner x1
E M6 25mm Bolt x8 R Spanner x1
F M6 Washer x44 S M8 Washer x2
G M6 Washer x22 T M8 Washer x1
H Main Center Bar x1 U M8 Nut x1
I Upper Support Tube x1 V Plastic Tube between K & H x2
J Lower Support Tube x1 W
Small Plastic tube on support Tube
x1
K Main Side Bar x2 X Cap for leg x8
L Leg x2 Z Cap for Lower Support x1
O
D
I
D1 H
J
P Q
T V
X
U
W
Z
R S
K L
N
M
A B C
E F G
