TRAMPOLINE ASSEMBLY INSTRUCTIONS

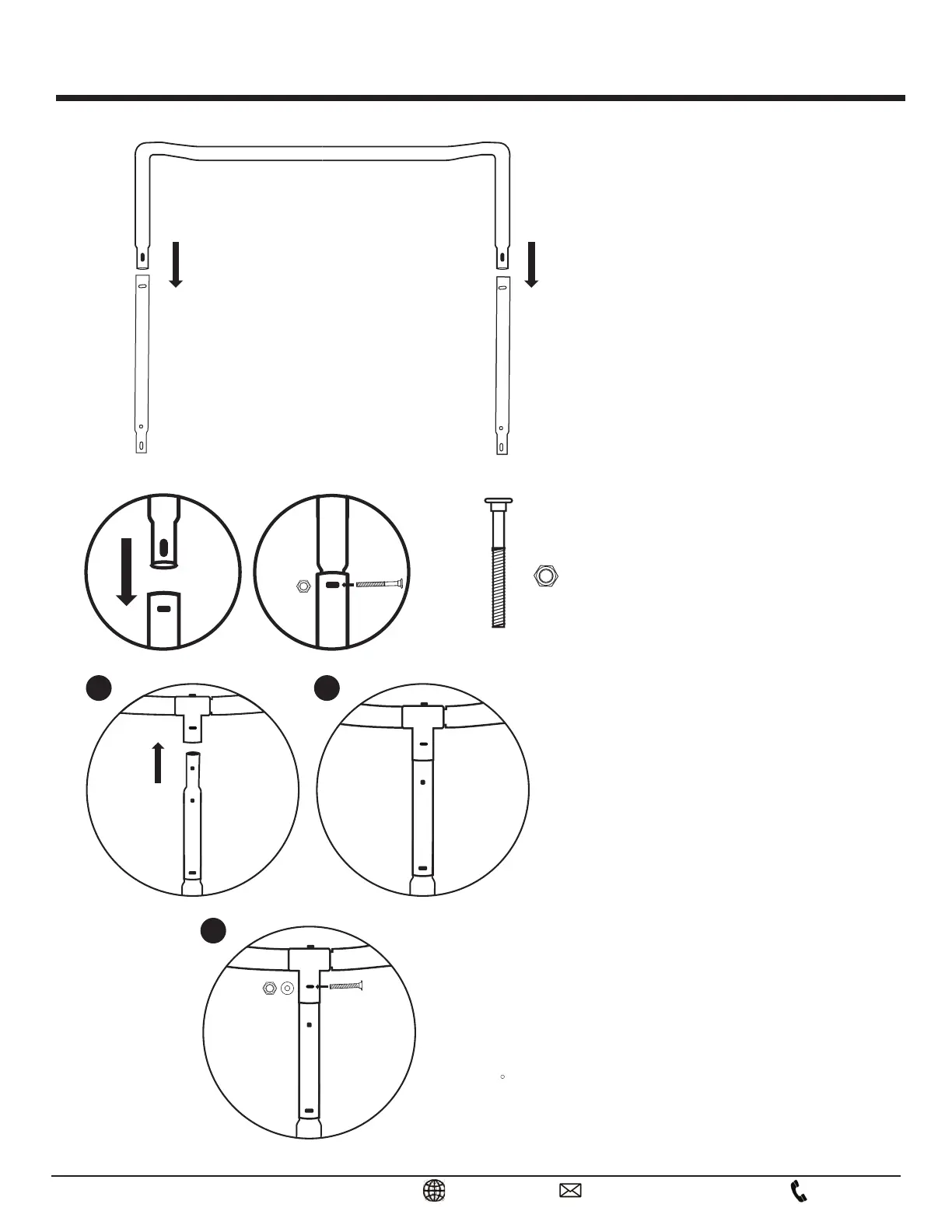

STEP 5:
Gather all Leg Extensions (Part 5) and U-
Shaped Legs (Part 6). You will be
attaching 2 leg extensions (5) to each U-
Shaped Leg.
NOTE:
The Leg Extension will have 3 openings.
The 2 openings closest to each other, will
go on the top and connect to the T-
Section at the top of the trampoline. Make
sure to connect the U-Shaped leg to the
single horizontal hole on the leg
extension.
STEP 6:
Attach the U-Shaped Leg (6) to the Leg
Extension(5) with 1 M6x45mm bolt (4) and
Nut (4a). Tighten with the Wrench Tool
(9).
Repeat step 6 until you have 6 sets of U-
Shaped legs with extensions.
STEP 7:
NOTE: It is recommended that you use
the help of 2 more adults in order to
attach all Legs to Base of Trampoline.
Lift the Top Rail with T-Sections that you
completed earlier and insert the U-
Shaped Legs and Extensions into the T-
Sections like picture shown to the left.
Repeat step 7 until all 6 U-Shaped legs
are attached to the top rail to form the
entire base of the trampoline.
STEP 8:
THIS WILL BE ON EVERY OTHER LEG
EXTENSION (The Enclosure Poles will
be on the other leg extensions in step 4
of the enclosure section) - Attach the T-
Section to the Leg Extension with 1
M6x45mm bolt and Nut into the top hole
as shown in figure C. Tighten with the
Wrench Tool.
