Case Maintenance (Cont.)
Access to Drainage Outlets
Access to drainage outlets is by pulling out the refrigeration tray to the maximum
extent
Access to Case Electrics & Controls
When working inside the electrical box the power supply must be
isolated as there are live wires feeding into the box.
Remove completely front panel
The electrical tray is located on the right hand side of the cabinet as you face it
Isolate the power supply via the isolation switch located on the electric box.
Unscrew 4 screws and slide out tray
When working with the electric box ensure no strain is placed on connecting cables
Warning Capacitors are used in the product so there may be a residual charge

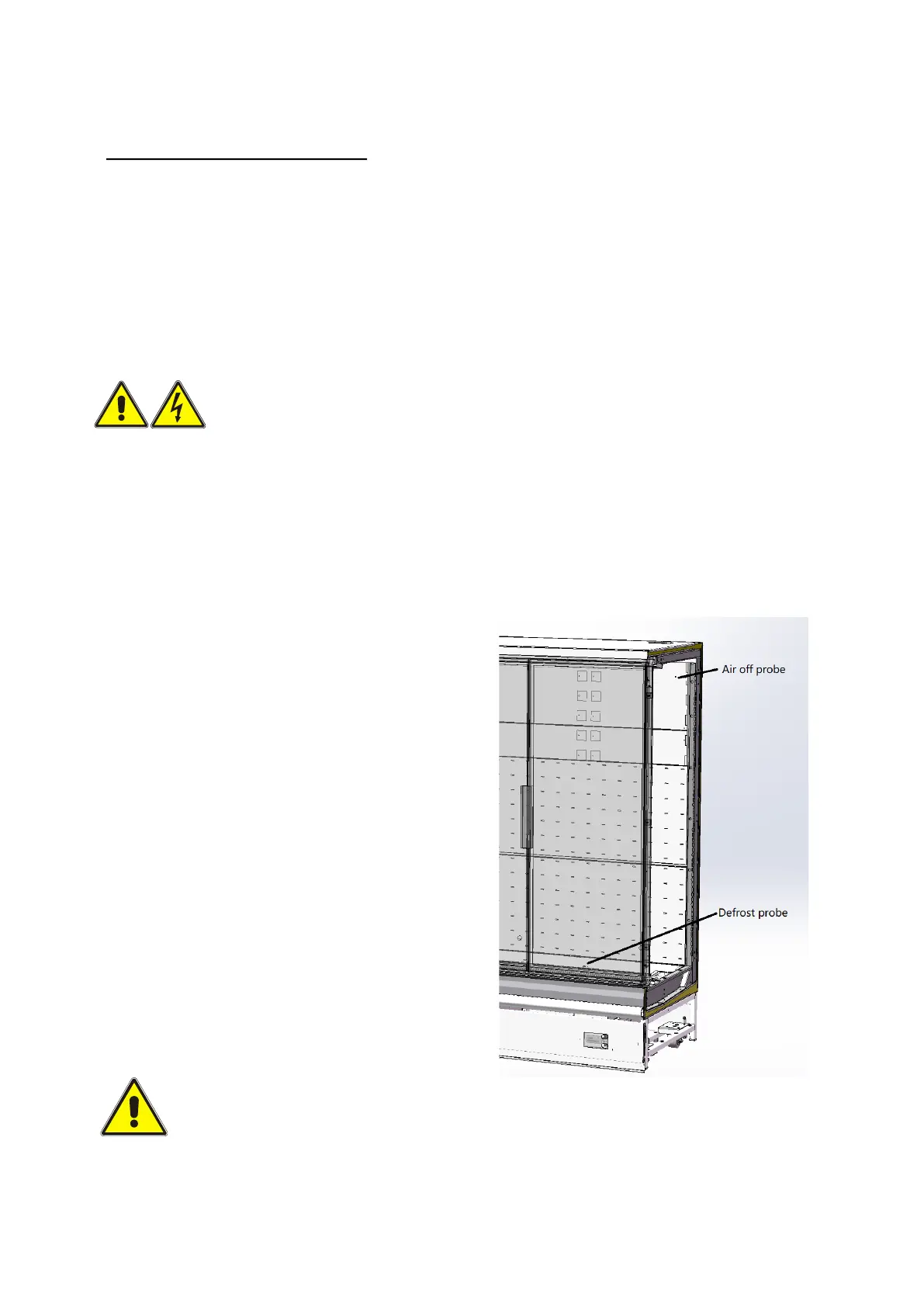

Both probes are located behind the right
hand back panel.
This is removed by:
Removing lower back panel
Lifting the upper back panel from its
base by circa 10mm, then pull base
gently towards you. The panel will now
hinge from the top, and a further lift will
release the panel
General Cautions
The case contains some heavy components. Care should be taken and
assistance used where necessary.
Pure Cold Impact 6 Installation,
Operation & Maintenance Manual
