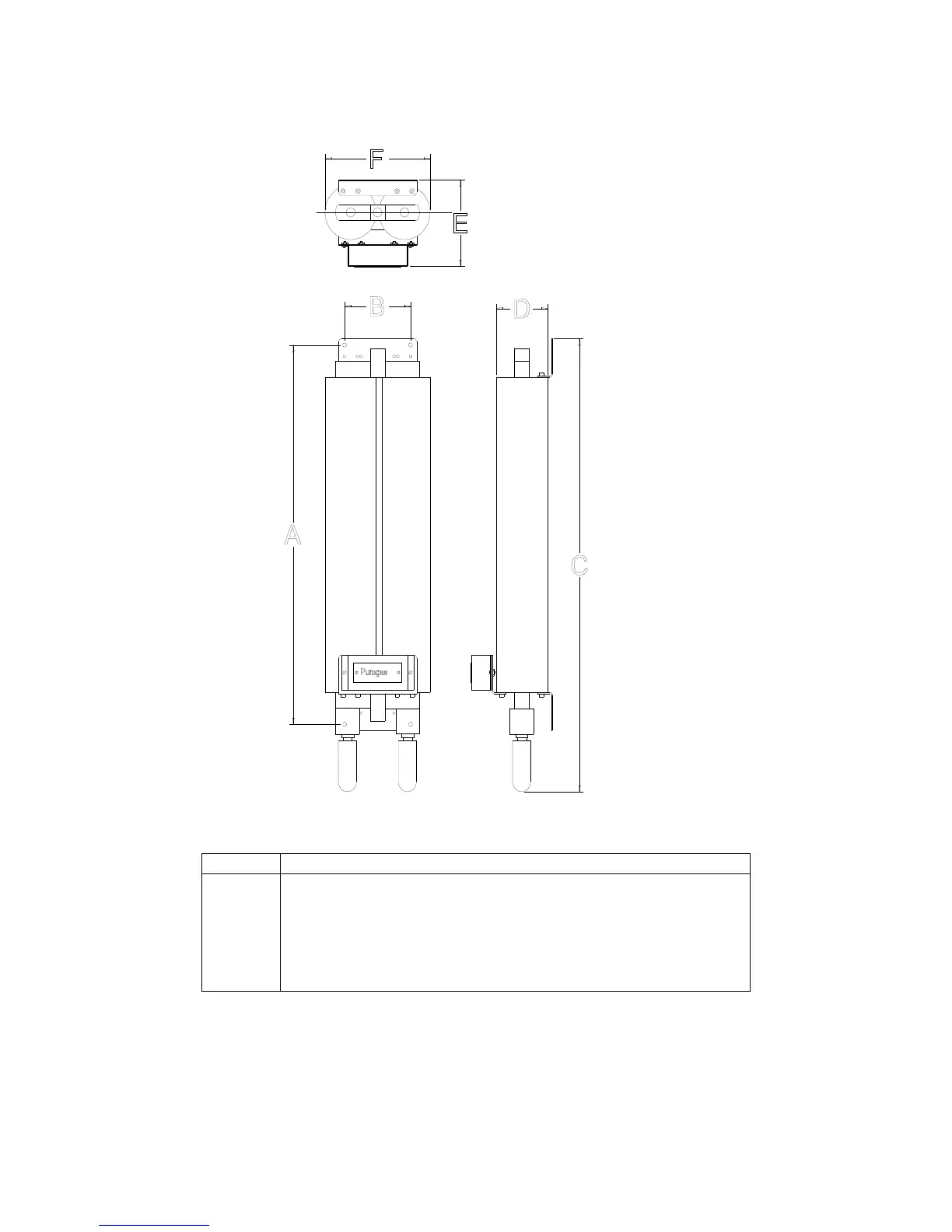

Puregas PMD - Figure 5: Dimensions of Pcr Model

Page 6 of 24
MODEL A B C D E F
PCR 15
18.625 6 25.5 3.25 5.5 8.25
PCR 25
22.935 6 30 4.25 6.4 9.25
PCR 50
28.125 6 35.25 4.25 6.4 9.25
Note: All dimensions are in inches.
FIGURE 5: DIMENSIONS OF PCR MODEL
