-03-

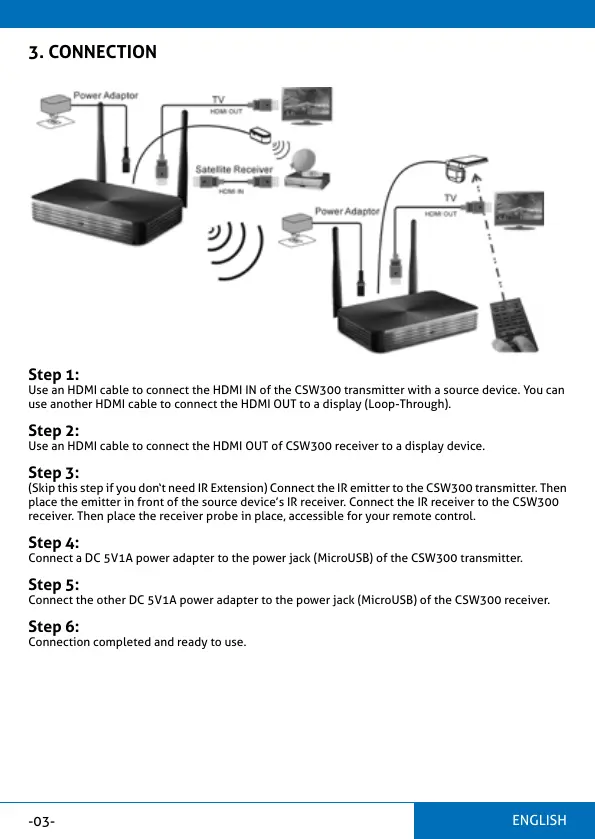

3. CONNECTION
Step 1:
use another HDMI cable to connect the HDMI OUT to a display (Loop-Through).
Step 2:
Use an HDMI cable to connect the HDMI OUT of CSW300 receiver to a display device.
Step 3:
(Skip this step if you don‘t need IR Extension) Connect the IR emitter to the CSW300 transmitter. Then
place the emitter in front of the source device’s IR receiver. Connect the IR receiver to the CSW300
receiver. Then place the receiver probe in place, accessible for your remote control.
Step 4:
Connect a DC 5V1A power adapter to the power jack (MicroUSB) of the CSW300 transmitter.
Step 5:
Connect the other DC 5V1A power adapter to the power jack (MicroUSB) of the CSW300 receiver.
Step 6:
Connection completed and ready to use.
