-04-

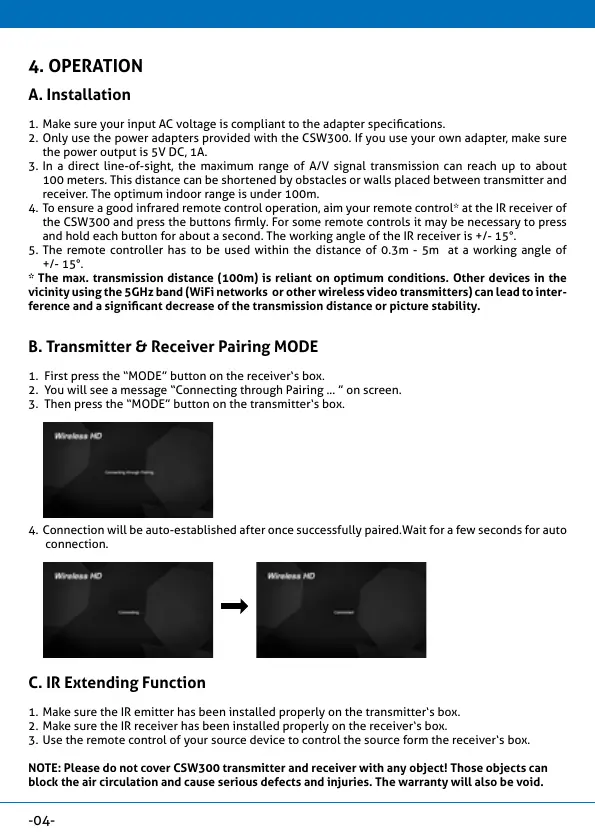

4. OPERATION
A. Installation
1.
2. Only use the power adapters provided with the CSW300. If you use your own adapter, make sure
the power output is 5V DC, 1A.
3. In a direct line-of-sight, the maximum range of A/V signal transmission can reach up to about
100 meters. This distance can be shortened by obstacles or walls placed between transmitter and
receiver. The optimum indoor range is under 100m.
4. To ensure a good infrared remote control operation, aim your remote control* at the IR receiver of
and hold each button for about a second. The working angle of the IR receiver is +/- 15°.
5. The remote controller has to be used within the distance of 0.3m - 5m at a working angle of
+/- 15°.
* The max. transmission distance (100m) is reliant on optimum conditions. Other devices in the
vicinity using the 5GHz band (WiFi networks or other wireless video transmitters) can lead to inter-
B. Transmitter & Receiver Pairing MODE
4. Connection will be auto-established after once successfully paired.Wait for a few seconds for auto
connection.
C. IR Extending Function
1. Make sure the IR emitter has been installed properly on the transmitter‘s box.
2. Make sure the IR receiver has been installed properly on the receiver‘s box.
3. Use the remote control of your source device to control the source form the receiver‘s box.
NOTE: Please do not cover CSW300 transmitter and receiver with any object! Those objects can
block the air circulation and cause serious defects and injuries. The warranty will also be void.
