MAX2 4K60 Cross Platform Matrix Router
9
▶

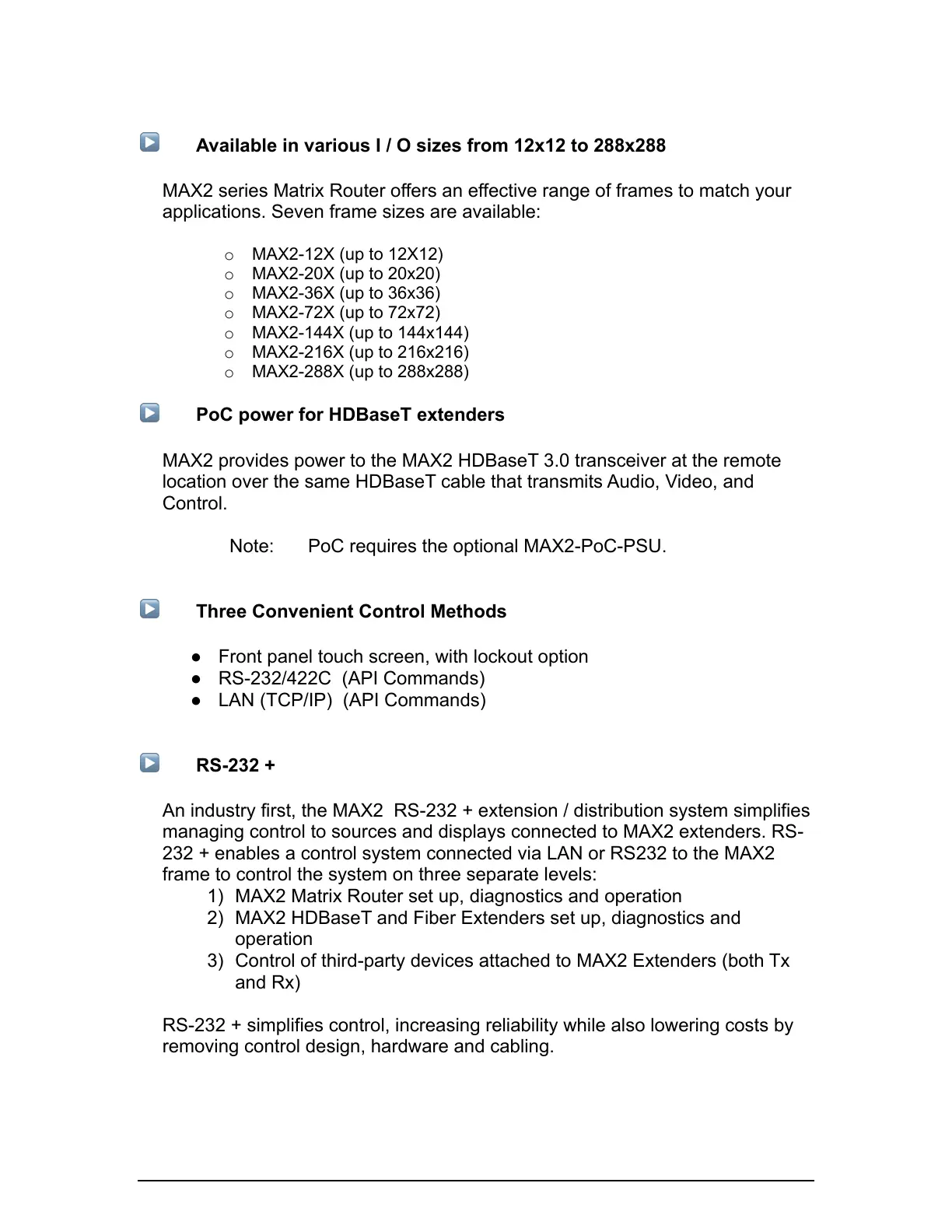

Available in various I / O sizes from 12x12 to 288x288
MAX2 series Matrix Router offers an effective range of frames to match your
applications. Seven frame sizes are available:
o MAX2-12X (up to 12X12)
o MAX2-20X (up to 20x20)
o MAX2-36X (up to 36x36)
o MAX2-72X (up to 72x72)
o MAX2-144X (up to 144x144)
o MAX2-216X (up to 216x216)
o MAX2-288X (up to 288x288)
▶
PoC power for HDBaseT extenders
MAX2 provides power to the MAX2 HDBaseT 3.0 transceiver at the remote
location over the same HDBaseT cable that transmits Audio, Video, and
Control.
Note: PoC requires the optional MAX2-PoC-PSU.
▶
Three Convenient Control Methods
● Front panel touch screen, with lockout option
● RS-232/422C (API Commands)
● LAN (TCP/IP) (API Commands)
▶
RS-232 +
An industry first, the MAX2 RS-232 + extension / distribution system simplifies
managing control to sources and displays connected to MAX2 extenders. RS-
232 + enables a control system connected via LAN or RS232 to the MAX2
frame to control the system on three separate levels:
1) MAX2 Matrix Router set up, diagnostics and operation
2) MAX2 HDBaseT and Fiber Extenders set up, diagnostics and
operation
3) Control of third-party devices attached to MAX2 Extenders (both Tx
and Rx)
RS-232 + simplifies control, increasing reliability while also lowering costs by
removing control design, hardware and cabling.
