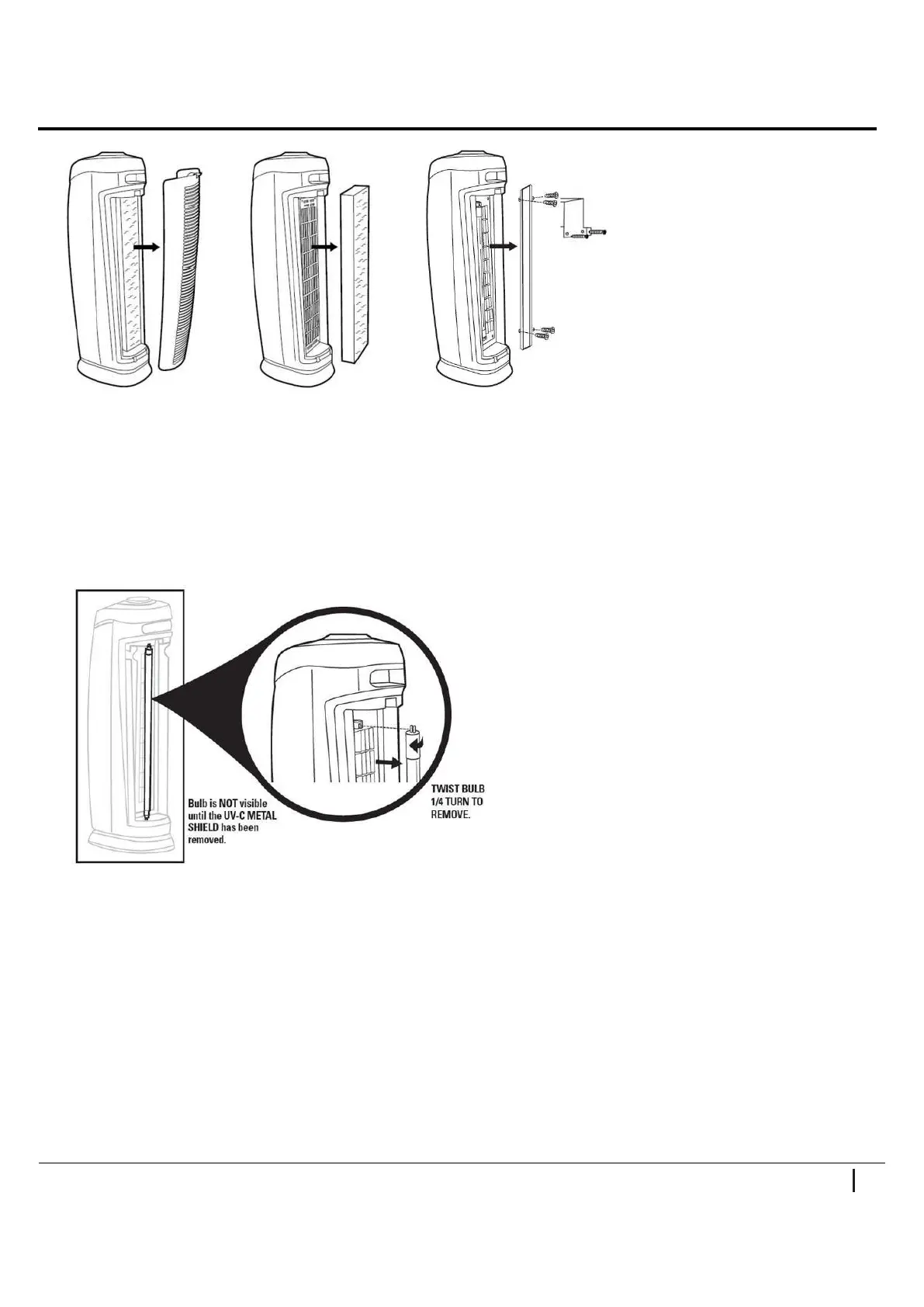

REMOVING AND INSTALLING UV-C LAMP
1. Remove the Rear
Cover of the unit by
pushing Lock &
Release Button.
2. After removing
the Rear Cover from
the unit, remove the
Combination Filter.
3.After removing the Combination Filter, use
a Philips head screwdriver to remove four (4)
screws and detach the UV-C Metal Shield.
4.The UV-C Bulb is removed by carefully grasping the bulb with a clean cloth or tissue and
pulling the bulb straight out of the unit. (See Picture Below).
Important: The UV-C Bulb should be replaced every 12 - 18 months depending on use.
Please contact Customer Service or visit us at www.PureMate.co.uk to purchase a
replacement bulb.
5. The UV-C Bulb is reinstalled by sliding it, vertically, back into the slots at the top and bottom
of the unit.
WWW.PUREMATE.CO.UK
English 7
