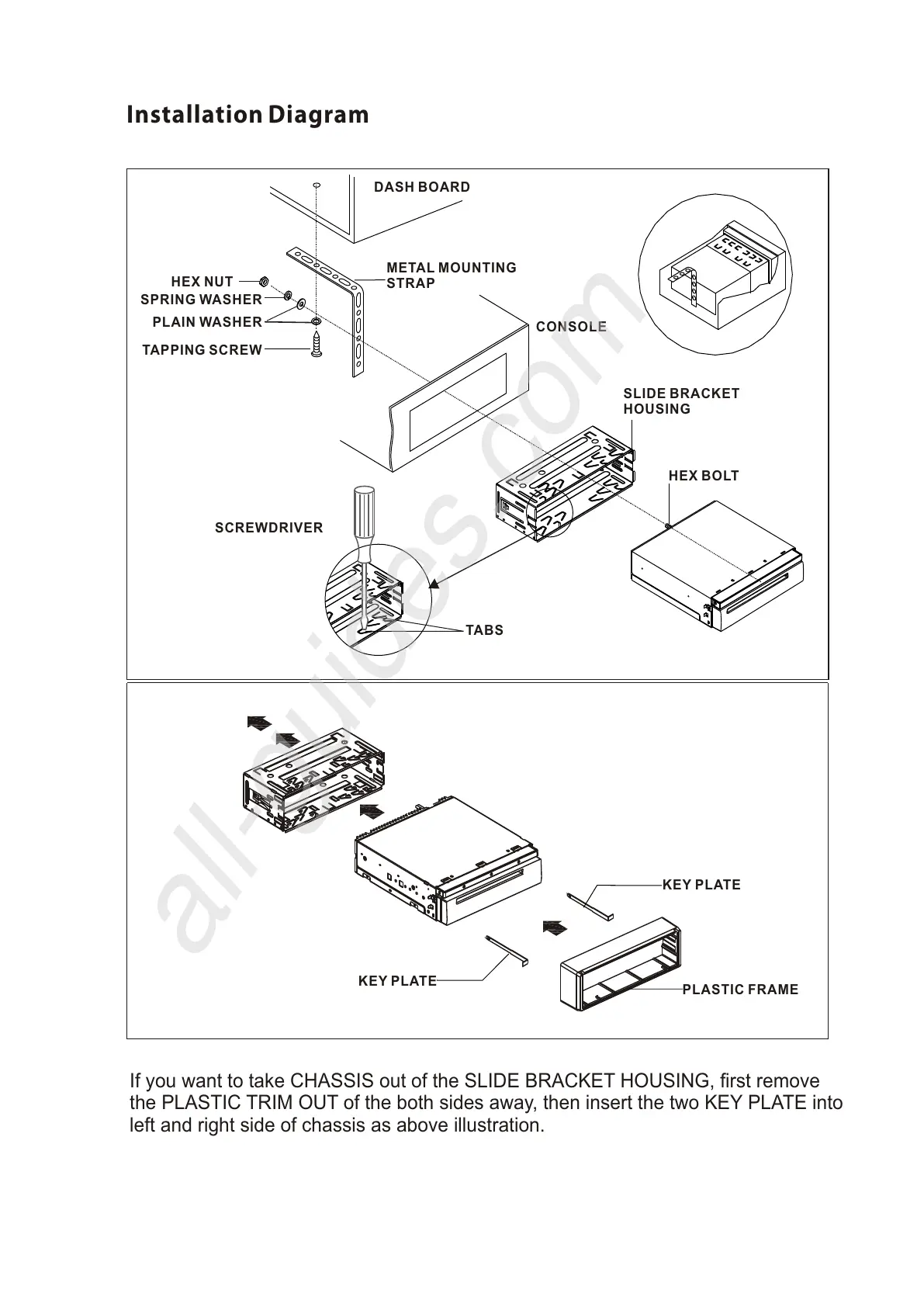

Installation Diagram
If you want to take CHASSIS out of the SLIDE BRACKET HOUSING, first remove
the PLASTIC TRIM OUT of the both sides away, then insert the two KEY PLATE into
left and right side of chassis as above illustration.
DA
SH BOARD
METAL MOUNTING
STRAP
HE
X NUT
SP
RING WASHER
PLAIN WASHER
TAPPING SCREW
CONSOLE
SL
IDE BRACKET
HOUSING
HE
X BOLT
SCREWDRIVER
TABS
KEY PLATE
KEY PLATE
PLASTIC FRAME
