Hollow
Bulge
1
2

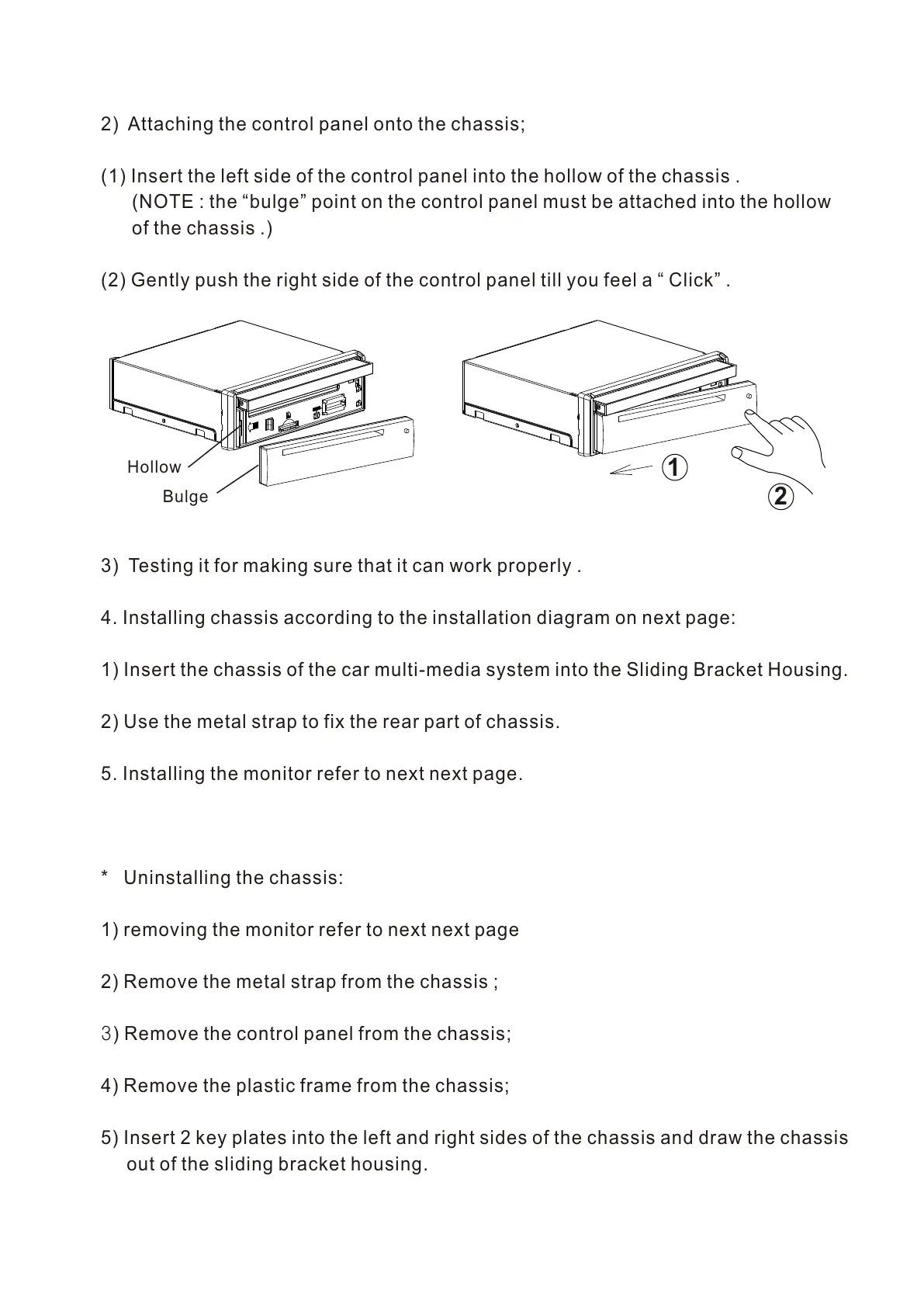

2) Attaching the control panel onto the chassis;
(1) Insert the left side of the control panel into the hollow of the chassis .
(NOTE : the “bulge” point on the control panel must be attached into the hollow
of the chassis .)
(2) Gently push the right side of the control panel till you feel a “ Click” .
3) Testing it for making sure that it can work properly .
4. Installing chassis according to the installation diagram on next page:
1) Insert the chassis of the car multi-media system into the Sliding Bracket Housing.
2) Use the metal strap to fix the rear part of chassis.
5. Installing the monitor refer to next next page.
* Uninstalling the chassis:
1) removing the monitor refer to next next page
2) Remove the metal strap from the chassis ;
3) Remove the control panel from the chassis;
4) Remove the plastic frame from the chassis;
5) Insert 2 key plates into the left and right sides of the chassis and draw the chassis
out of the sliding bracket housing.
