Installation

-6-

Installation the unit

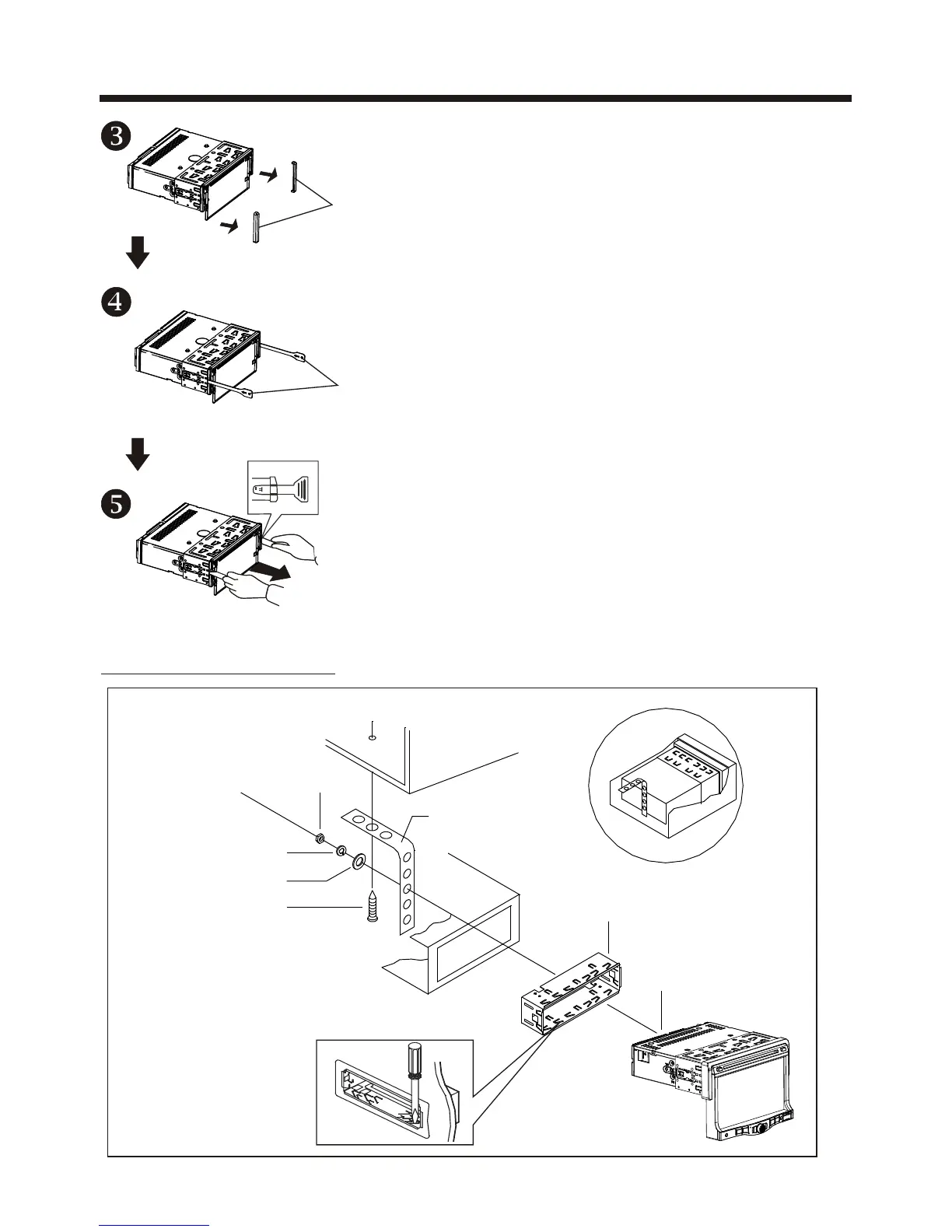

3. Remove the PLASTIC COVER of the both sides away

4. Insert the two KEY PLAT into the grooves at both sides

of the unit as shown in figure until they click .

PLASTIC COVER

KEY PLATE

5. Pulling the levers makes it possible to remove

the unit from the dashboard .

DASH BOARD

METAL MOUNTING

STRAP

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT
