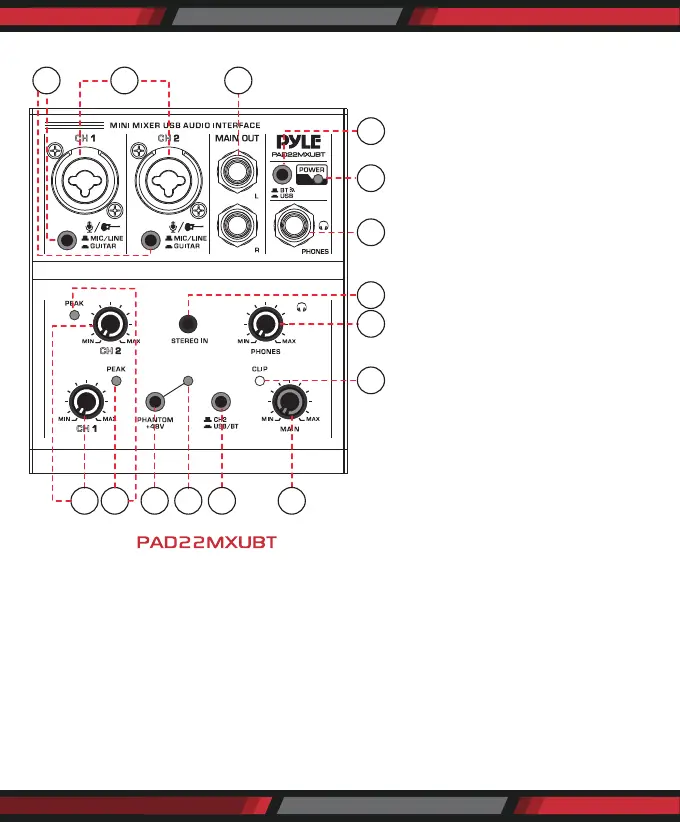

7. [PHANTOM POWER] LED, indicates the phantom power is on.
8. This is an input select switch, when the switch is bounce up, the input signal is
from LINE IN. Press it down, the input signal is from USB/BT.
9. This is an input select switch, when the switch is bounce up, the input signal from
stereo CH 2/3 and AUX IN. Press it down, the input signal is from USB/BT.
10. This is an input select switch, when the switch is bounce up, the input signal
from CH 2. Press it down, the input signal is from USB/BT.
3. [LINE IN] Controller, used to
adjust the volume from RCA
LINE IN input.
4. [CH 1/2/3] Controller, used to
adjust the volume of signal
input of CH1/2/3.
5. [PEAK] LED indicator light, it
will light up when the input
signal is too high.
6. [PHANTOM +48V] Switch,
used to activate the phantom
power supply on XLR connector,
it offers +48V phantom power.
