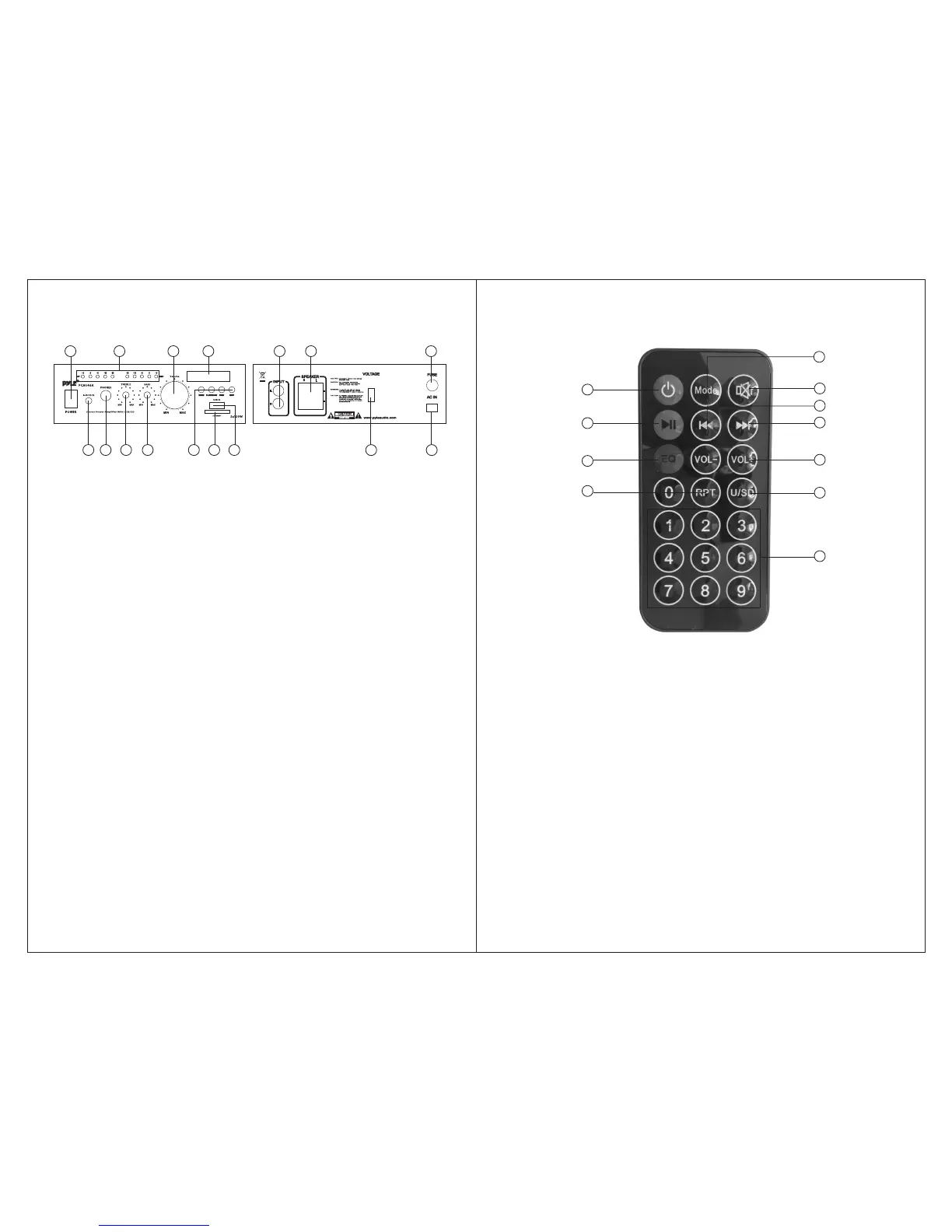

Features and Controls
1 2
5 7 9
10
11
12
13
14
16
15
43
6
1. Power ON LED Indicator
-Lights to indicate power is turned on.
2. Blue LED Output Level Display
3. Master Volume Control
-Lets you adjust the overall sound level,turn the knob clockwise to increase the volume.
4. Function Blue LED Display Window
5.AUX/CD IN
-Lets you easily connect the computerized MP3 Device (player) sources, such as PC(CD
ROM), laptop, walkman, iPod,and cell phone.
6. 1/ 4″PHONE JACK
-Accept headphones with 1/4” plug.
7. TREBLE
-Lets you adjust the TREBLE volume to high or low.
8. BASS
--Lets you adjust the BASS volume to high or low.
9. Buttons for MP3(USB/SD/ MMC) Function Control
-Mode: For audio input selection.
-Play/Pause: Play and pause control.
-Prev./Next: Quick backward or next song.
10. SD/MMC Socket for playing SD/MMC cards
11. USB Socket for playing the USB funtion.
12. RCA L/R LINE Input
-Let you connect to the desired LINE input sources.
13. Push Type Speaker L/R Terminals
-Let you easily connect the speakers'wires directly to the amplifier
14. Fuse
-The amplifier uses a fuse for protection against surges and short circuit. If the amplifer
suddenly turn off and will not turn on, check the fuse. If necessary, replace it with a 1-
amp, 250-volt, fast- acting, 5x20mm fuse(not supplied)
15. 110V/220V Switch
-According to power voltage, push this button to the correct station of the 110V or 220V.
16. AC IN Power Cord
-Connect to AC 110V/60Hz or 220V/50Hz
PCAU46A
3
8
1.Power Standby Button
2.Play/Pause Button
3.Equilizar Button
4.Repeat Song Button
5.Mode: Menu Control Button
6.Mute Button
7.Previous Song Button
8.Next Song Button
9.Volume - & Volume + Buttons
10.USB/SD Switch Button
11.Number Buttons for Song Selection
Remote Control Function
To Next Page
