18
Angle

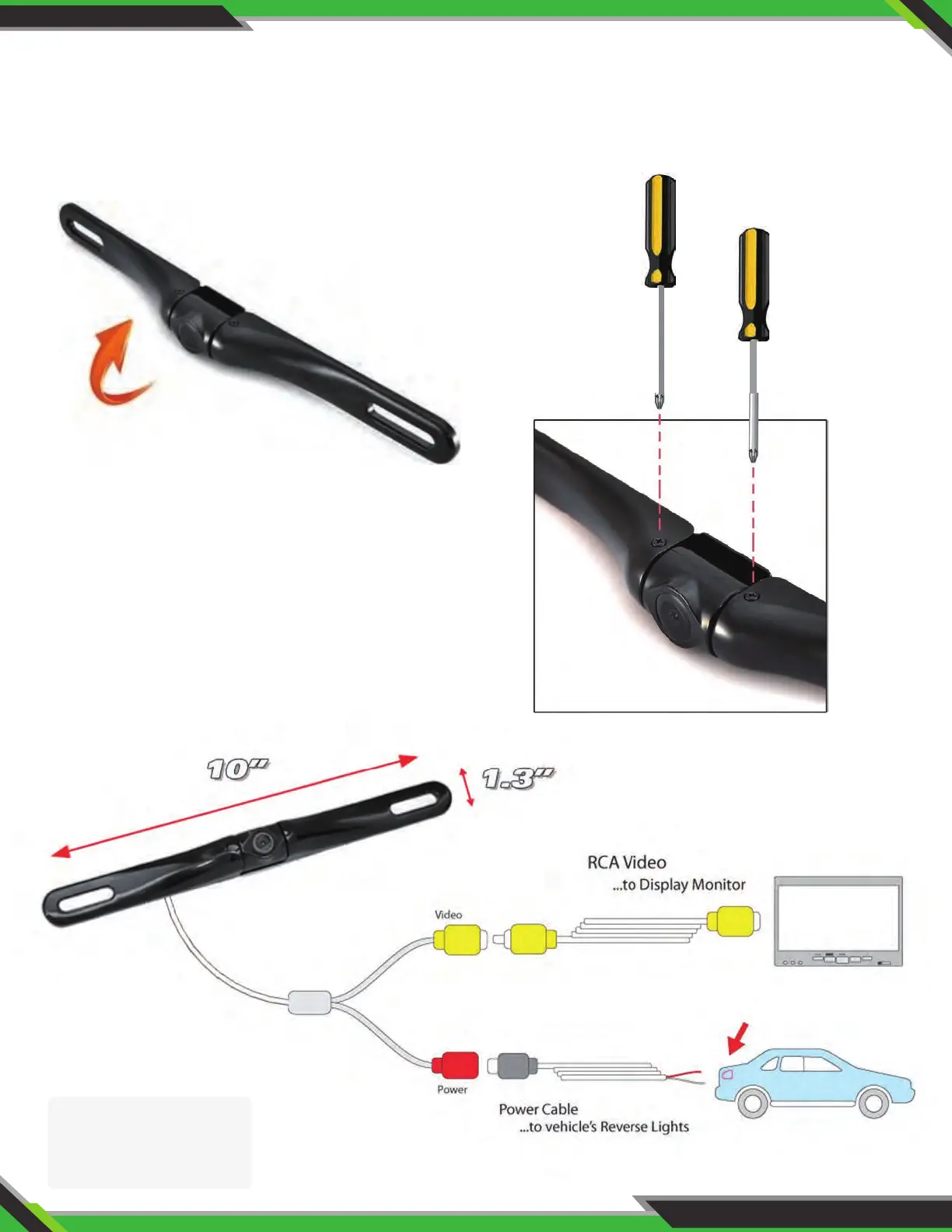

Adjustable Camera Lens
• Located on the camera housing are 2 screws which lock the camera lens angle in position.
• The screws may be loosened to allow camera lens angle adjustment
• Loosen the screws, adjust the camera lens into the desired angle. then tighten the screws securely
.
• Be sure as to not overtighten the screws.
18
20
Table of Contents
Table of Contents
2
Precautions
3
Wiring Diagram
4
General Operation
6
AM/FM Tuner Operation
7
Multimedia Player
7
Music Playing Interface
8
Viedo or Picture Playing Interface
8
AUX In/ Rearview Camera
8
Wireless BT Streaming
9
Autolink Software(Phone Link)
10
Setting Menu
12
Troubleshooting
13
Systematic Parameter
15
Disassembly Steps of Display
16
Rear View Backup Camera Installation
17
5
