11. SUB. OUT VOLUME CONTROL
12. LED DIMMER
13. MASTER VOLUME CONTROL: Adjusts the blue lights and blue rings.
Adjusts the volume level. Turn the knob clockwise to increase the volume.
14. ECHO CONTROL: Turn the knob to adjust the MIC echo level.
15. MIC TREBLE: Adjusts the treble of MIC.
16. MIC BASS: Adjusts the bass of MIC.
17. MIC VOLUME: Adjusts the volume level. Turn the knob clockwise to
increase the MIC volume .
18. USB/SD: Card input
19. MIC INPUT JACKS 1&2 KARAOKE MIC: Connect to these jacks.
20. HEADPHONE JACK: Headphone connect to this jack.
21. IPOD/MP3 JACK: Connect to this jack

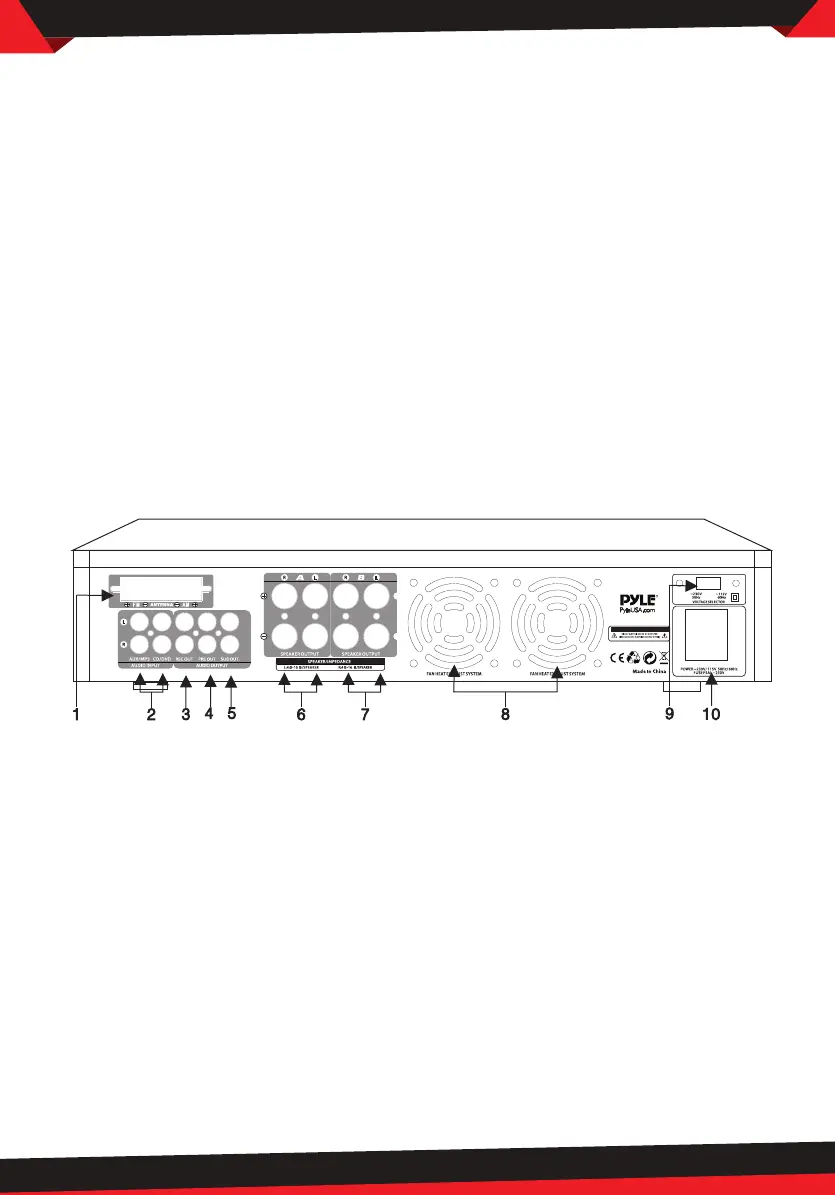

1. TUNER ANT: Connect for AM and FM antennas.
2. AUDIO INPUT JACKS:
Connect the audio output jacks of CDNCD/DVD, AUX to these jacks.
3. REC. LINE OUTPUT JACKS:
Connect the RECORD input jacks to these jacks.
4. PRE OUTPUT JACKS:
Connect the pre professional input jacks to these jacks.
5. SUB-WOOFER OUTPUT JACKS 1 & 2
6. A SPEAKER OUTPUT TERMINALS:
Connect your speaker system to these terminals.
