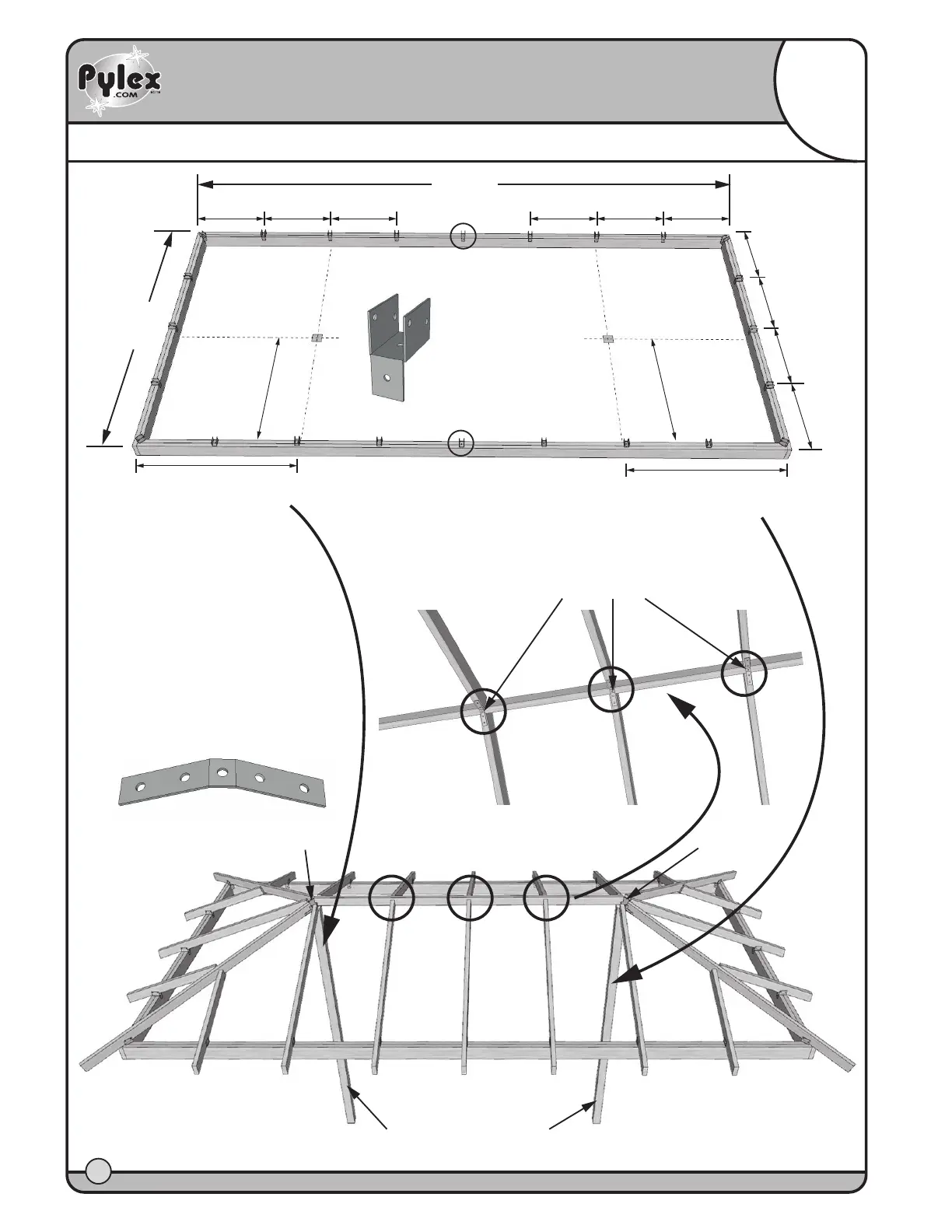

Pylex 12075 - 10 x20 Gazebo Component Diagram

WWW.PYLEX.COM
GAZEBO - PIECE C and F
19
10' X 20'
24 X C
3 X F
CENTER
CENTRE
CENTER
CENTRE
30"
60"
60"
60"
60"
30" 30"
20'
30" 30"
30"
30"
30"
30"
30"
10'
D
24 X C
TEMPORARY POST
POTEAU TEMPORAIRE
POST TEMPORARY
POTEAU TEMPORAIRE
POST TEMPORARY
POTEAU TEMPORAIRE
D D
DO NOT TIGHTEN THIS SCREW IMMEDIATELY - NE PAS VISSER CETTE VIS IMMÉDIATEMENT
SEE STEP 10 - PAGE 12 - VOIR ÉTAPE 10 - PAGE 12
