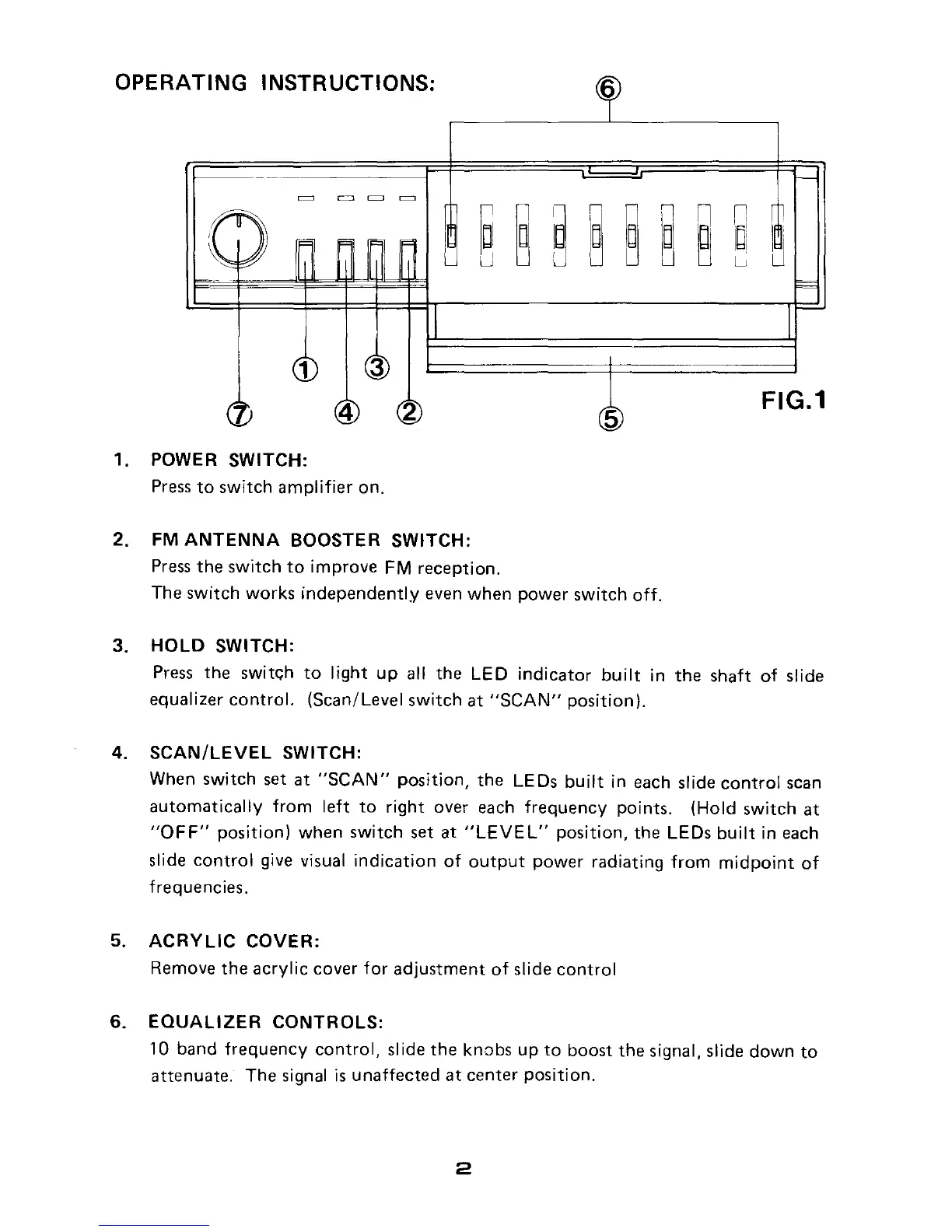

OPERATING

INSTRUCTIONS:

1. POWER

SWITCH:

Press

to

switch

amplifier

on.

6

5

n

IDi

~

FIG.1

2.

FM

ANTENNA

BOOSTER

SWITCH:

Press

the

switch

to

improve

FM

reception.

The

switch

works

independently

even when

power

switch

off.

3.

HOLD

SWITCH:

Press

the

switch

to

light

up

all the

LED

indicator

built

in

the

shaft

of

slide

equalizer

control.

(Scan/Level

switch

at

"SCAN"

position).

4.

SCAN/LEVEL

SWITCH:

When

switch

set

at

"SCAN"

position,

the

LEOs

built

in

each slide

control

scan

automatically

from

left

to

right

over each

frequency

points.

(Hold

switch

at

"OFF"

position)

when

switch

set at

"LEVEL"

position,

the LEOs

built

in

each

slide

control

give visual

indication

of

output

power

radiating

from

midpoint

of

frequencies.

5.

ACRYLIC

COVER:

Remove

the

acrylic

cover

for

adjustment

of

slide

control

6.

EQUALIZER

CONTROLS:

10 band

frequency

control,

slide

the

knobs

up

to

boost

the

signal, slide

down

to

attenuate. The signal

is

unaffected

at

center

position.
