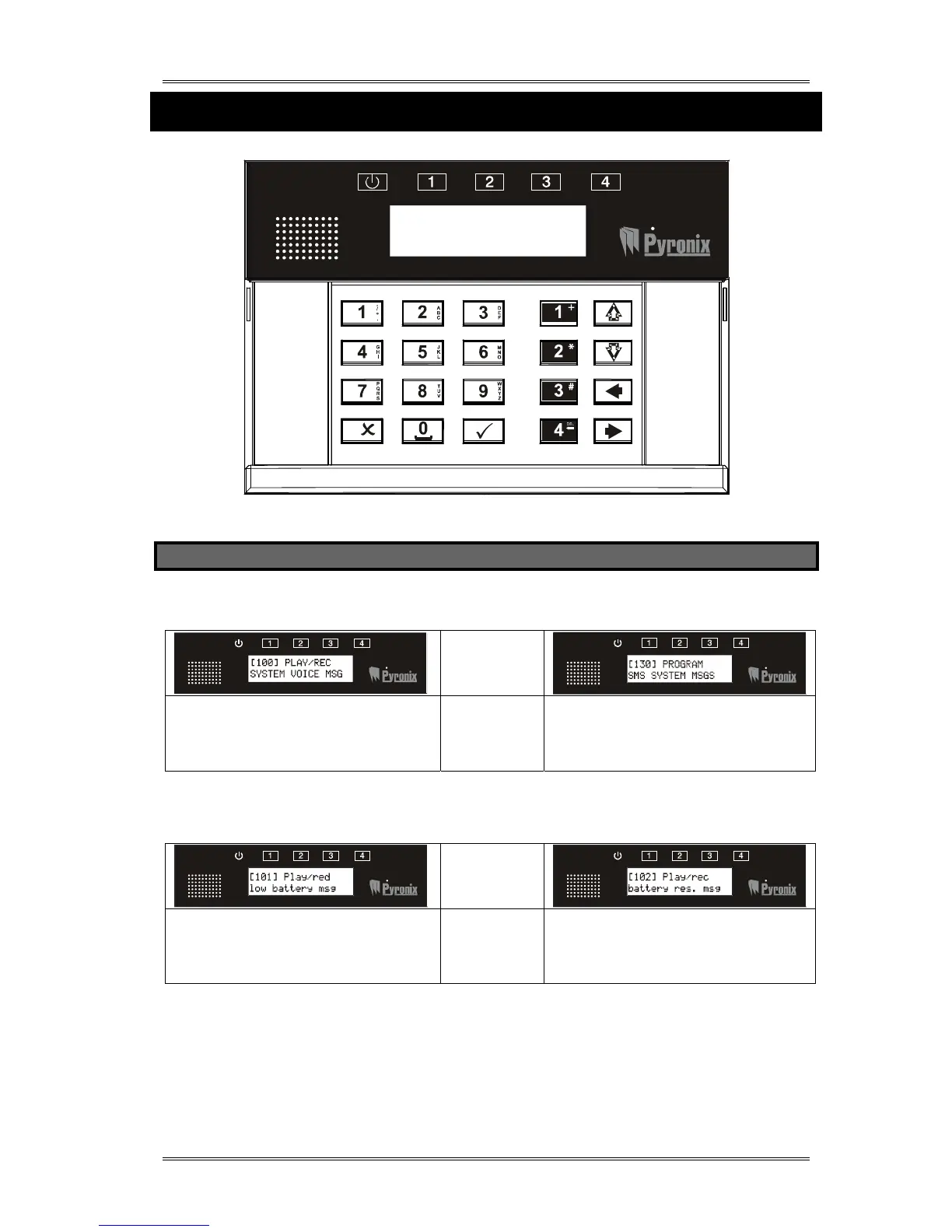

CHAPTER 4: OPERATING THE KEYPAD
The V2 GSM keypad incorporates 4 status LEDs positioned above the LCD display. They
are numbered 1 to 4 and are used to show the status of the 4 on board outputs.
4.1 SCROLLING THROUGH MENUS
Once in the User or Engineer menu (see page 8), the main menus are scrolled through
using the [ and ] keys.
Press ]
Main menu functions are displayed
in capital letters
To scroll to
the next
main menu
function
The next main menu function will
be displayed. To go further press
], or to go back press [
To enter a main menu function, press t or M
Once in a main menu function, use the N and M keys to scroll through the sub-menu.
Press M
Sub-menu function are displayed in
lower case letter
To scroll to
the next
sub-menu
function
The next sub-menu function will be
displayed. To go further press
,
or M to go back press N
To enter a sub-menu function, press t
Press x to exit a sub-menu, and to go back to the main menu functions,
Press x again until a main menu function (in capital letters) is displayed.
