HeatMaster 6–15kW5

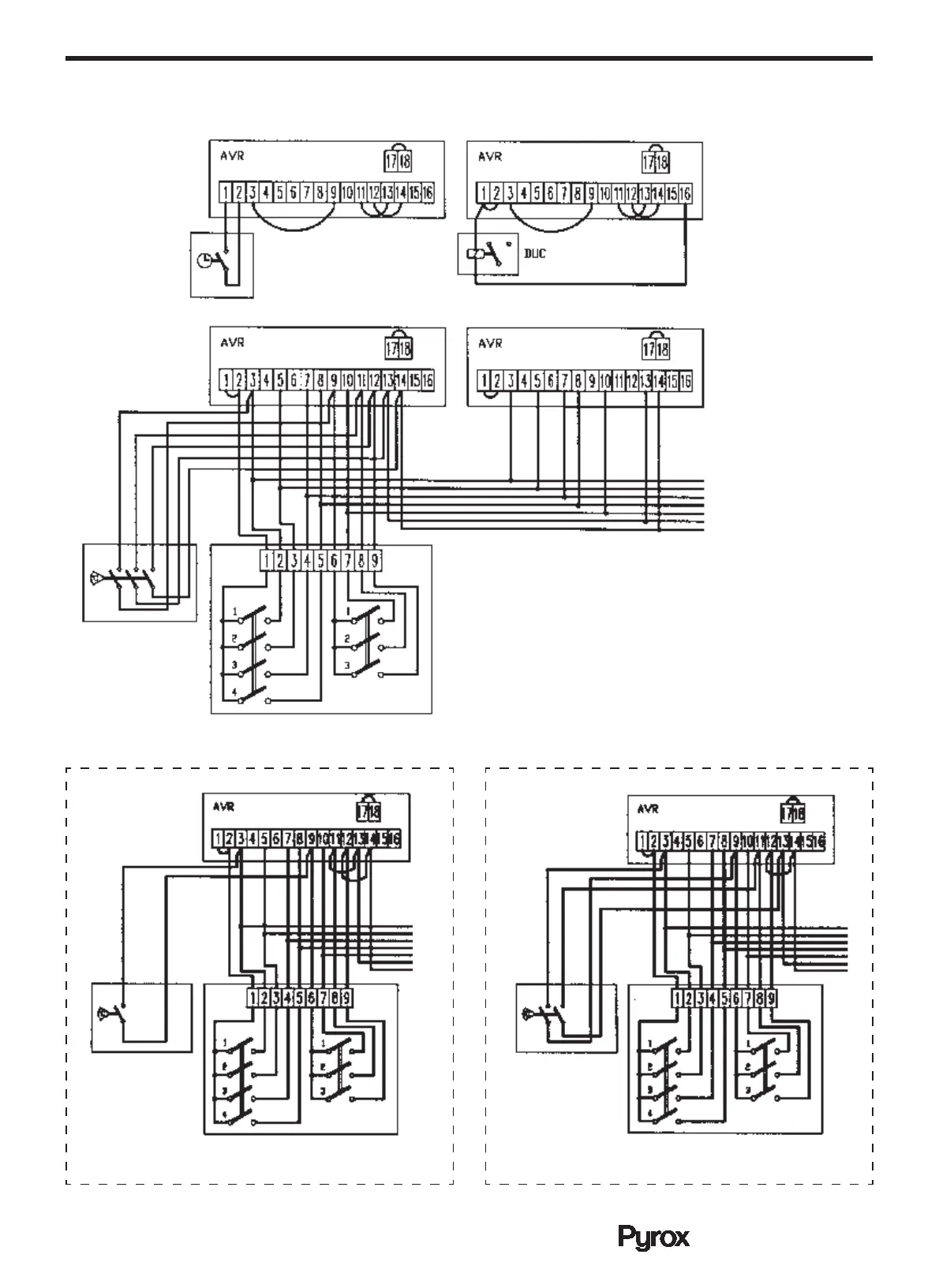

Inkoppling av tillbehör och kontrollpanel
Connection of accessories and control panel
Timer
Dataundercentral
(fastighetsstyrning)
Computing subcentre
(e.g. premises control)
Manöverpanel
Control panel
3-step
thermostat
1-step
thermostat
2-step
thermostat
Manöverpanel
Control panel
Manöverpanel
Control panel
