HeatMaster 6–15kW 6

Omkoppling till 230V 3~

Rewiring for 230V 3~

AVR 6, AVR 9

Y 400V 3~

Δ230V 3~

AVR 12, AVR 15

Y 400V 3~

Δ230V 3~

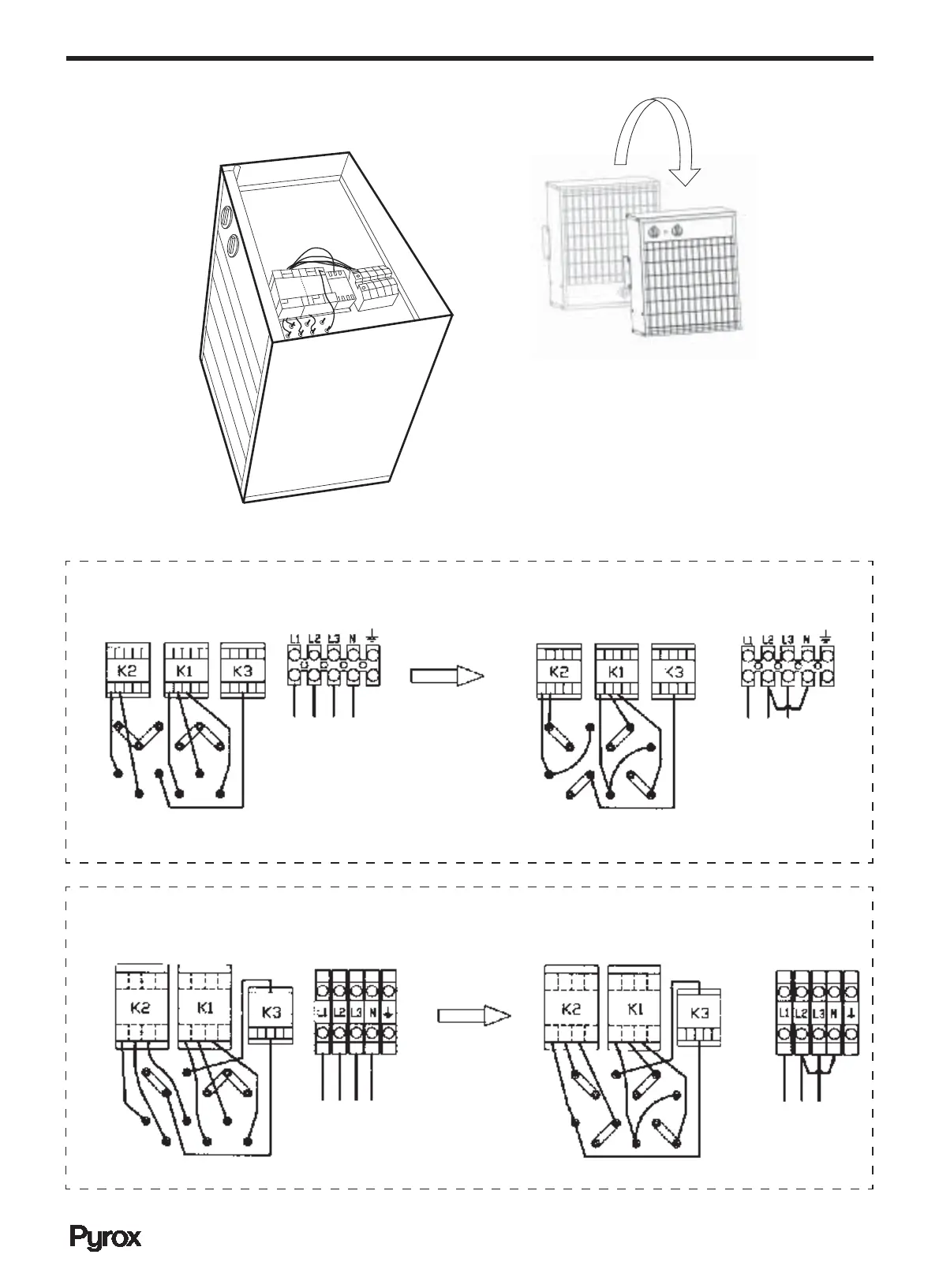

Obs! I kopplingsschemana nedan

visas kopplingsutrymmet sett med

apparaten vänd upp och ner.

Please note! The wiring etc in all

illustrations is shown with the

heater turned upside down.

400V 3N~

230V 3~
