Qbic Technology Co., Ltd.

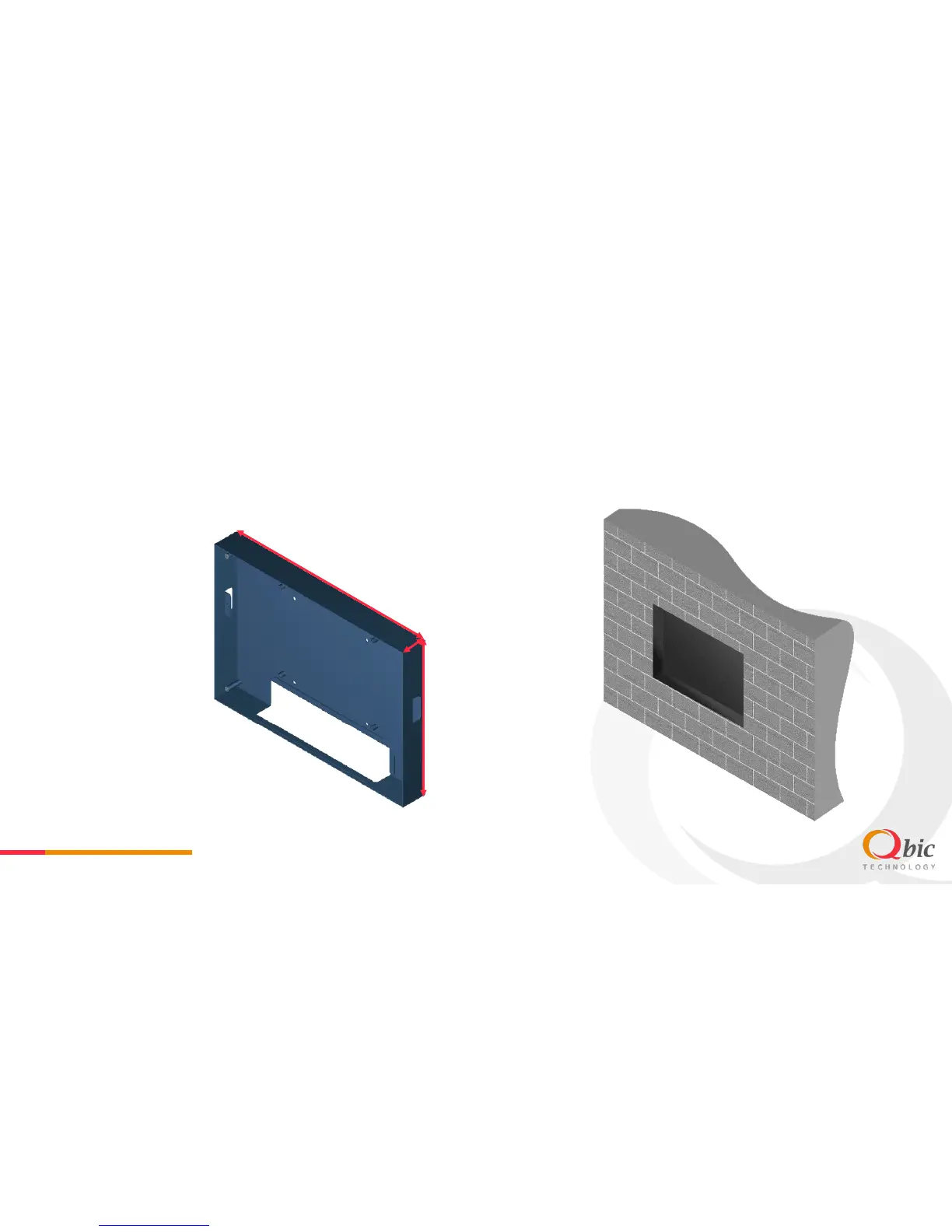

Step 1
Make a cutout on the wall according to the cutout dimension of
the wall metal box (286 x 202 x 34mm).
286mm
202mm
34mm
