qeedo Quick Villa 5 - Assembly; Put Tent on Floor; Extend Poles; Lift Centre Structure

Instruction Sheet Qeedo Quick Up System EN

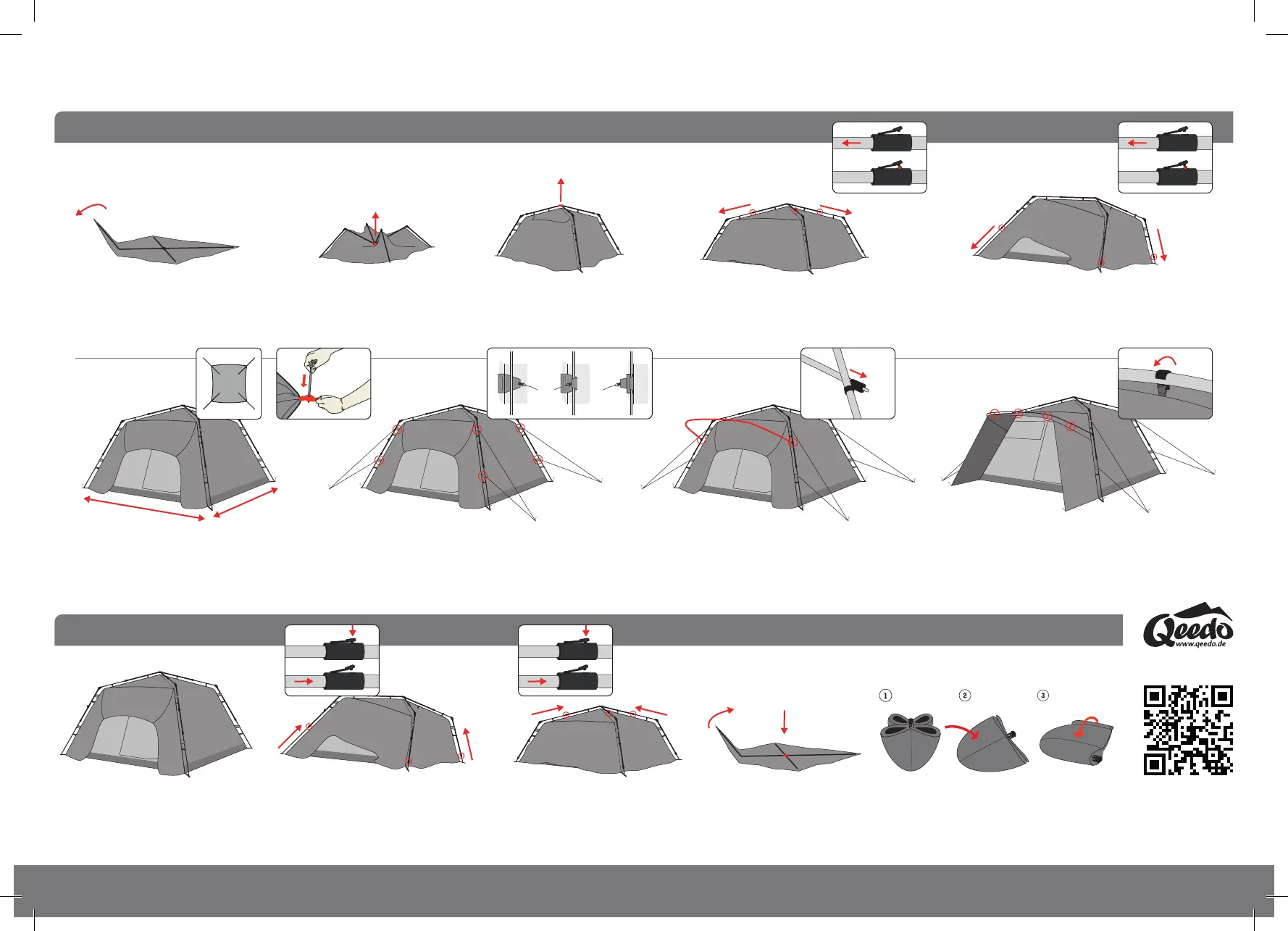

Assembly
Extend each telescopic rod (top) until
the securing pin clicks into place
Lift up the centre of the cross structure Extend each telescopic rod (bottom) until
the securing pin clicks into place
Mount the canopy poles
• Put tent on the oor
• Extend the poles completely
• Pull the corners of the tent outwards
• Peg down in a crosswise manner
• Place the retainer of the guy rope around the pole structure
• Guide the guy rope through the slit and peg down
• Adjust the guy ropes as needed to tension them
1. 3.
4. 2.
Attach canopy and peg down
Disassembly
• Remove all pegs
• Remove canopy poles
• Press the plastic lever to
unlock the securing pin
• Collapse the telescopic rod (bottom)
• Press the plastic lever to
unlock the securing pin
• Collapse the telescopic rod (top)
• Push the cross structure
downward
• SFold the poles towards the centre
Furl the tent
CLICKCONCEPTS GmbH, Ferdinand-Porsche-Straße 4, 73479 Ellwangen - DE, tel.: +49 (7961) 969 869 - 750, fax: +49 (7961) 969 869 - 799, web: www.qeedo.de
Go to www.qeedo.de for
instructional videos on how to
assemble and disassemble the
tent. Or just scan the QR code
with your smartphone.
1.
1. 2. 3. 4. 5.
5. 6. 7 . 8 .
2. 3. 4.
