QEP 10630Q User Manual

-3-
GENERAL MAINTENANCE
1. Oil should not be used on the 10630Q and 10900Q QEP Tile Cutters. Use of oil will
cause eventual gumming and sticking of the movable parts as the oil combines with
dirt and ceramic tile dust – use a soft dry cloth to clean the rails after each use.
2. Wear is normal in the chrome plated rails and can be evenly distributed by occasional
rotation of each of the two rails.
3. The only part routinely needing replacement is the carbide scoring wheel.

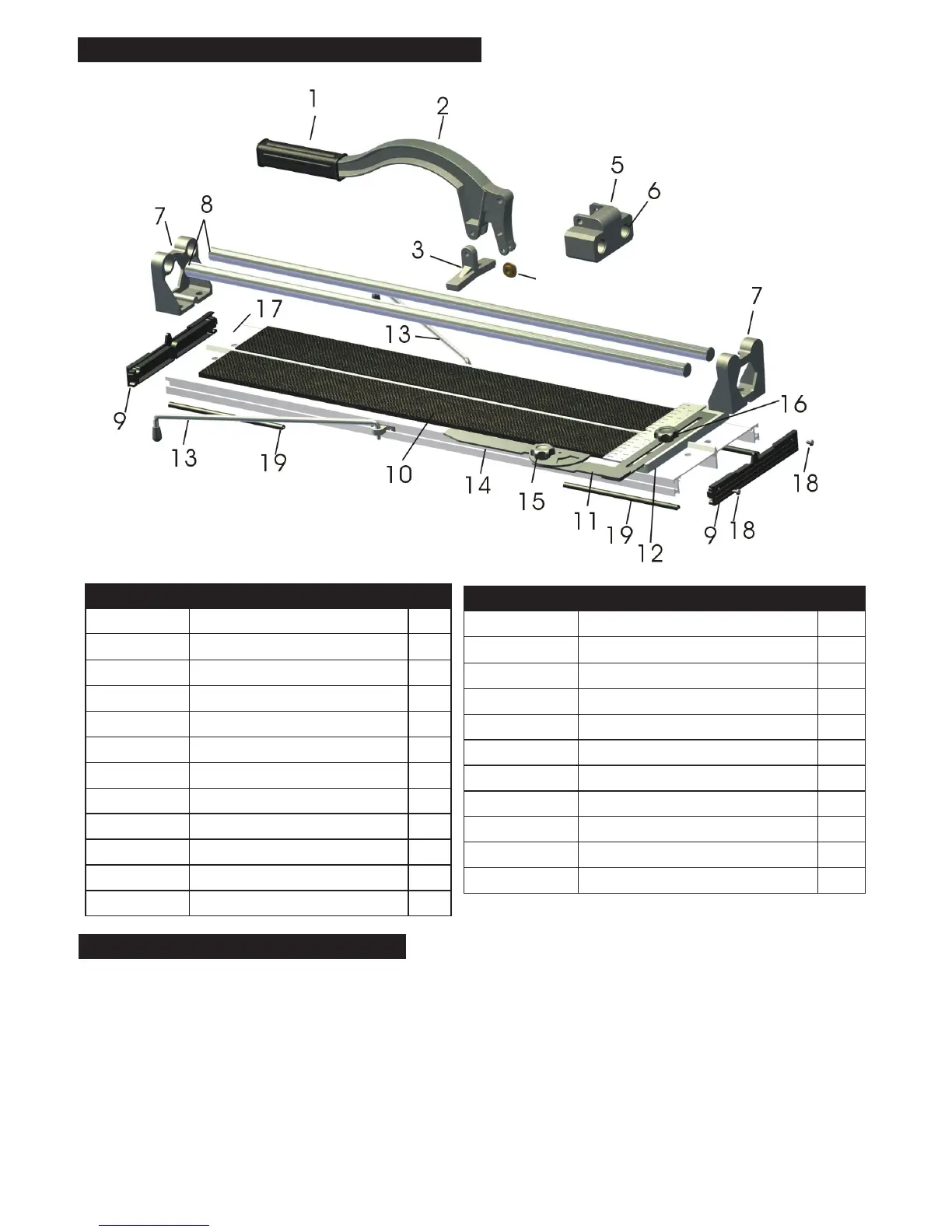

10630Q & 10900Q PARTS LIST
No. Description Qty
10900Q-11 Slide Rule 1
10900Q-12 Guide 1
10630Q-13 Extension Arms (10630Q) 2
10900Q-13 Extension Arms (10900Q) 2
10900Q-14 Angle Guide 1
10900Q-15 Angle Guide Knob 1
10900Q-16 Slide Rule Guide Knob 1
10630Q-17 Base (10630Q) 1
10900Q-17 Base (10900Q) 1
10900Q-18 Screws 4
10900Q-19 Rubber 4
No. Description Qty
10900Q-1 Grip 1
10900Q-2 Handle 1
10900Q-3 Breaker Bar 1
21125Q 7/8'' Cutting Wheel 1
10900Q-5 Slide Assembly 1
10900Q-6 Bearings 2
10900Q-7 Support 2
10630Q-8 Rail Bar (10630Q) 2
10900Q-8 Rail Bar (10900Q) 2
10900Q-9 Non-slip Pad 2
10630Q-10 Sponge Cushion (10630Q) 2
10900Q-10 Sponge Cushion (10900Q) 2
21125Q
