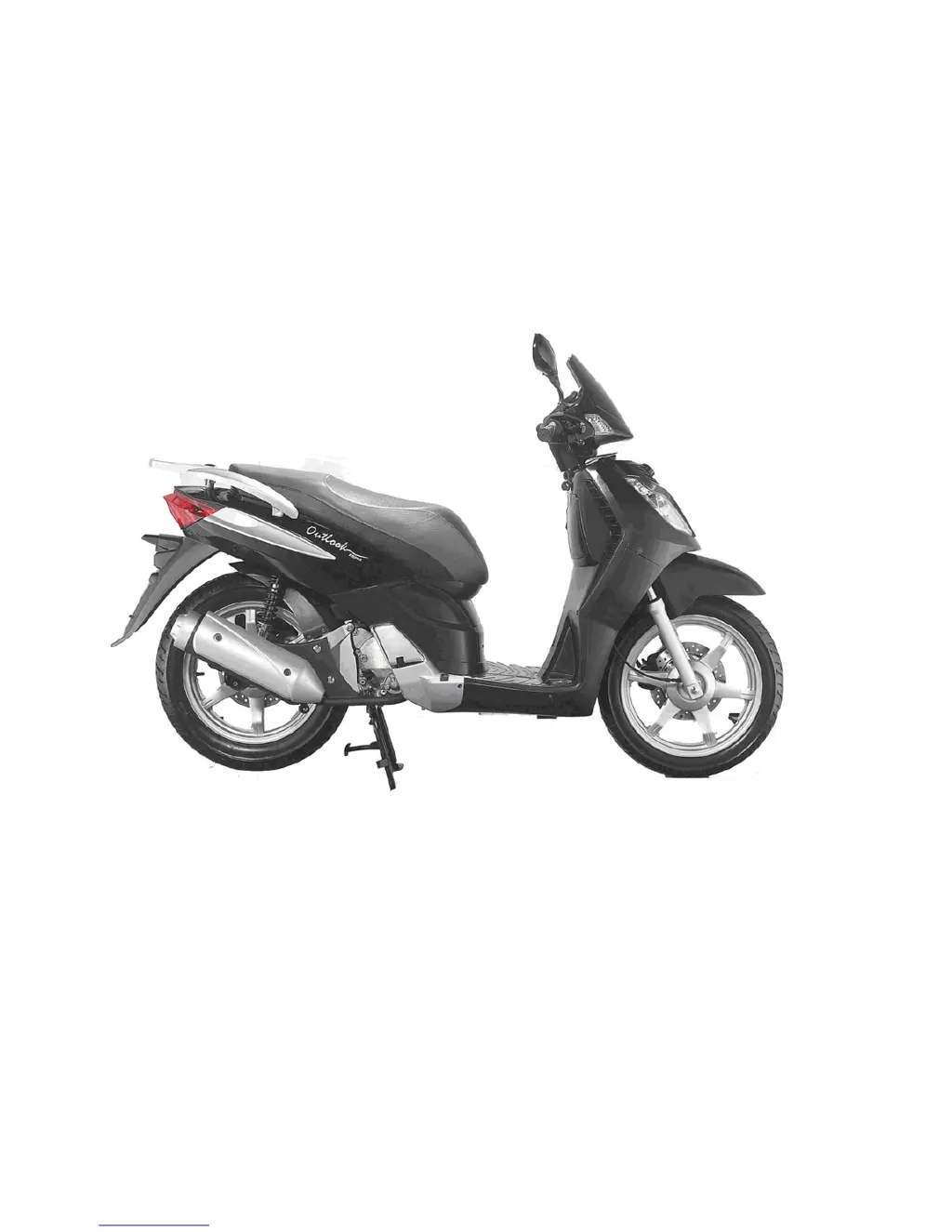

User's operation and maintenance manual for
double-wheel motorcycle QJ150T-10
Zhejiang Qianjiang Motorcycle Co., Ltd

Table of Contents

Questions and Answers

  • R
    rphillipsAug 15, 2025
    What to do if the spark plug of my Qianjiang QJ150T-10 has no flashover?
    • K
      Krystal GallowayAug 15, 2025
      If your Qianjiang Scooter's spark plug has no flashover, the issue could stem from several causes. Begin by replacing the spark plug with a new one and testing again. Ensure the spark plug is properly installed and there's no slack. Check for bad contact of the plug and correct the connections. Other potential causes include a broken main switch (replace it), a faulty charge coil (inspect and replace it), or a bad sparking coil (inspect and replace it).
  • K
    Karen HillAug 23, 2025
    What causes improper charging in a Qianjiang QJ150T-10?
    • K
      Kevin JacksonAug 23, 2025
      Improper charging in your Qianjiang Scooter, whether overdischarge or overcharge, can be due to several reasons. If there's no increase in battery voltage, check the voltage regulator wiring connection. A slack voltage regulator plug should be fixed. If the battery voltage is higher than normal, again check the voltage regulator wiring. A bad battery should be replaced. Also, inspect the red and white wiring lines for open circuits. Finally, ensure proper connections and grounding of the wiring to rule out imperfect earth.
  • V
    Veronica MoranOct 31, 2025
    How to fix a Qianjiang QJ150T-10 Scooter that is difficult to start?
    • T
      Troy WallaceOct 31, 2025
      If your Qianjiang Scooter is hard to start, several factors could be the cause. Begin by checking if there is gasoline in the tank and whether the carburetor has oil. Inspect the oil tube and conduit of the evaporation control system for any clogs. A clogged gasoline filter can also be the culprit, so replace or clean it. Other potential issues include a broken auto oil ring (replace it), a faulty spark plug (replace or clean it), or a broken CDI group (replace it). Also, check the trigger, sparking coil leads, and sparking coil for any breaks or shorts. Finally, the main switch, piston, piston ring, and cylinder head should be inspected for damage or leaks. Other possible causes include bad auto choke actuation, intake air issues, incorrect ignition time, overhigh oil level of carburetor,...
  • D
    Dr. Erica HerreraNov 7, 2025
    Why is my Qianjiang QJ150T-10's velocity impotent?
    • M
      Martin Myers DDSNov 7, 2025
      If your Qianjiang Scooter is experiencing improper gyration, several factors could be the cause. Low compression pressure could be the issue, start by inspecting the air cleaner. A clogged air cleaner may also be the reason, so clean or replace it. Ensure you're using good quality gasoline. Inspect the conduit of the evaporation control system of the firing chamber for any blockages. Also, check for a clogged exhaust pipe. Other potential issues include a faulty auto choke (check or replace it), incorrect ignition time (adjust it), or a broken auto oil ring (replace it). If the compression pressure is normal, inspect the piston and piston ring. Bad timing adjustment can also cause this, so adjust the timing properly. Other possible causes include a clogged carburetor (clean it), a polluted...

Summary

Specification Sheet

Troubleshooting

Difficult to Start or Unable to Start

Step-by-step guide for diagnosing engine starting problems and potential causes.

Improper Engine Gyration (Low Power)

Improper Gyration at Low Speed

Improper Gyration at High Speed

Improper Battery Charging

Diagnosing issues related to battery overcharging or over-discharging and failure causes.

No Spark Plug Flashover Troubleshooting

Inspection and Adjustment

Technical Specifications

Engine Specifications

Constant Maintenance Schedule

Engine Oil and Filter

Engine Oil Level Check

Changing Engine Oil

Air Cleaner Maintenance

Spark Plug Service

Spark Plug Removal

Spark Plug Gap Inspection

Battery Service

Battery Removal

Steps to safely disconnect and remove the motorcycle battery.

Battery Charging State Inspection

Battery Charging Procedure

Carburetor Service

Carburetor Idle Adjustment

Ignition Timing Check

Fault Diagnosis (Carburetor)

Diagnosing common carburetor issues like bad startup and fuel system blockage.

Cylinder Pressure Test

Carburetor Disassembly and Examination

Steps for disassembling and examining carburetor components.

Carburetor Installation

Carburetor Adjustment

Battery and Charging System

Fault Diagnosis (Battery;Charging)

Diagnosing common issues within the battery and charging system.

Battery Service

Detailed procedures for battery inspection, disassembly, and charging.

Charging System Inspection

Procedures for testing and inspecting the motorcycle's charging system.

Voltage and Current Regulator

Inspection and testing of the voltage and current regulator component.

Alternator Charge Coil

Alternator Disassembly and Installation

Ignition System

Fault Diagnosis (Ignition System)

Diagnosing common issues within the ignition system.

Ignition System Inspection

Procedures for inspecting primary voltage, charge coil, and trigger.

CDI Group Service

Ignition Coil Service

Trigger System Service

Startup System

Fault Diagnosis (Startup System)

Common failure causes for the startup system, including unable to start or weak rotation.

Starter Motor Service

Procedures for disassembly, inspection, assembly, and installation of the starter motor.

Start Relay Service

Inspection and testing of the start relay's actuation and voltage.

Lights, Switches, and Instruments

Fault Diagnosis (Lights;Switches)

Main Switch Service

Brake System

Brake System Fault Diagnosis

Diagnosing common brake issues like bad braking quality and slow response.

Front Hydraulic Brake Service

Procedures for disassembly, inspection, and installation of the front hydraulic brake.

Rear Hydraulic Brake Service

Procedures for disassembly, inspection, and installation of the rear hydraulic brake.

Front Wheel and Suspension

Fault Diagnosis (Front Wheel;Suspension)

Diagnosing issues like stiff steering, unstable direction, and wheel rotation problems.

Front Wheel Service

Procedures for front wheel disassembly, inspection, and replacement of bearings.

Direction Handle Service

Front Fork Service

Rear Wheel and Suspension

Fault Diagnosis (Rear Wheel;Suspension)

Diagnosing rear wheel run-out and shock absorber softness.

Rear Wheel Service

Procedures for rear wheel disassembly, inspection, and installation.

Rear Shock Absorber Service

Disassembly and installation procedures for the rear shock absorber.

Lubrication System

Fault Diagnosis (Lubrication System)

Diagnosing issues like low oil level, oil leaks, and engine burnout.

Oil Pump Service

Procedures for disassembling, inspecting, and installing the oil pump.

Cylinder Head, Cylinder, and Piston

Fault Diagnosis (Cylinder Components)

Diagnosing low or high compression pressure and abnormal cylinder noise.

Cylinder Head Service

Procedures for disassembling and inspecting the cylinder head components.

Cylinder Head Component Examination

Inspecting bearings, camshaft, rocker arm, and valve components.

Valve Service

Procedures for valve disassembly, examination, and measuring spring length.

Valve Guide Replacement

Steps for replacing valve guides due to excessive clearance.

Valve Seat Shaping

Procedures for grinding and shaping the valve seats.

Valve Installation

Steps for installing valve springs, lock clips, and valves.

Crankcase, Clutch, and Actuating Lever

Fault Diagnosis (Crankcase;Clutch)

Cylinder Body Service

Piston Service

Piston Installation

Cylinder Installation

Drive Disk, Clutch, and Driven Wheel

Fault Diagnosis (Drive Disk;Clutch)

Left Crankcase Cover Service

Drive Disk Service

Clutch and Driven Wheel Service

Clutch and Driven Wheel Disassembly

Driven Wheel Bearing Replacement

Clutch and Driven Wheel Combination

Drive Disk, Clutch, Driven Wheel Installation

Decelerator (Gear Case)

Fault Diagnosis (Decelerator)

Gear Case Service

Crankcase Service

Fault Diagnosis (Crankcase)

Crankcase Disassembly and Inspection

Crankcase Installation

Cooling System

Fault Diagnosis (Cooling System)

Thermostat Service

Radiator Service

Exhaust Emission and Control System

Regular Maintenance and Emission Standards

Exhaust Control System Function

Catalyst Converter System

Idle Speed Emission Control
