Note about Fluorinated Gasses
1. This air-conditioning unit contains fluorinated gasses. For specific information on the type of gas and
the amount, please refer to the relevant label on the unit itself.
2. Installation, service, maintenance and repair of this unit must be performed by a certified technician.
3. Product uninstallation and recycling must be performed by a certified technician.
4. If the system has a leak-detection system installed, it must be checked for leaks at least every 12
months.
5. When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.
6. This air-conditioning unit is a hermetically sealed unit that contains fluorinated gasses.

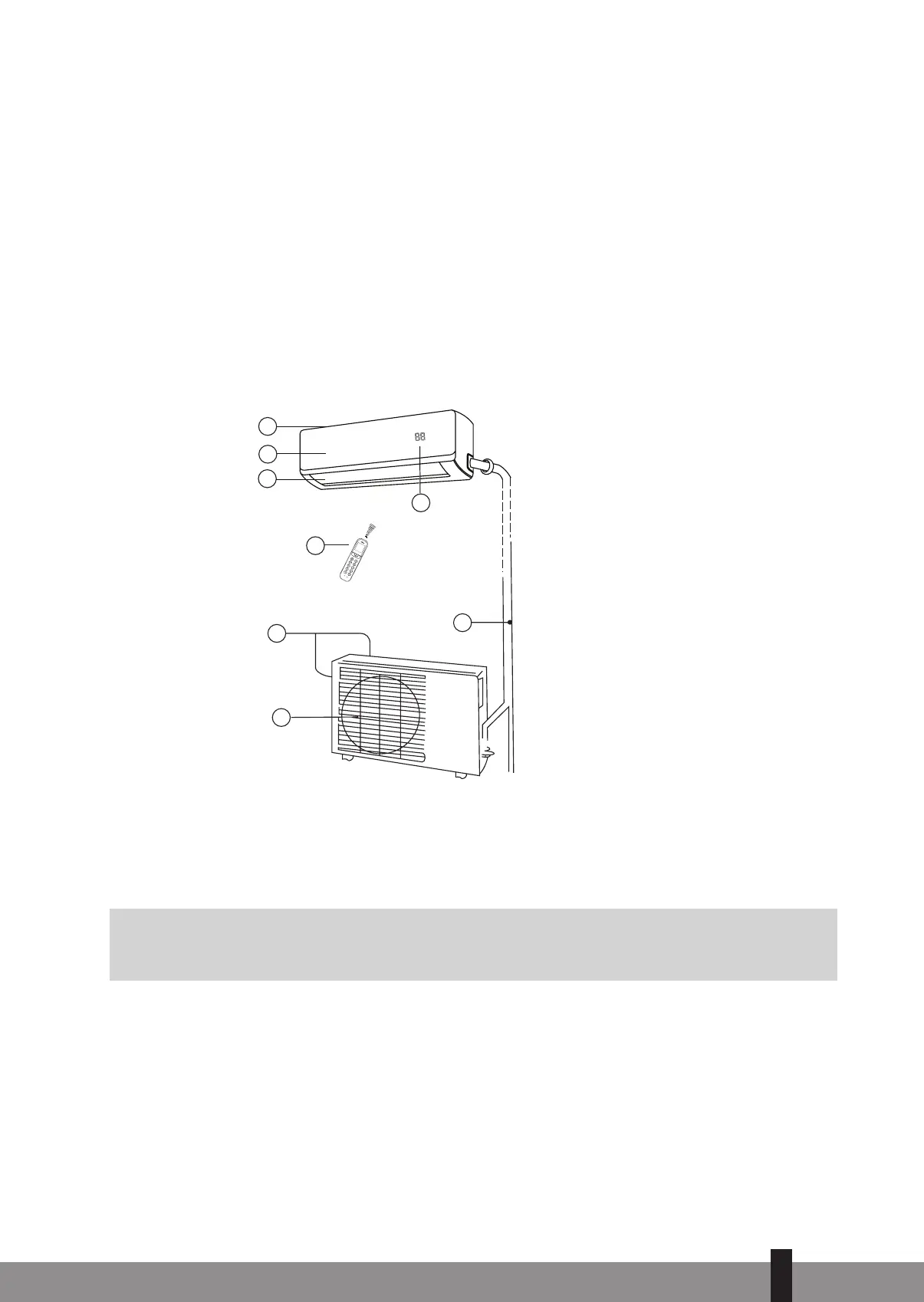

B PART NAMES
INDOOR UNIT Indoor unit
Air filter (pull out)
Front panel
Louver
Display window
Remote controller
OUTDOOR UNIT Outdoor unit
Connecting pipe, drain hose (For
S-models connecting pipe not included)
Air inlet (side and rear)
Air outlet
5
6
7
8
2
1
4
3
G
NOTE!
All the pictures in this manual and on the gift box are for explanation and indication purpose only.
They may be slightly different from the air conditioner you purchased. The actual shape shall prevail.
