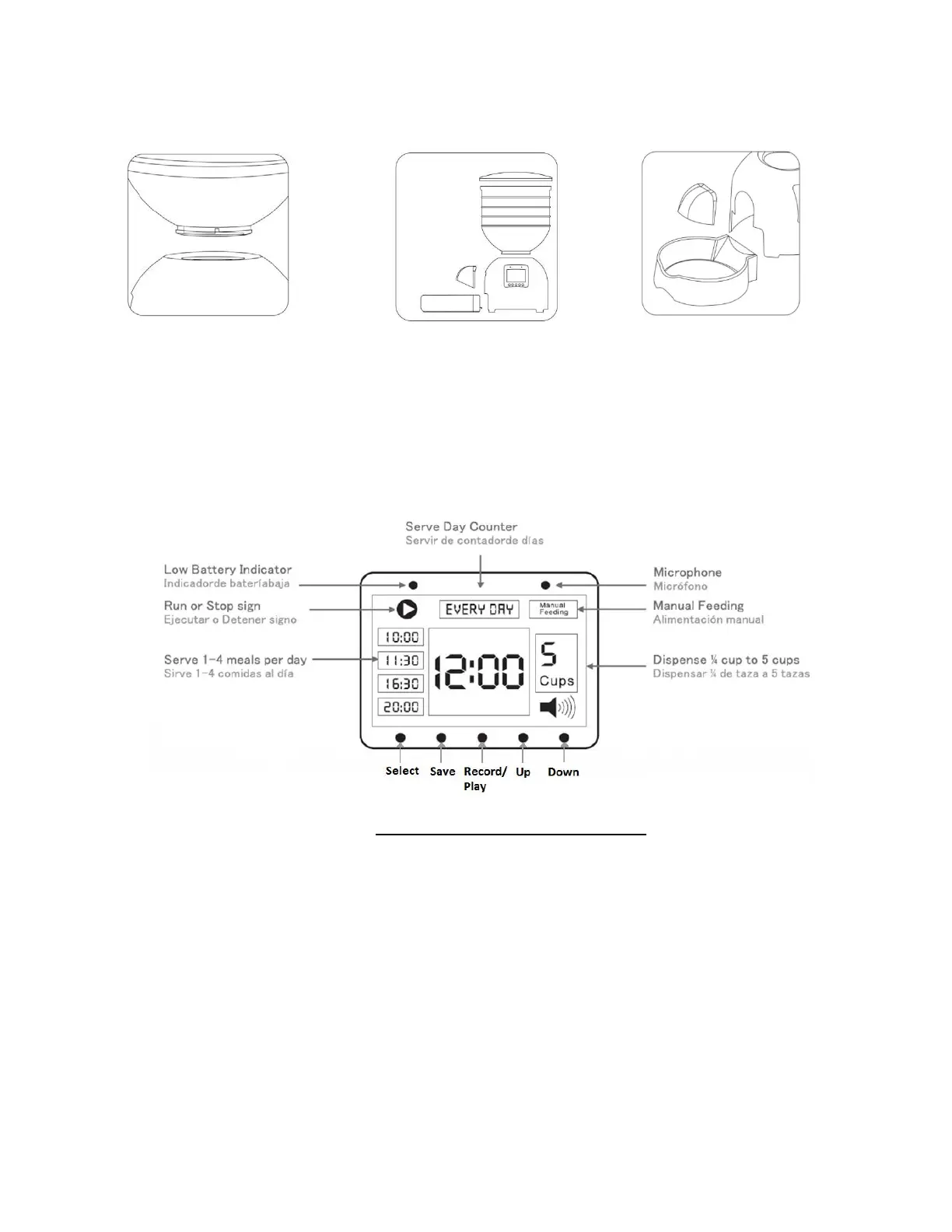

ASSEMBLY INSTRUCTIONS:
(A) (B) (C)
1) Align and insert hopper into base. (A)
2) Twist clockwise until hopper locks into position. (A)
3) Place lid and align the arrows to the hopper. (B)
4) Twist and lock into place. (B)
5) Insert nozzle cap from the top down and lock in. (C)
6) Insert bowl into base by lowering and connecting the hooks into base. (C)
Function of the Control Panel Keys
•
Select—For choosing different options
• Save—To save the current setting
• Record/Play—Record or play your customized voice message
• Up—Moving forward on selection
•
Down—Moving backward on selection
