2.5 Install 1N4007 diodes
Install the six 1N4007 diodes D1-D6.

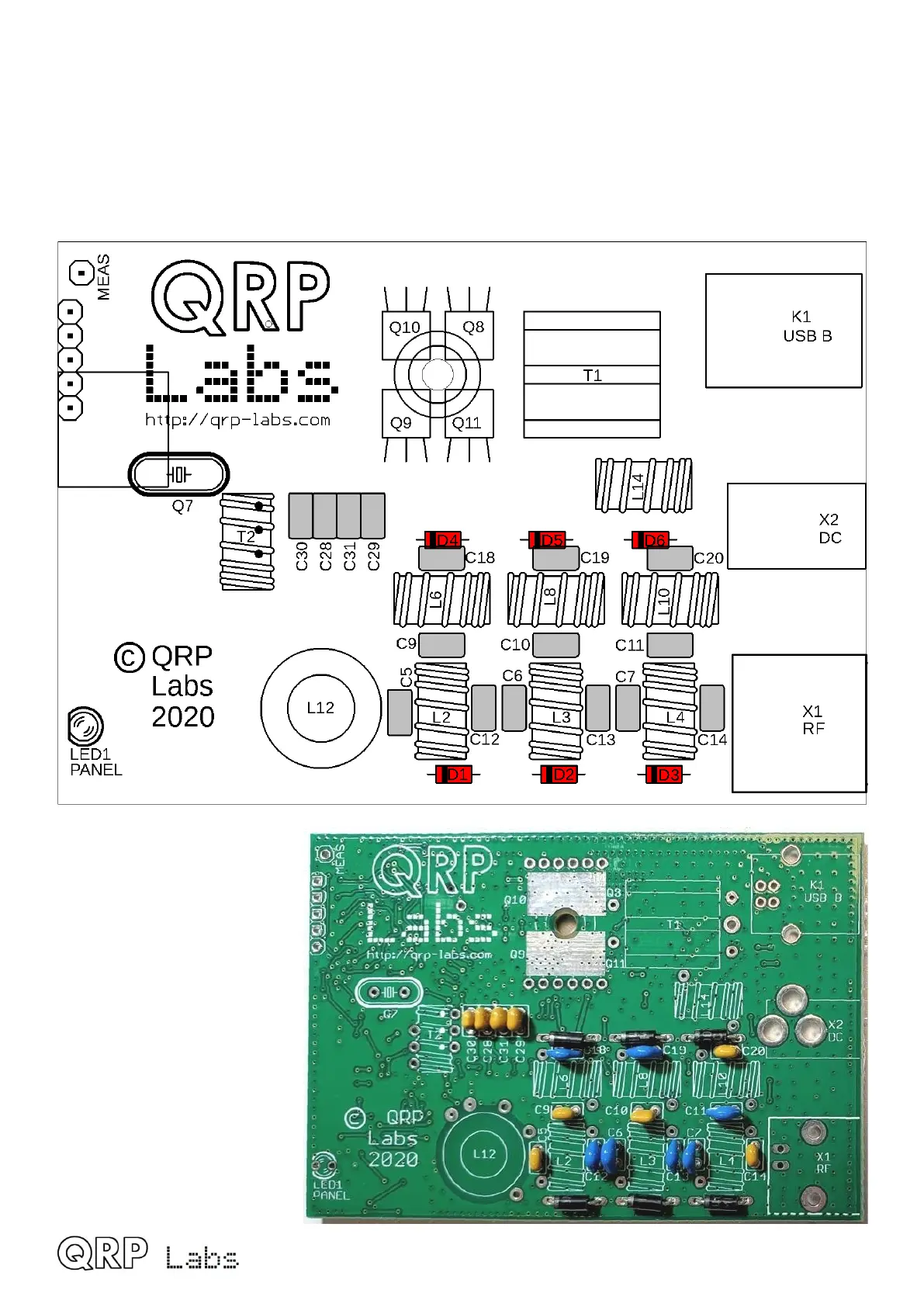

Pay attention to the orientation of the diodes which is critically important. The diodes have a black
body and a white stripe. The white stripe end must be aligned with the white stripe on the image
on the PCB silkscreen. In the diagram below, all the white strip ends of the diodes are on the left
of each diode position.
So far, the assembly should
look like this →
