2.6 Install PA transistors
Install the transistors in the positions shown, with their flat faces flush against the PCB.
Use the 12mm M3 bolt, washer and nut to firmly press the transistor faces against the PCB, as
shown.

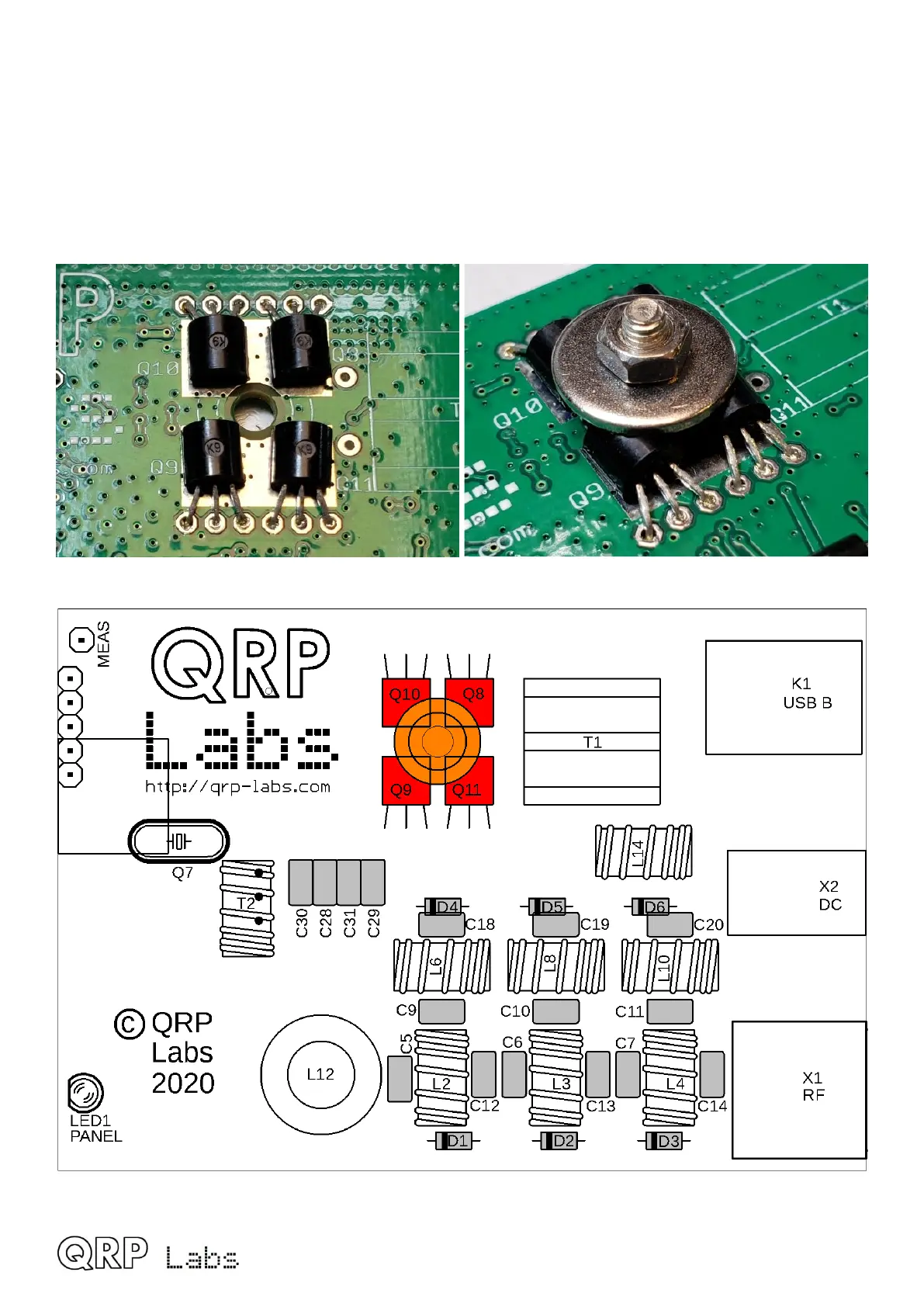

Refer to the diagram and photographs below.
