TD-001531-01-C 4

Contents

Quantity ShippedPart Name

Not SuppliedElectrical box (1-gang - closed box) NA or International

Not SuppliedCables – RJ45, CAT-5

1 Kit (NA or Int.)

MP-MFC Unit / Termination plug / 2 machine screws with push-

nuts (installed) for metal electrical box. 2 thread-forming screws

for plastic electrical box / 2 push-nuts (North American)

MP-MFC Unit / Termination plug (International)

1 Kit (NA or Int.)

Trim-plate / 2 screws (North American)

Trim-plate / 2 screws, 2push nuts (International)

1Quick Start Guide TD-001531-01

1Warranty TD-000453

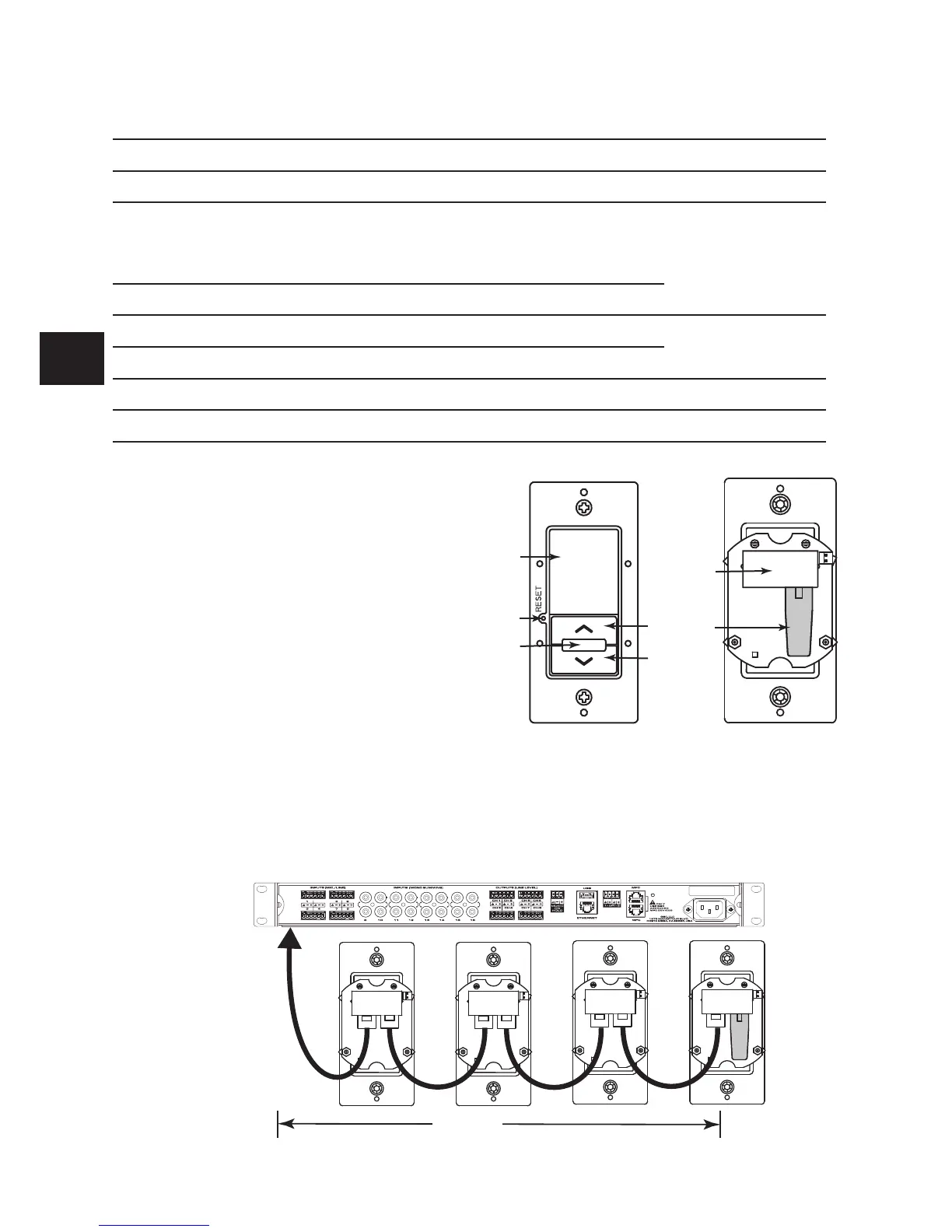

Description

1. Display

2. Reset

3. Function

4. Navigate up / Increase

5. Navigate down / Decrease

6. Dual RJ45 Connector block (control &

power +15VDC from MP-M))

7. Termination Plug - required for last

unit in a run

Requirements

• Maximum Units per Run – 4

• Maximum Units per MP-M (2 ports) – 8

• Maximum Run Length – 250 m total (cable length)

250 m

MP-M
