QSC MP-MFC-NA-WH User Manual

TD-001531-01-C 5
EN

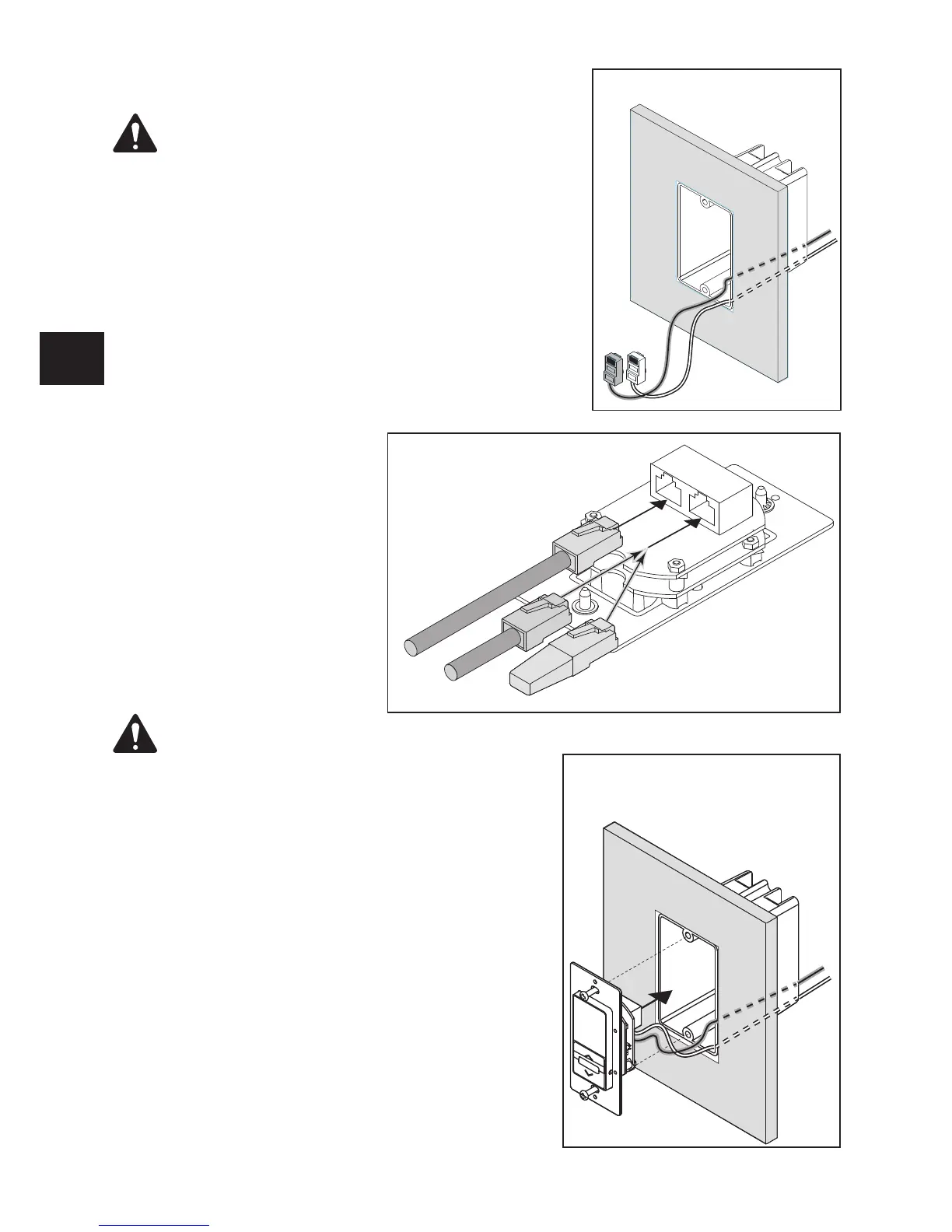

Installation
NOTE: Use closed electrical box.
1. Run Cables; provide for stress relief.
a. From MP-M or previous MFC unit
b. To next daisy-chained MFC unit, or
Termination plug.
2. Connect cables
a. From MP-M or previous MFC in a daisy-chain
b. To next daisy-chained
MFC unit or
c. Termination Plug,
required on last MFC
in a daisy-chain.
North American
Installation
CAUTION!: Do not
force cables into electrical box.
3. Attach the MFC to the electrical box.
• For metal electrical box use two installed
machine screws.
• For plastic electrical box:
a. Remove the two installed machine screws
and push-nuts.
b. Insert the two thread-forming screws in
the two vacated holes.
c. Install the push-nuts onto the two thread-
forming screws.
1 Run cables
a b
2 Connect cables and
termination plug
b
c
a
1 Run cables
a b
2 Connect cables and
termination plug
b
c
a
3 Install MFC onto
electrical box
4 Install trim plate
