System Hardware Core 250i Core 500i
Description System processor and control engine
Front Panel Controls LCD page forward momentary switch
Unit ID button momentary switch
Clear settings momentary switch
Front Panel Indicators Power On: Blue LED; Device Status: Tri-color LED
Audio Signal: 32 Tri-color LEDs
Card Status: 8 tri-color LEDs
240 x 64 monochrome LCD graphics display

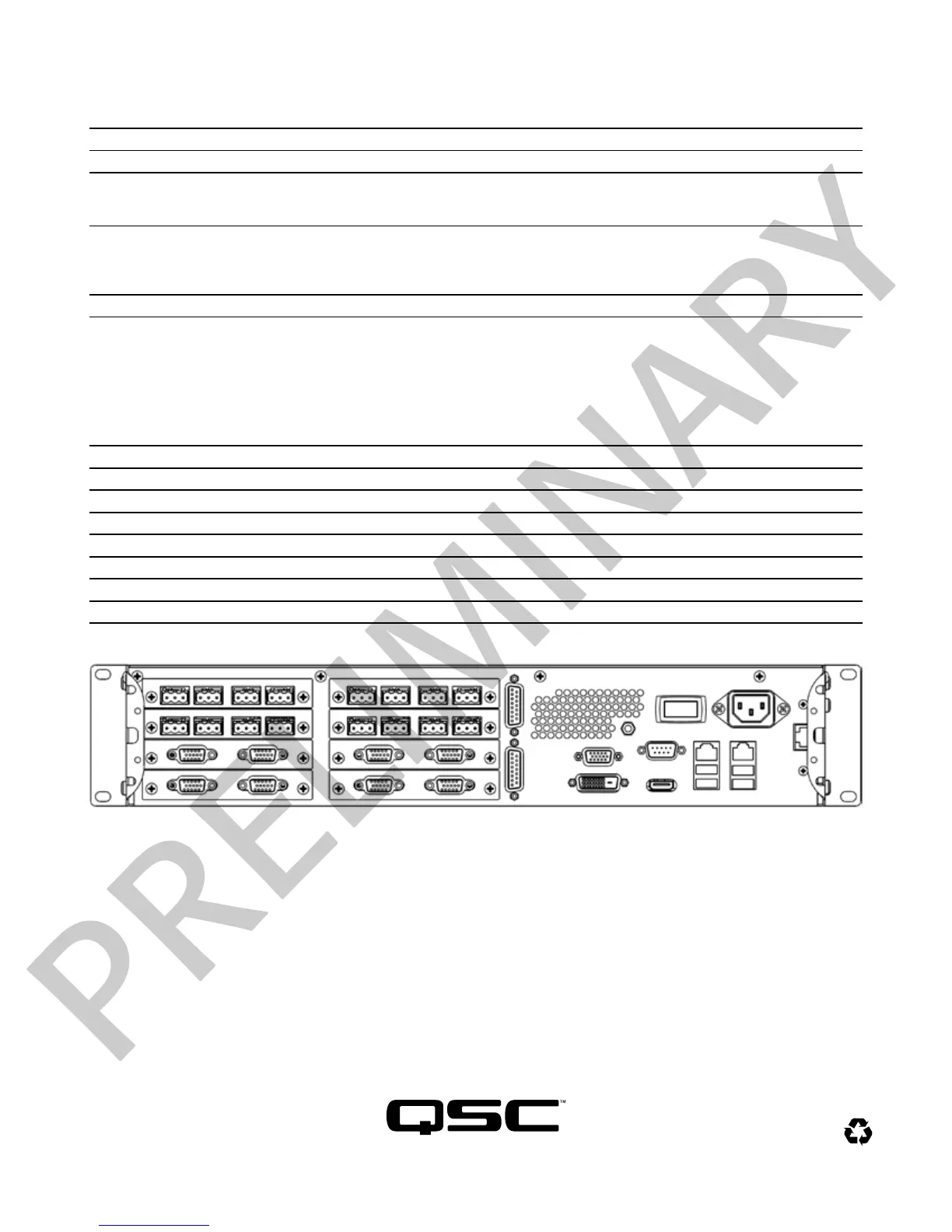

Rear Panel Controls Power Switch
Rear Panel Connectors RS-232: DE-9 (male 9-pin D shell connector)
Video Out: HD-15 (female 15-pin D shell connector); DVI-D, HDMI (500i only)
Aux USB ports: USB host (type A) x4
Aux Network Port: RJ45 10/100/1000 Mbps (switchable between Q-Sys LAN B or Aux Network Port on 250i model)
GPIO ports: DA-15 (female 15-pin D shell connector) x2
Q-Sys Network LAN A: RJ45 1000 Mbps only
Q-Sys Network LAN B: RJ45 1000 Mbps only (switchable between Q-Sys LAN B or Aux Network Port 10/100/1000 Mbps on 250i model)
IEC inlet: AC mains power connector
Available peripherals Page Station (H)&(G), I/O Frame, I/O-22, TSC-8, TSC-3
Network Channel Capacity 64 128
Audio I/O Capacity 8 card slots, up to 32 channels; Requires purchase of Q-Sys Type 2 audio I/O cards: CB, CIML4, CIML4-HP, COL4, CODP4, CAES4, CCN32
Line Voltage Requirements 100 VAC - 240 VAC, 50 - 60 Hz
Current Draw 1.5A (120V mains) 1.7A (120V mains)
Thermal 500 BTU/h (typical) 650 BTU/h (typical)
Dimensions (HWD) 3.5” x 19” x 15” (89 mm x 482.6 mm x 381 mm)
Included Accessories 6 ft UL/CSA/IEC line cord, User Manual, Software CD
1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
Core 250i/500i Spec Sheet 01/16/12
© 2012 QSC Audio Products, LLC. All rights reserved. QSC and the QSC logo are registered trademarks of QSC Audio Products, LLC in the U.S. Patent and Trademark office and other countries.
Q-Sys is a trademark of QSC. Intel and the Intel logo are registered trademarks of the Intel corporation.
Core 250i | Core 500i | Specifications
