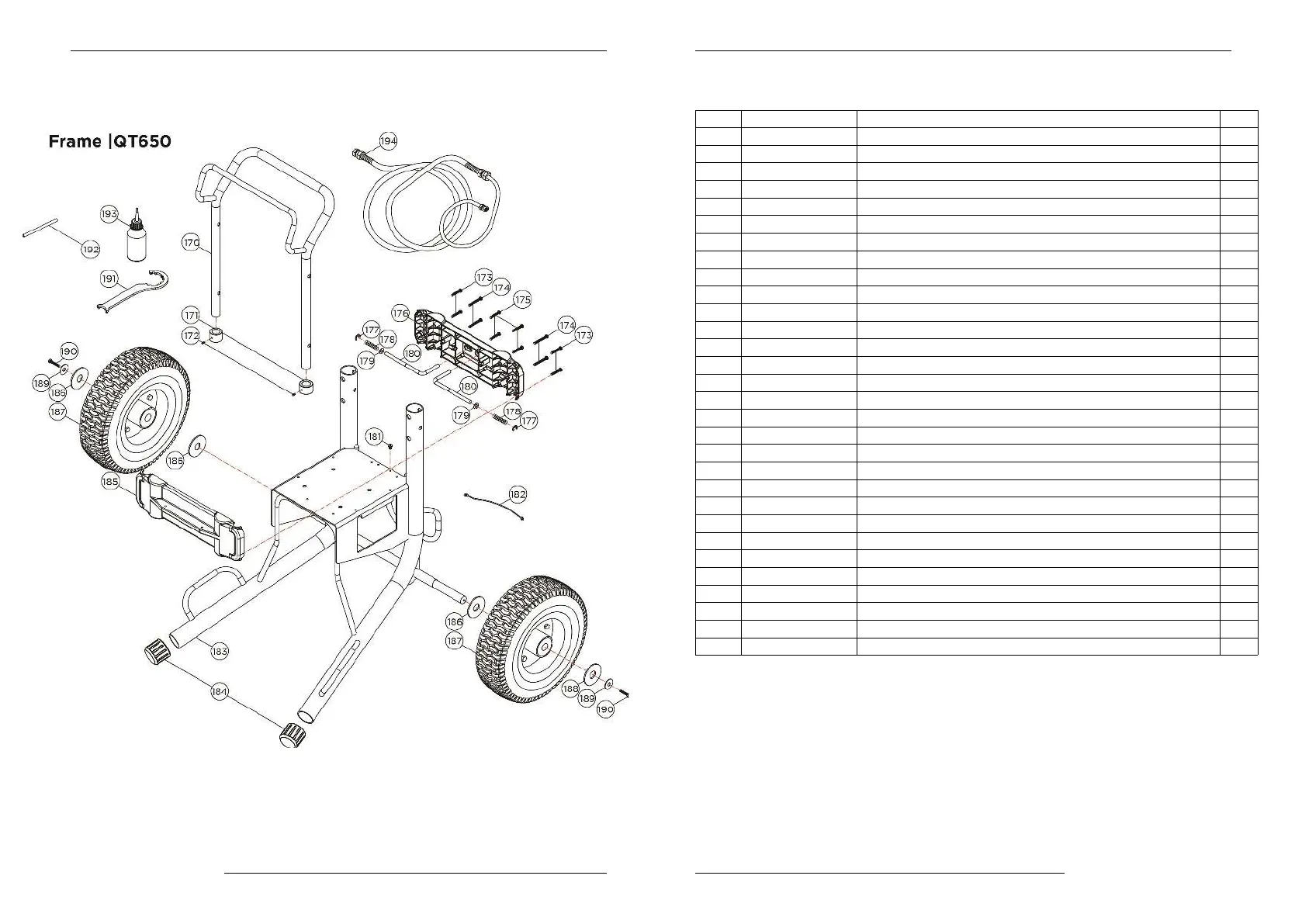

QTech QT650 Airless Sprayer
ITEM PRODUCT CODE DESCRIPTION QTY
170 12-095 HANDLE 1
171 12-082 HEAD LOCKING KNOB (Ø22.5xØ32x18) 2
172 12-135 SOCKET SET SCREW (M4x4xP0.7) 2
173 12-132 PANHEAD TAPPING SCREW-B (M5x25) 4
174 12-134 PANHEAD TAPPING SCREW-B (M5x40) 4
175 12-133 PANHEAD TAPPING SCREW-B (M5x30) 4
176 12-109 CROSSPIECE-REAR (BLACK) 1
177 12-152 E-CLIP (E-7) 2
178 12-077 SPRING (Ø1.0xØ8.5xØ10.5x9Tx35L) 2
179 12-167 FLAT WASHER (Ø8xØ16x1.5) 2
180 12-096 RELEASE LEVER (Ø8x132.9x60) 2
181 12-142 PANHEAD MACHINE SCREW (M5x6xP0.8) 1
182 12-650-25 EARTH WIRE (Ø3x120MM) 1
183 12-081 FRAME 1
184 12-113 END CAP 2
185 12-110 CROSSPIECE-FRONT (BLACK) 1
186 12-075 FLAT WASHER 4
187 12-121 WHEEL 2
188 12-075 FLAT WASHER 4
189 12-650-26 FLAT WASHER (Ø1/4xØ32x2) 2
190 12-168 HEX BOLT (M6x16xP1.0) 2
191 12-071 DUAL PURPOSE WRENCH 1
192 12-001 PACKING NUT TOMMY BAR 1
193 Q400-005 Q-LUBE PISTON LUBRICANT 1
194 63815FFTD TOUGHFLOW HOSE 3/8 x 15M 1
195 61401EETD TOUGHFLOW HOSE 1/4 x 1M 1
