QTech QT650 User Manual

28
Fluid Manifold
SprayForthedecorator.com

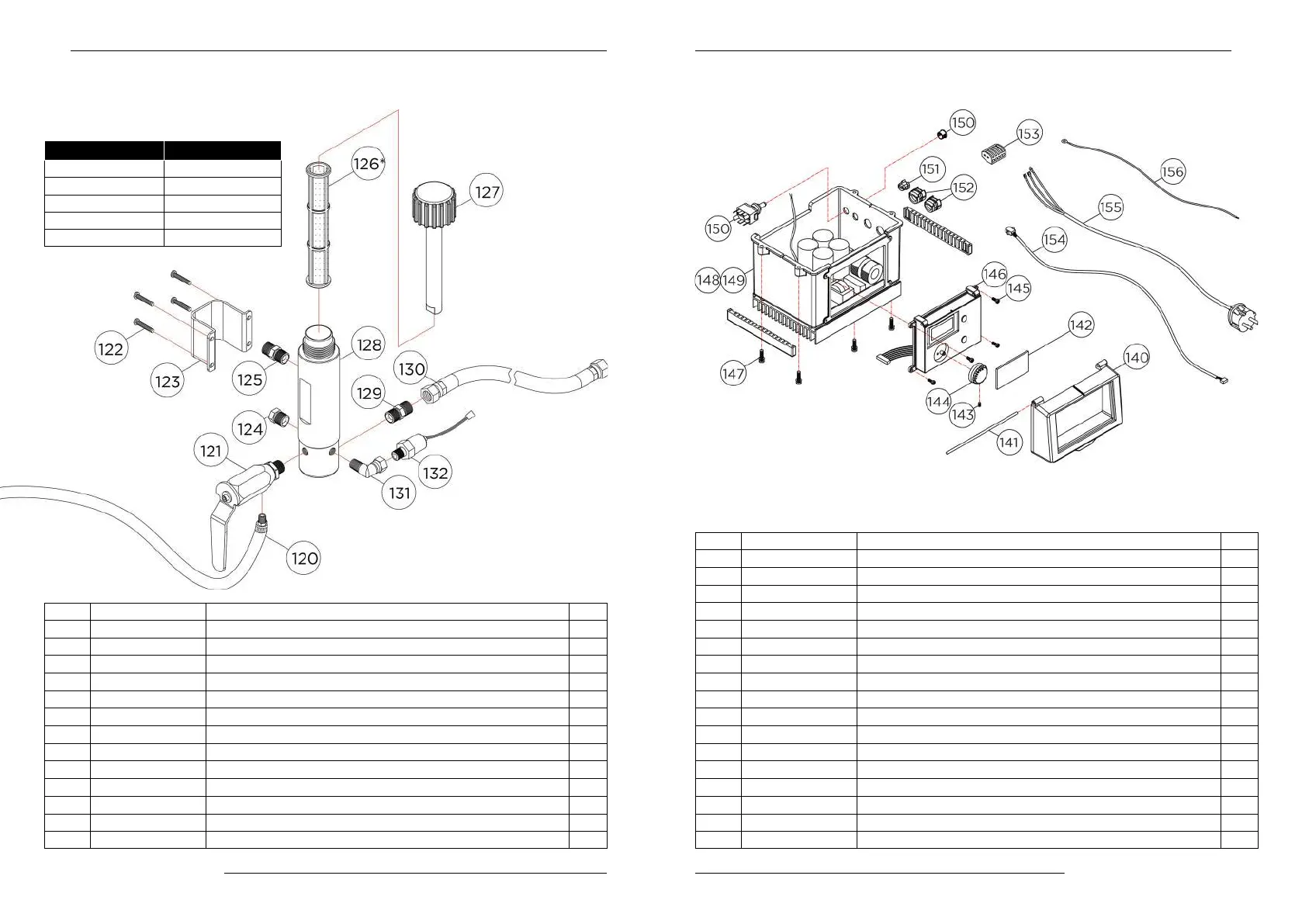

ITEM PRODUCT CODE DESCRIPTION QTY
120 12-650-20 DRAIN TUBE (PT1/4"x0.5M) 1
121 12-650-21 PRIMING VALVE 1
122 12-147 PANHEAD MACHINE SCREW-W/WASHER (M5x35xP0.8) 4
123 12-070 BRACKET 1
124 12-124 BOLT (PT 3/8") 1
125 12-118 OUTPUT NIPPLE (PT 3/8" x 3/8"-19PF) 3
126 Quick ref table MANIFOLD FILTER 1
127 12-053 FILTER CAP 1
128 12-650-011 FILTER HOUSING 1
129 12-118 OUTPUT NIPPLE (PT 3/8" x 3/8"-19PF) 3
130 12-112 HIGH PRESSURE HOSE (3/8"-19PF) 1
131 12-122 ELBOW FITTING (PT 1/4"-19 x 1/4"-19UNF) 1
132 12-065 PRESSURE TRANSDUCER (110V&220V) 1
Manifold Filter Quick reference
MESH/COLOUR CODE
15 mesh / grey QF0571030
60 mesh / black QF0571060
100 mesh / blue QF0571100
200 mesh / red QF0571200
29
Control Box
QTech QT650 Airless Sprayer
ITEM PRODUCT CODE DESCRIPTION QTY
140 12-111 CONTROL BOX CAP (BLACK) 1
141 12-085 HINGE PIN (Ø4x175) 1
142 12-103 WINDOW (76x42x2) 1
143 12-135 SOCKET SET SCREW (M4x8xP0.7) 1
144 12-064 SUCTION POWER CONTROL DIAL (BLACK) 1
145 12-168 PANHEAD TAPPING SCREW-B (M4x10) 4
146 12-067 ELECTRONICS UNIT (110V&220V) 1
147 12-146 PANHEAD MACHINE SCREW-W/WASHER (M5x20xP0.8) 6
148 12-055 ELECTRONICS UNIT (110V) 1
149 12-055 ELECTRONICS UNIT (220V) 1
150 12-169 SWITCH-3 POSITION 1
151 12-120 CABLE GLAND (SB5M-1) 1
152 12-119 CABLE GLAND (SB8R-3)(7P-2) 2
153 12-123 5 WIRE PUSH-IN CONNECTOR 1
154 12-115 WIRE LEAD 1
155 12-066 POWER SUPPLY CABLE (VDE-1.5x3Cx7M-H07RNF) 1
156 12-126 EARTH WIRE (Ø3x210MM) 1
