Quadra-Fire 2100 Millennium User Manual

2100 ACT Millennium Wood Stove
Page 6 250-6931C November 3, 2004
R
MINIMUM CLEARANCES TO COMBUSTIBLE MATERIALS In Inches & (Millimeters)
NOTE: All "A" , "C" and "F" Dimensions are to the inside diameter of the flue collar.
A B C D E F G H
INSTALLATION: Full Vertical OR Horizontal with Minimum 2 Foot Vertical Off Stove Top
SINGLE WALL PIPE 16 (406) 13.5 (343) 19 (483) 11.5 (292) 9.5 (241) 17(432) 43 (1092) 18 (457)*
DOUBLE WALL PIPE 9 (229) 6 (152) 19 (483) 11 (279) 8 (203) 16 (406) 43 (1092) 5 (127)
INSTALLATION: 90° Elbow Off Top of Stove Through Backwall
SINGLE WALL PIPE 16 (406) 13.5 (343) 19 (483) 11.5 (292) 9.5 (241) 17 (432) 43 (1092) 18 (457)*
DOUBLE WALL PIPE 9 (228) 6 (152) 19 (483) 11 (279) 8 (203) 16 (406) 43 (1092) 5 (127)
INSTALLATION: ALCOVE Six inch (6") (152mm) diameter listed double wall air insulated connector pipe with UL
103 HT listed factory-built Class "A" chimney, or a masonry chimney. (Mobile Home must be equipped with a spark
arrestor). Maximum depth of alcove shall be no more than 48"(1220mm) with a minimum height of 43" (1092mm) to top
of unit, and the referenced clearances.
DOUBLE WALL PIPE 11.5 (292) 9.5 (241) 22 (559) 14 (356) N/A N/A 43 (1092) **
* NPFA MINIMUM CLEARANCE - NOT TESTED
** SEE PIPE MANUFACTURERS CLEARANCES - NOT TESTED

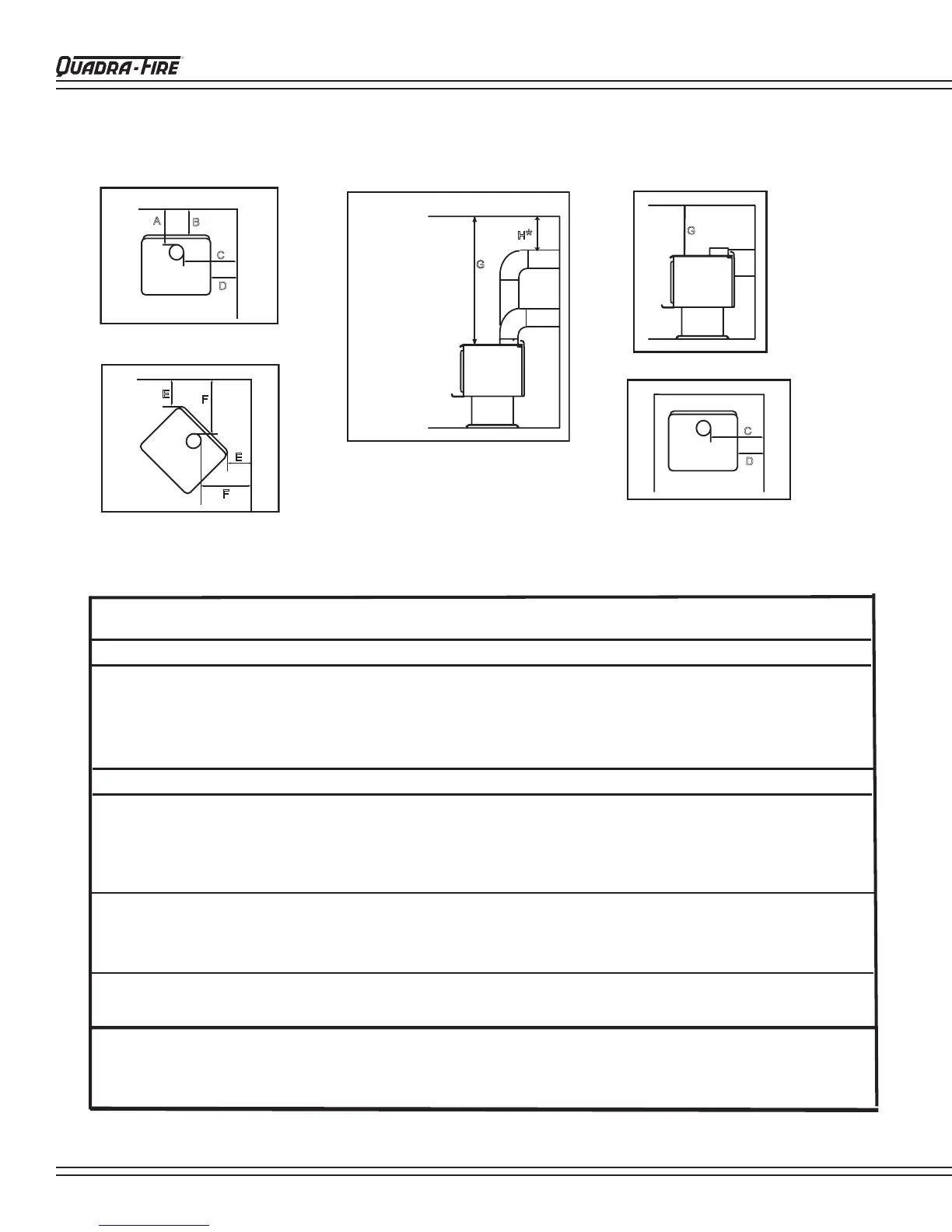

CLEARANCES TO COMBUSTIBLES (UL AND ULC)
A
B
C
D
BACKWALL / SIDEWALL
E
F
E
F
CORNER INSTALLATION
G
H
*
90° OFF TOP
UP & OUT CEILING
CLEARANCE
STOVE TO CEILING
CLEARANCE
C
D
ALCOVE TOP VIEW
G
A
B
ALCOVE SIDE VIEW

Quadra-Fire 2100 Millennium Specifications

General

Type	Wood Stove
Fuel Type	Wood
Maximum Log Length	20 inches
Flue Size	6 inches
Firebox Material	Steel
Blower Included	Optional
Warranty	Limited Lifetime
Finish	Black
