4300 ACT Wood Stove Series
Page 18 250-7061C December 10, 2004
BLOWER SPEED CONTROL
Blower
Mounting
Flange
Outer
Skin
INSTALLATION OF OPTIONAL BLOWER, Part 831-1701
The blower is shipped fully assembled and ready for installation.
N
OTE: When the speed control is turned clockwise, it will click on to high speed. Continue to turn the speed control clockwise
to decrease the speed. At full clockwise, the blower should blow gently, but should not stop.
1. With the unit plugged in, turn the speed control knob to slow (full clockwise).
2. With a small screwdriver, adjust the blower speed by turning the adjustment mechanism through the hole on the side
of the speed control.
3. Adjust the speed so the blower runs slowly, but does not stop. Turn clockwise to slow the blower and counterclockwise
to increase the speed.
*The blower speed control for this unit is adjusted at the factory and normally does not
require further adjustment.
1. Remove the three bolts (1/4”-20 Phillips Head) on the outer skin at the bottom rear of stove.
2. Align holes in mounting flange of blower with bolt holes in stove. Blower should be positioned around bottom of rear
outer skin as shown in drawing below.
3. Re-insert and tighten bolts, securing blower onto outer wall of stove.
Do not remove ground from plug. Plug blower cord into a grounded outlet. Route power cord away from stove in such
a manner to avoid heat from the stove, traffic, or other damage. Do not route cord under or in front of stove.
ADJUSTING THE BLOWER SPEED CONTROL, IF NECESSARY*

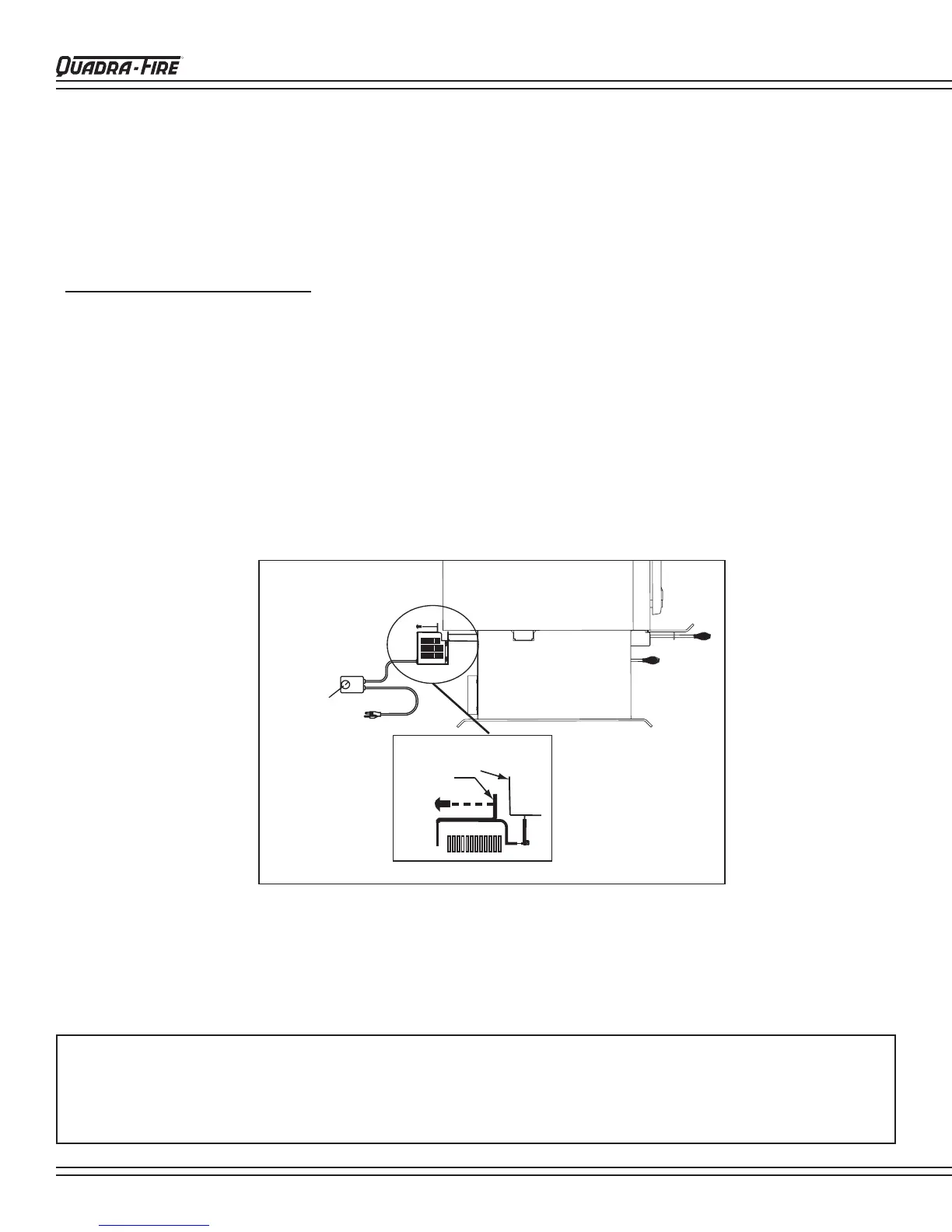

Figure 17A
TOP HEAT SHIELD INSTALLATION, Part: 831-0972
(4300 Millennium Only)
3. Set top heat shield on stove and push down into
“S” clips.
4. Install chimney pipe through the hole in the top
heat shield.
1. Unscrew and remove the rear heat deflector.
2. Attach the two “S” clips to the upper edge of the outer
wall of the stove.
