3
RJ45:
10/100 Ethernet port used to
connect to a home router.
HDMI:
Digital A/V output, used to
connect to a TV via HDMI cable.
AV Out:
SD Analog A/V output, used
to connect to older-style TVs
that do not support HDMI
connections. Ask your installer
for an RCA composite breakout
cable if one was not included.
S/PDIF:
Optical Audio output, used to
connect to external Sound bar
or Surround Sound system.
An optical cable with TOSLINK
connectors is required (not
included).
12V/1.5A In:
DC Power port, used to connect
via the power adapter.
4
5
6
7
8
USB:
This port has an output
power capability of 5V DC
@ 1 amp.
9

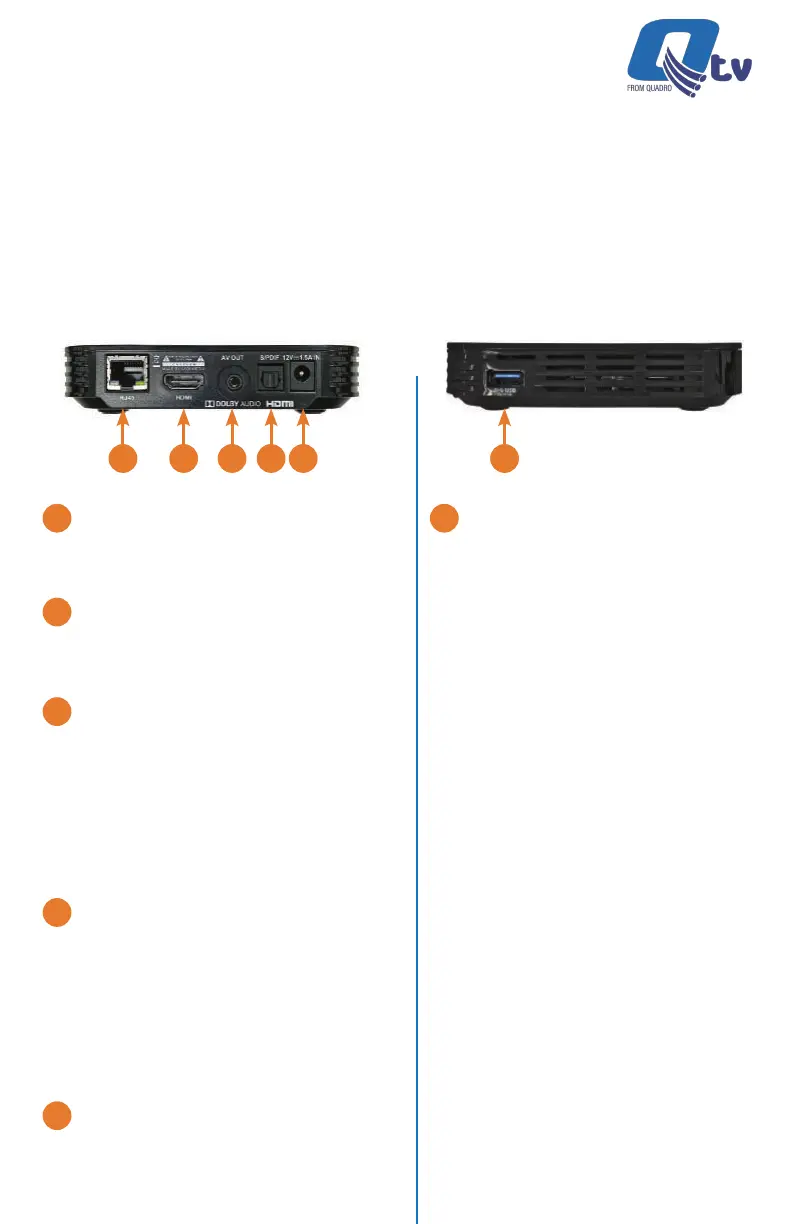

4 5 6 7 8 9
Rear View Side View
