ASSEMBLY
IMPORTANT! Before you assemble the
lawn mower, check all accessories
listed have been supplied. If parts or
accessories are missing contact the Helpline
for advice.

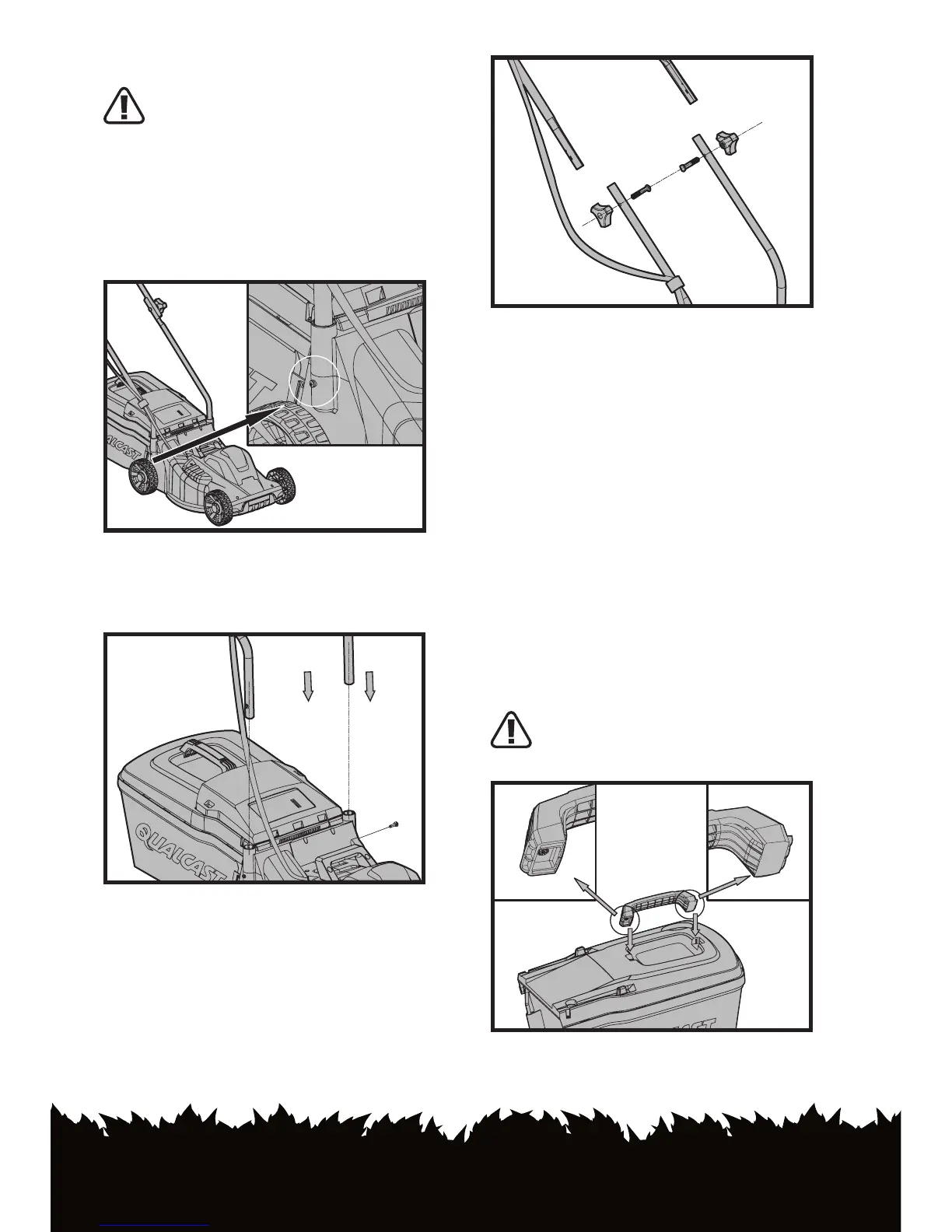

1. FITTING THE HANDLE (See Fig A1, A2, A3)
1) Remove the screws (X 2) on the both side
of poles. (Fig A1)
A1
2) Insert the lower handle (7) into the holes
provided.
3) Secure with the screws provided.(Fig A2)
A2
4) Attach the upper handle (6) with the bolts
and handle knobs (3) to the lower handle
(7).(Fig A3)
A3
NOTE: Ensure the bolts are fully inserted
through the handles before tting the handle
knobs.
Attach the cable clips (2) provided, to the
upper and lower handle. Insert the cable
into the clips ensuring there is enough cable
slack.
2. GRASS COLLECTION BAG ASSEMBLY
Connect the grass box handle to the box top
as shown in Fig B1-B4.
Step1: Press the front of the handle briey.
(Fig B2)
Step2: Then push it forward. (Fig B2)
Step3: Push down the back of the handle.
(Fig B2)
Step4: Clip the 3 plastic clips cover the metal
frame. (Fig B3)
WARNING: Don’t t the handle in
reversed direction. Fit the handle as
shown in Fig B1.
B1
Front part
Back part
